Technical Specifications
| Parameter | Specification |
|---|---|

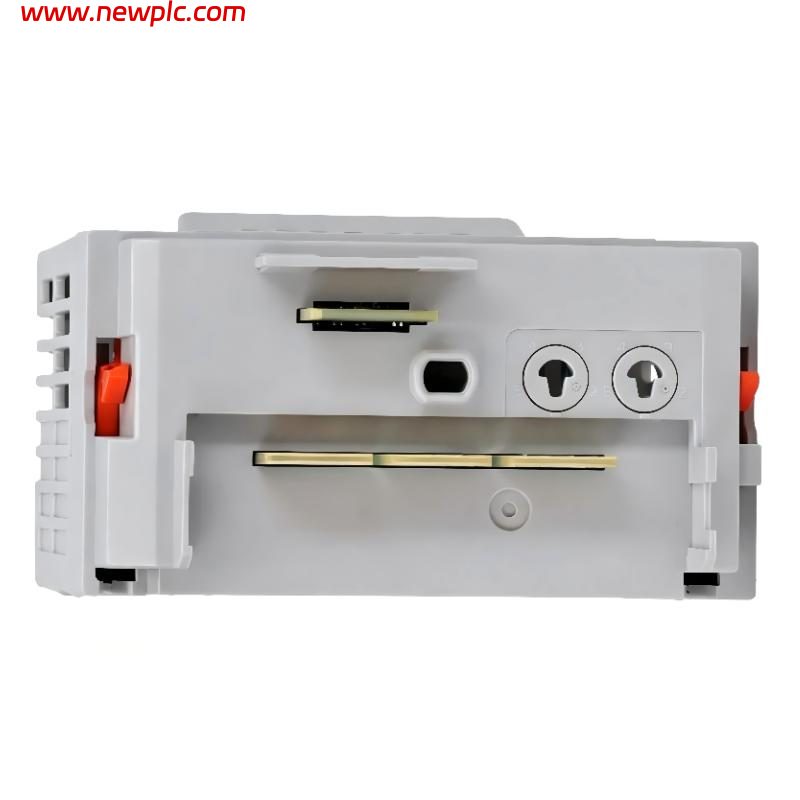

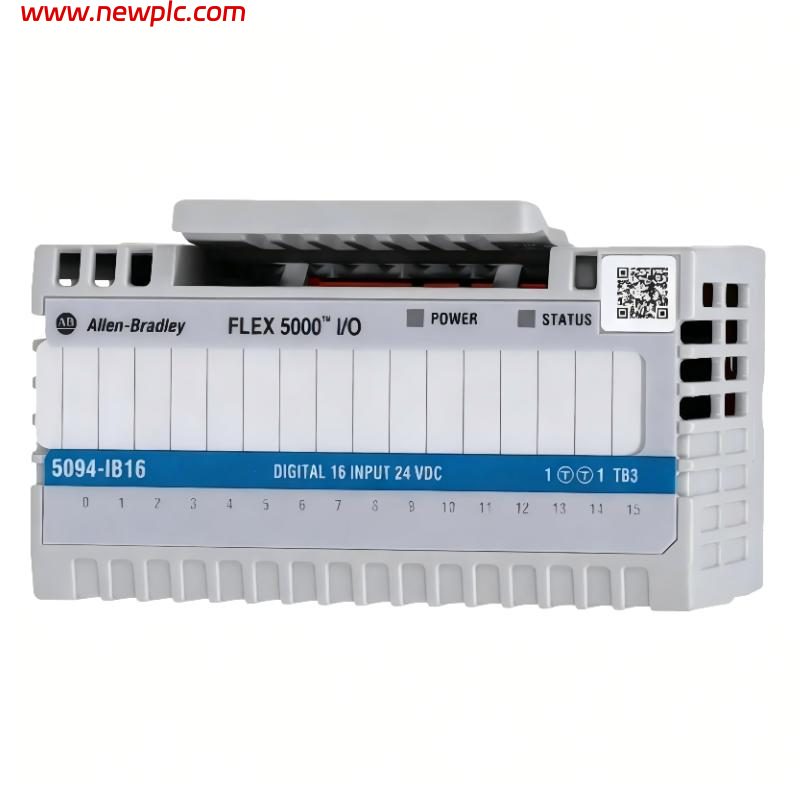

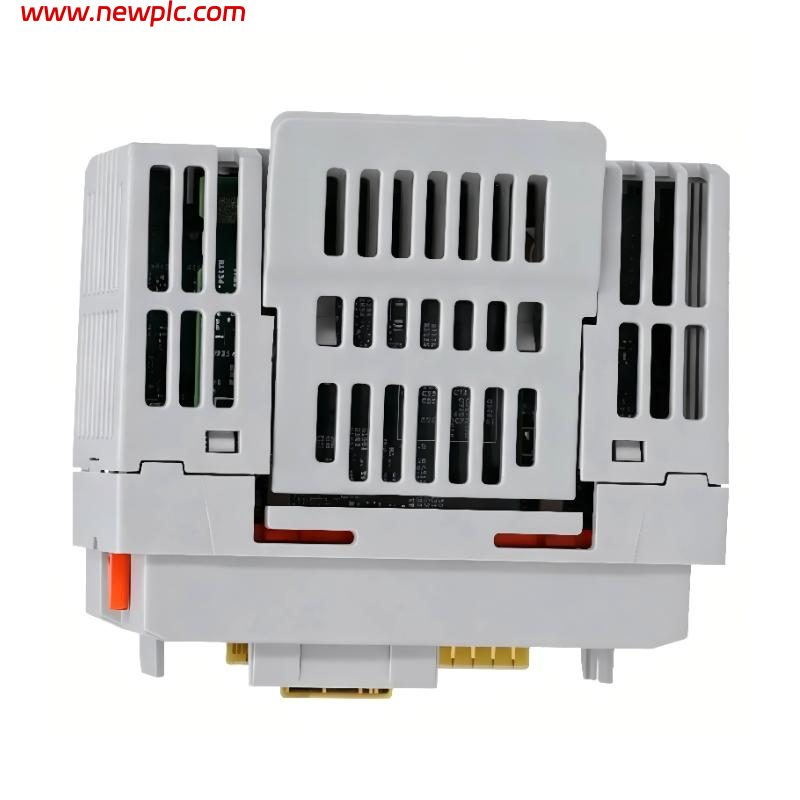

| Product Name | Allen-Bradley FLEX 5000 Digital Input Module |
| Model Number | 5094-IB16 |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | FLEX 5000 I/O |
| Product Type | 16-Point DC Digital Input Module |
| Input Type | 24V DC Sink Input |
| Number of Inputs | 16 Channels |
| Input Voltage Range | 10–32V DC |
| Nominal Input Voltage | 24V DC |
| Input Current | Approx. 6 mA per channel @ 24V DC |
| On-State Voltage | 10–32V DC |
| Off-State Voltage | Max 5V DC |
| Input Delay Time | Approx. 10 µs to 1 ms configurable |
| Isolation Voltage | 250V Continuous |
| Power Consumption | Approx. 2.8 W |
| Thermal Dissipation | Approx. 9.5 BTU/hr |
| Wiring Type | Removable Terminal Block (RTB) |
| Mounting Type | DIN Rail Mount |
| Protection Rating | IP20 / Open Type |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5–95% Non-Condensing |
| Certifications | CE, UL, CSA, ATEX |
| Dimensions | Approx. 153 × 18 × 106 mm |
| Weight | Approx. 0.18–0.22 kg |
| Application | Industrial sensor and switch input monitoring |
FAQ
FAQ
Q1: What is the Allen-Bradley 5094-IB16 used for?
The 5094-IB16 is a FLEX 5000 digital input module used to monitor 24V DC field devices such as sensors, push buttons, limit switches, and auxiliary contacts in industrial automation systems.
Q2: How many input channels does the 5094-IB16 provide?
The module includes 16 independent DC digital input channels.
Q3: What input voltage does the 5094-IB16 support?
It is designed for 24V DC applications with an operating input range of 10–32V DC.
Q4: Is the 5094-IB16 a sinking or sourcing input module?
The module is a sinking input type designed for use with sourcing field devices.
Q5: Does the module support configurable input filtering?
Yes, configurable input delay/filter settings are available to help reduce signal noise and false triggering.
Q6: What systems are compatible with the 5094-IB16?
It is compatible with FLEX 5000 EtherNet/IP systems and Logix-based controllers such as CompactLogix and ControlLogix.
Q7: What are the dimensions and weight of the 5094-IB16?
The approximate dimensions are 153 × 18 × 106 mm, and the module weighs about 0.18–0.22 kg.
Q8: What applications commonly use the 5094-IB16?
It is commonly used in machine automation, packaging systems, conveyor control, material handling, and industrial process monitoring applications.
