Technical Specifications
| Parameter | Specification |
|---|---|

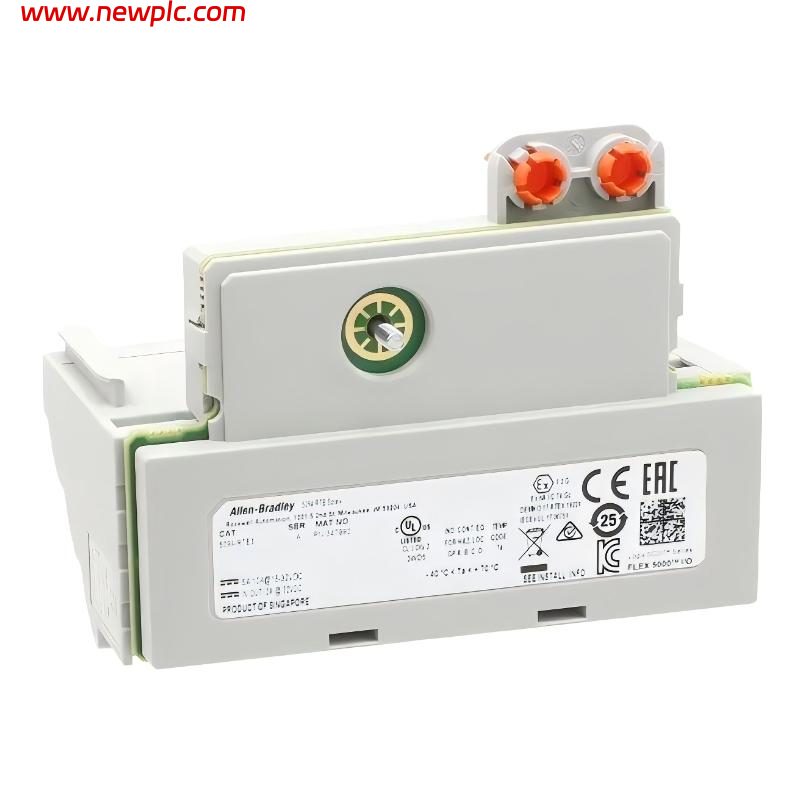

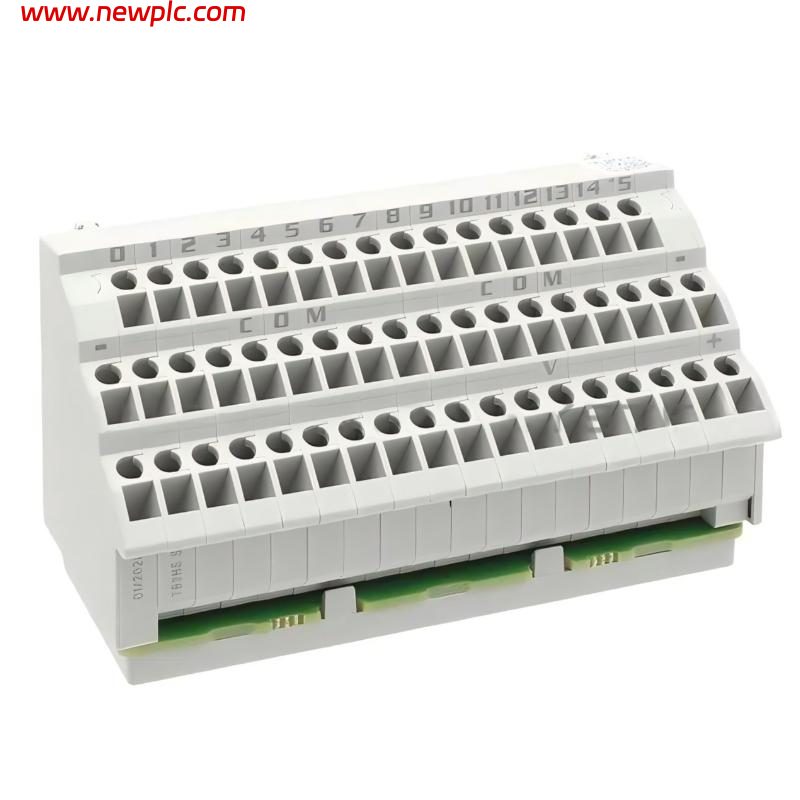

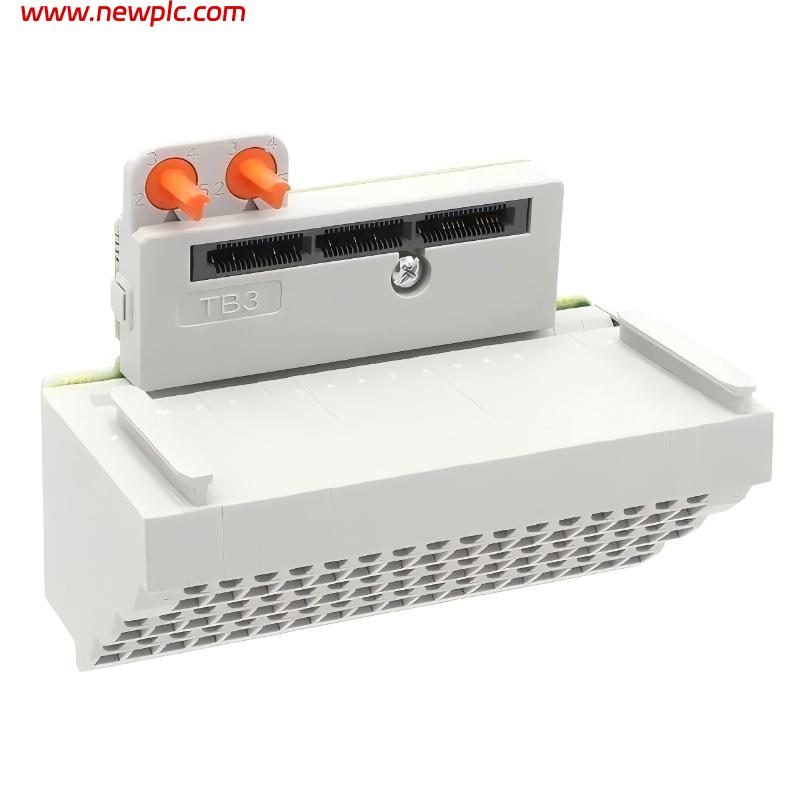

| Product Name | Allen-Bradley FLEX 5000 Removable Terminal Base |
| Model Number | 5094-RTB3 |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | FLEX 5000 I/O |
| Product Type | Removable Terminal Block (RTB) |
| Number of Positions | 3 positions |
| Terminal Style | Screw Clamp / Plug-in Style |
| Wiring Type | Copper field wiring |
| Compatible Wire Size | Typically 22–14 AWG |
| Rated Voltage | Up to 300V AC/DC (application dependent) |
| Rated Current | Approx. 10 A per terminal |
| Compatible Modules | FLEX 5000 adapters and power modules |
| Mounting Method | Direct plug-in connection |
| Installation Type | Removable terminal interface |
| Housing Material | Industrial-grade thermoplastic |
| Protection Rating | IP20 (installed within enclosure) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5–95% Non-Condensing |
| Certifications | CE, UL, CSA |
| Dimensions | Approx. 153 × 18 × 106 mm |
| Weight | Approx. 0.04–0.08 kg |
| Application | Power and signal termination for FLEX 5000 systems |
FAQ
FAQ
Q1: What is the Allen-Bradley 5094-RTB3 used for?
The 5094-RTB3 is a removable terminal block used for wiring connections in Allen-Bradley FLEX 5000 distributed I/O systems.
Q2: What type of connection does the 5094-RTB3 use?
It uses a plug-in terminal block design with screw-clamp wiring connections for secure industrial installation.
Q3: How many terminal positions are available on the 5094-RTB3?
The terminal block provides 3 wiring positions for power or signal connections.
Q4: Is the 5094-RTB3 a powered module?
No, it is a passive accessory component and does not contain electronics or active circuitry.
Q5: Which systems are compatible with the 5094-RTB3?
It is designed for use with FLEX 5000 I/O systems and compatible Allen-Bradley distributed automation architectures.
Q6: Can the 5094-RTB3 be reused during maintenance?
Yes, the removable design allows technicians to disconnect and reuse the RTB during servicing or module replacement.
Q7: What are the dimensions and weight of the 5094-RTB3?
The approximate dimensions are 153 × 18 × 106 mm, and the unit weighs about 0.04–0.08 kg.
Q8: Why are removable terminal blocks important in industrial systems?
RTBs simplify maintenance, speed up module replacement, reduce wiring errors, and improve serviceability in industrial control panels.
