Technical Specifications
| Parameter | Specification |
|---|---|

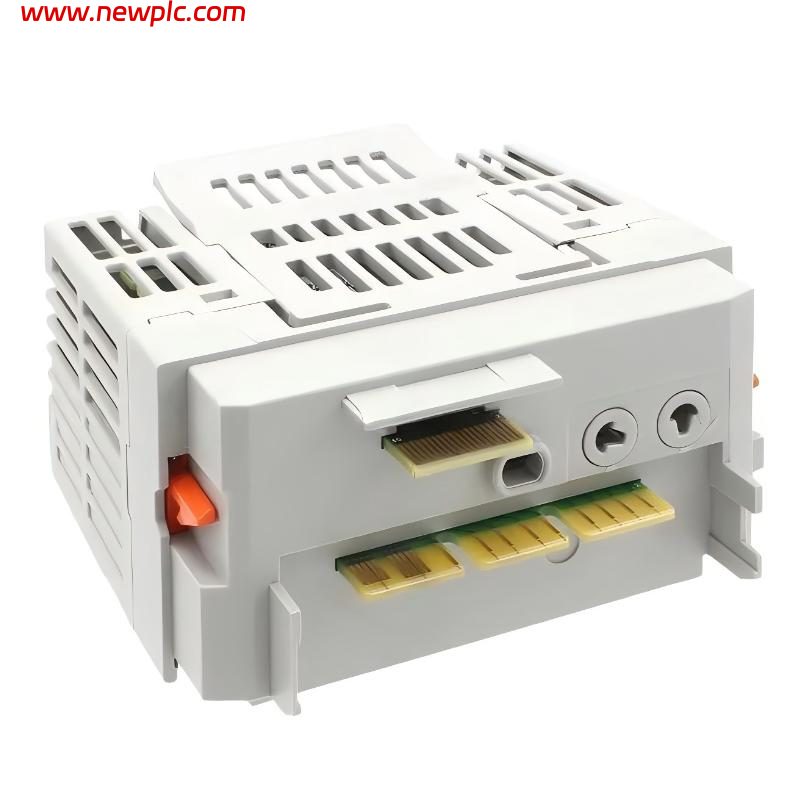

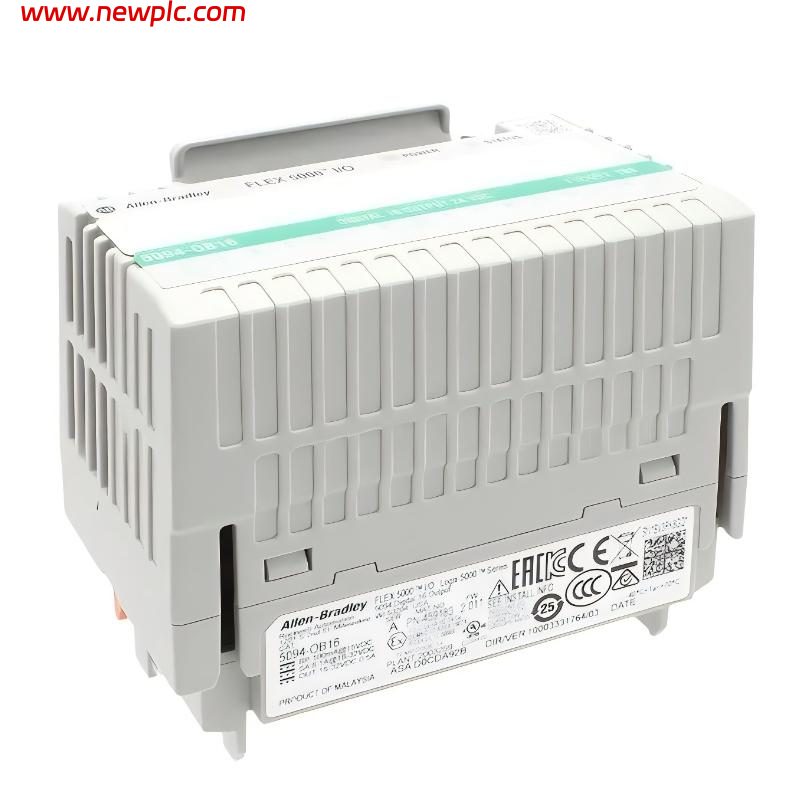

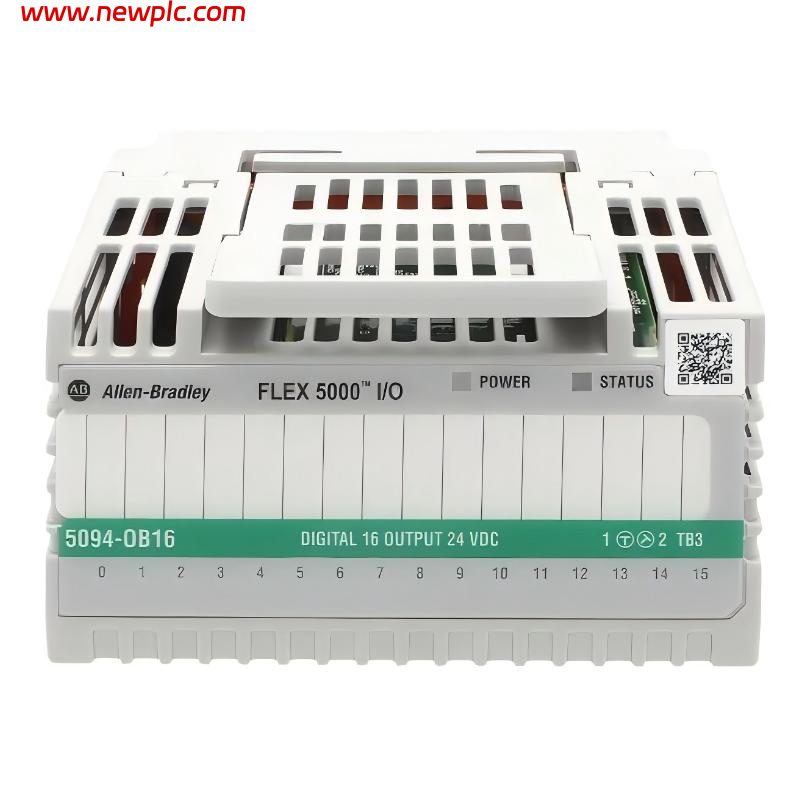

| Product Name | Allen-Bradley FLEX 5000 Digital Output Module |
| Model Number | 5094-OB16 |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | FLEX 5000 I/O |
| Product Type | 16-Point DC Digital Output Module |
| Output Type | 24V DC Sourcing Output |
| Number of Outputs | 16 Channels |
| Output Voltage Range | 10–32V DC |
| Nominal Output Voltage | 24V DC |
| Continuous Current per Channel | 0.5 A |
| Total Module Current | Approx. 8 A maximum |
| Output Delay Time | Approx. 10 µs to 1 ms configurable |
| Short Circuit Protection | Electronic protection supported |
| Overload Protection | Supported |
| Isolation Voltage | 250V Continuous |
| Power Consumption | Approx. 3.5 W |
| Thermal Dissipation | Approx. 11.9 BTU/hr |
| Wiring Type | Removable Terminal Block (RTB) |
| Mounting Type | DIN Rail Mount |
| Communication | FLEX 5000 high-speed backplane |
| Protection Rating | IP20 / Open Type |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5–95% Non-Condensing |
| Certifications | CE, UL, CSA, ATEX |
| Dimensions | Approx. 153 × 18 × 106 mm |
| Weight | Approx. 0.18–0.23 kg |
| Application | Industrial DC output control for actuators and field devices |
FAQ
FAQ
Q1: What is the Allen-Bradley 5094-OB16 used for?
The 5094-OB16 is a FLEX 5000 digital output module designed to control 24V DC field devices such as solenoids, relays, indicator lamps, and contactors in industrial automation systems.
Q2: How many output channels does the 5094-OB16 provide?
The module includes 16 independent DC digital output channels.
Q3: What type of outputs does the 5094-OB16 use?
It provides sourcing transistor outputs for 24V DC industrial control applications.
Q4: What is the maximum output current per channel?
Each output channel can typically supply up to 0.5 A continuous current depending on system conditions.
Q5: Does the 5094-OB16 include protection features?
Yes, the module includes electronic short-circuit and overload protection to help protect outputs from wiring faults.
Q6: What systems are compatible with the 5094-OB16?
It is compatible with FLEX 5000 EtherNet/IP distributed I/O systems and Logix-based controllers such as CompactLogix and ControlLogix.
Q7: What are the dimensions and weight of the 5094-OB16?
The approximate dimensions are 153 × 18 × 106 mm, and the module weighs about 0.18–0.23 kg.
Q8: What industrial applications commonly use the 5094-OB16?
The module is commonly used in conveyor systems, packaging machinery, mat
