Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | Stratix 5200 |

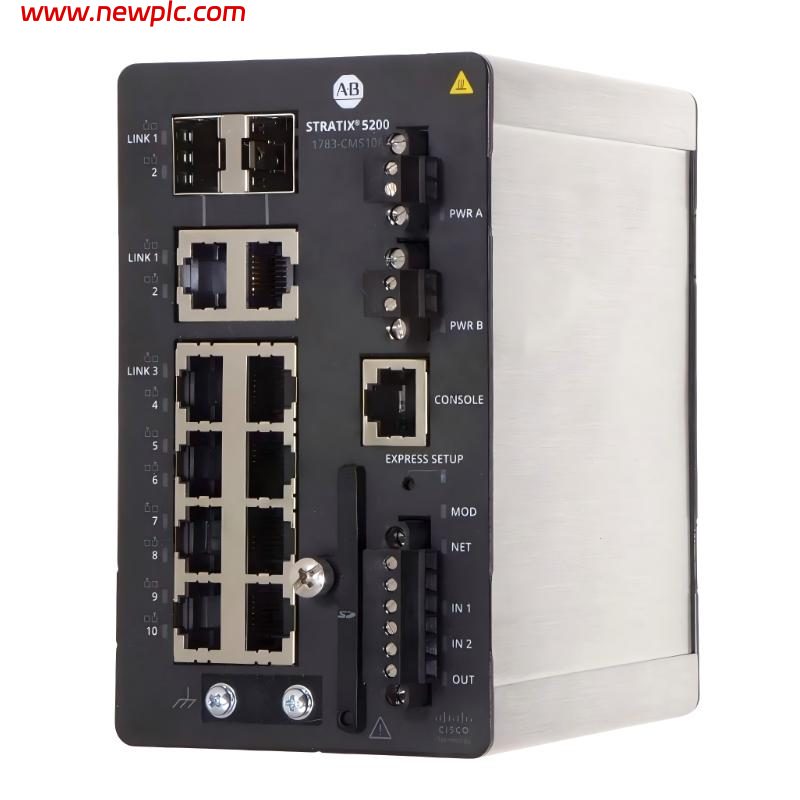

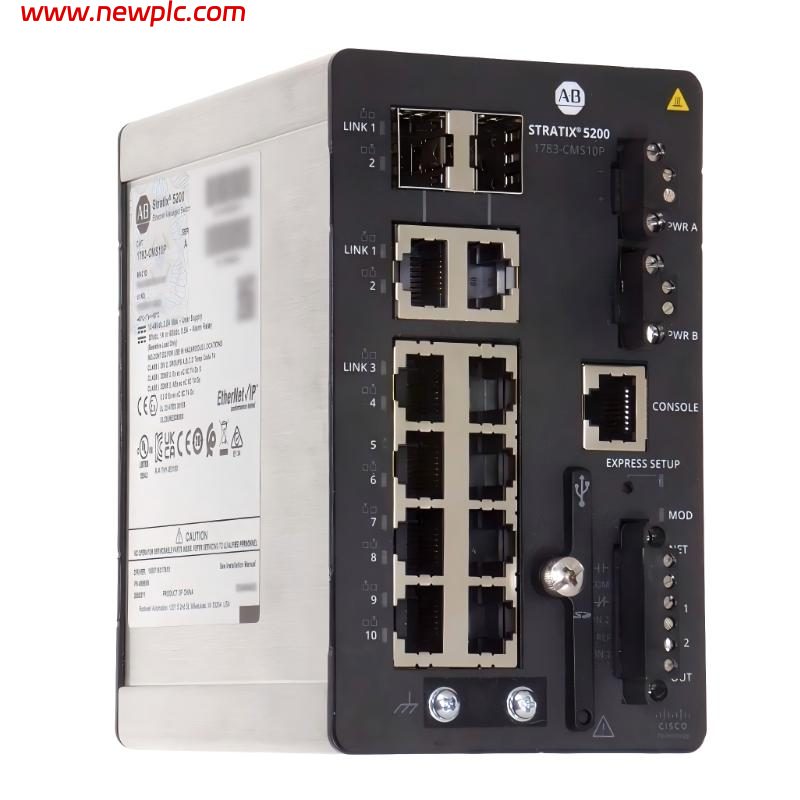

| Model Number | 1783-CMS10P |
| Product Type | Managed Industrial Ethernet Switch |
| Switch Type | Layer 2 Managed Switch |
| Firmware Version | Full Firmware (Full FW) |
| Ethernet Ports | 8 × 10/100/1000 RJ45 Copper Ports |
| Combo Ports | 2 × Combo Gigabit Ports (Copper/Fiber) |
| Network Speed | Gigabit Ethernet |
| Supported Protocols | EtherNet/IP, IEEE 802.1x, STP, RSTP, SNMP, DHCP, IGMP |
| Management Interface | Web GUI, CLI, FactoryTalk Integration |
| Redundancy Support | Redundant Power Inputs |
| Precision Time Protocol | IEEE 1588 PTP |
| Power Input Range | 12…48V DC |
| Maximum Power Consumption | Approx. 17.7 W |
| Current Consumption | 2.0 A Max @ 12V DC |

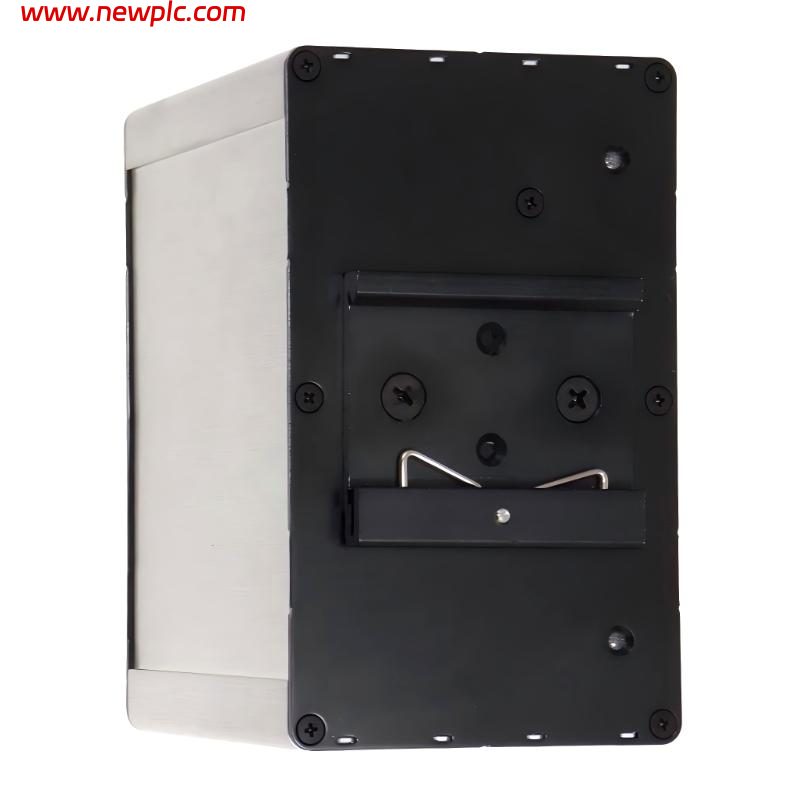

| Mounting Type | DIN Rail Mount |
| Enclosure Rating | IP30 |
| Operating Temperature | -40°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Certifications | UL, CE, IEC 61850-3, IEEE 1613 |
| Lifecycle Status | Active |
| Actual Dimensions (H × W × D) | Approx. 127 × 76.2 × 110 mm |
| Actual Weight | Approx. 0.86 kg |
| Typical Applications | Industrial Ethernet Networks, PLC Communication, Factory Automation, Process Control |
FAQ
FAQ
Q1: What is the Allen-Bradley 1783-CMS10P used for?
A1: The 1783-CMS10P is a Stratix 5200 managed industrial Ethernet switch used for high-speed industrial networking and EtherNet/IP communication in automation systems.
Q2: How many ports does the 1783-CMS10P provide?
A2: The switch includes 8 Gigabit copper RJ45 ports and 2 combo Gigabit copper/fiber ports.
Q3: Is the 1783-CMS10P a managed switch?
A3: Yes. It is a fully managed Layer 2 industrial Ethernet switch with web GUI and Cisco IOS XE-based management functions.
Q4: What is the power input range of the 1783-CMS10P?
A4: The switch operates on 12…48V DC redundant power input.
Q5: What are the actual dimensions of the 1783-CMS10P?
A5: The actual switch dimensions are approximately 127 × 76.2 × 110 mm (H × W × D), excluding connectors and DIN rail bracket.
Q6: What is the actual weight of the 1783-CMS10P?
A6: The approximate product weight is 0.86 kg (1.9 lb).
Q7: What environmental rating does the 1783-CMS10P have?
A7: The switch is rated IP30 and designed for industrial environments with an operating temperature range of -40°C to +60°C.
Q8: What are common applications for the 1783-CMS10P?
A8: Common applications include factory automation, industrial Ethernet backbone networks, PLC communications, machine control systems, and process automation networks.
