Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | PowerFlex 70 |

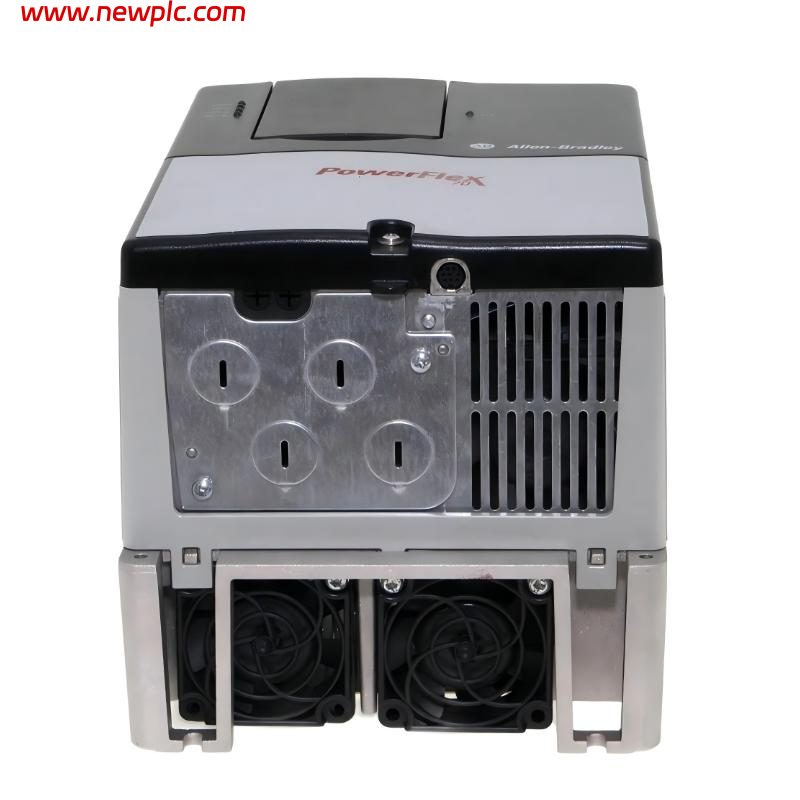

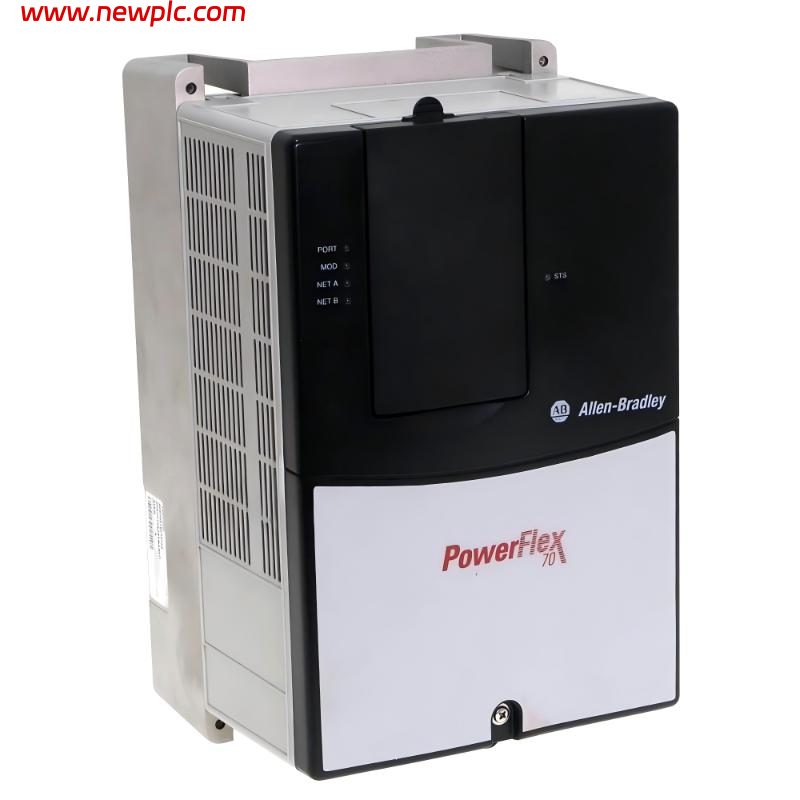

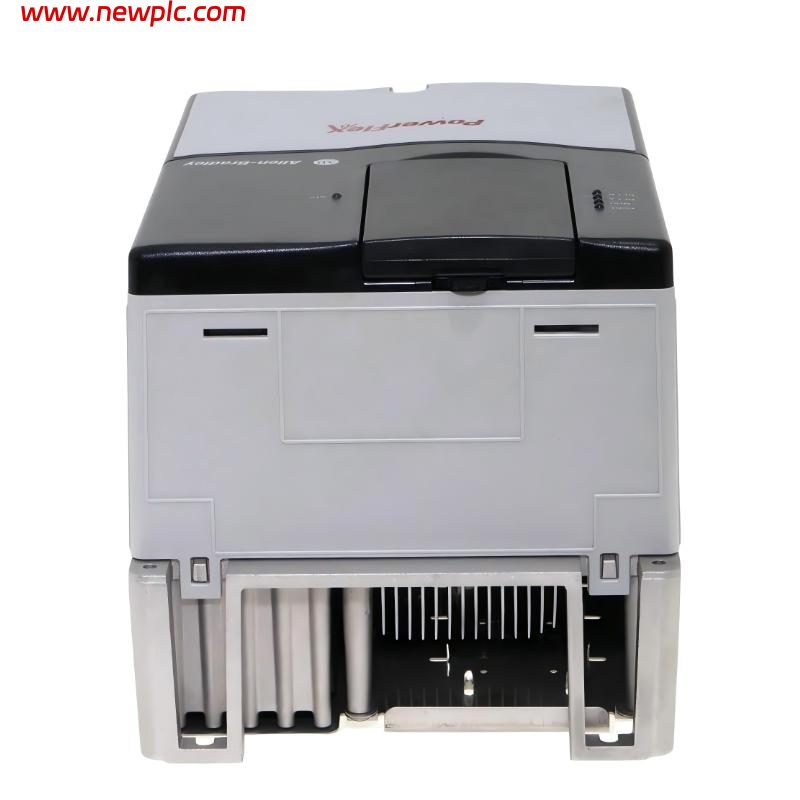

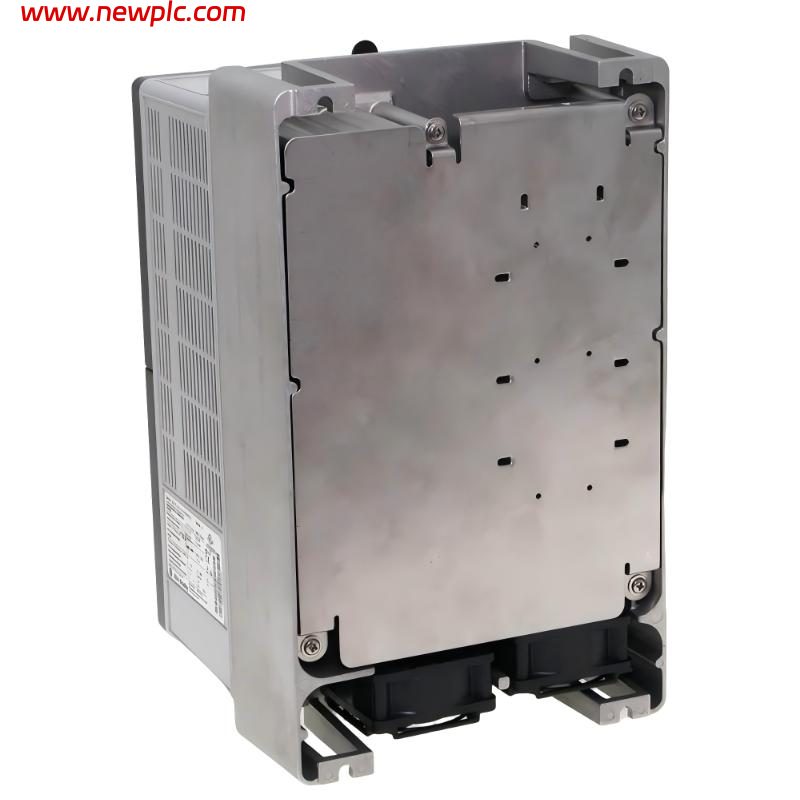

| Model Number | 20AC015A0AYNANC0 |
| Product Type | AC Variable Frequency Drive (VFD) |
| Drive Type | Adjustable Frequency AC Drive |
| Input Voltage | 480V AC |
| Input Phase | 3-Phase |
| Output Voltage | 0…480V AC |
| Output Phase | 3-Phase |
| Rated Output Current | 15 A |
| Normal Duty Power Rating | 7.5 kW / 10 HP |
| Heavy Duty Power Rating | 5.5 kW / 7.5 HP |
| Input Frequency | 48…63 Hz |
| Output Frequency Range | 0…400 Hz |
| Enclosure Rating | IP20 / NEMA Type Open |
| HIM Interface | No HIM Included |
| Communication Interface | Standard DPI Communication |
| EMC Filtering | No Internal Filter |
| Brake Transistor | No |
| Control Method | V/Hz and Sensorless Vector Control |
| Mounting Type | Panel Mount |
| Cooling Method | Forced Air Cooling |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Certifications | UL, CE, CSA |
| Lifecycle Status | Active / Legacy Support Depending on Region |
| Actual Dimensions (H × W × D) | Approx. 350 × 190 × 220 mm |
| Actual Weight | Approx. 7.5 kg |
| Typical Applications | Pumps, Fans, Conveyors, Compressors, Industrial Automation |
FAQ
FAQ
Q1: What is the Allen-Bradley 20AC015A0AYNANC0 used for?
A1: The 20AC015A0AYNANC0 is a PowerFlex 70 AC variable frequency drive used to control the speed and torque of three-phase AC motors in industrial automation systems.
Q2: What is the power rating of the 20AC015A0AYNANC0?
A2: The drive is rated for 7.5 kW (10 HP) normal duty and 5.5 kW (7.5 HP) heavy duty operation.
Q3: What input voltage does the 20AC015A0AYNANC0 require?
A3: The drive operates on 480V AC three-phase input power.
Q4: Does the 20AC015A0AYNANC0 include an internal brake transistor?
A4: No. This model does not include an internal brake transistor.
Q5: Which motor control methods are supported by the 20AC015A0AYNANC0?
A5: The drive supports V/Hz control and sensorless vector motor control.
Q6: What are the actual dimensions of the 20AC015A0AYNANC0?
A6: The approximate dimensions are 350 × 190 × 220 mm (H × W × D).
Q7: What is the actual weight of the 20AC015A0AYNANC0?
A7: The approximate weight is 7.5 kg.
Q8: What are common applications for the 20AC015A0AYNANC0?
A8: Common applications include pumps, fans, conveyors, compressors, packaging equipment, and general industrial motor speed control systems.
