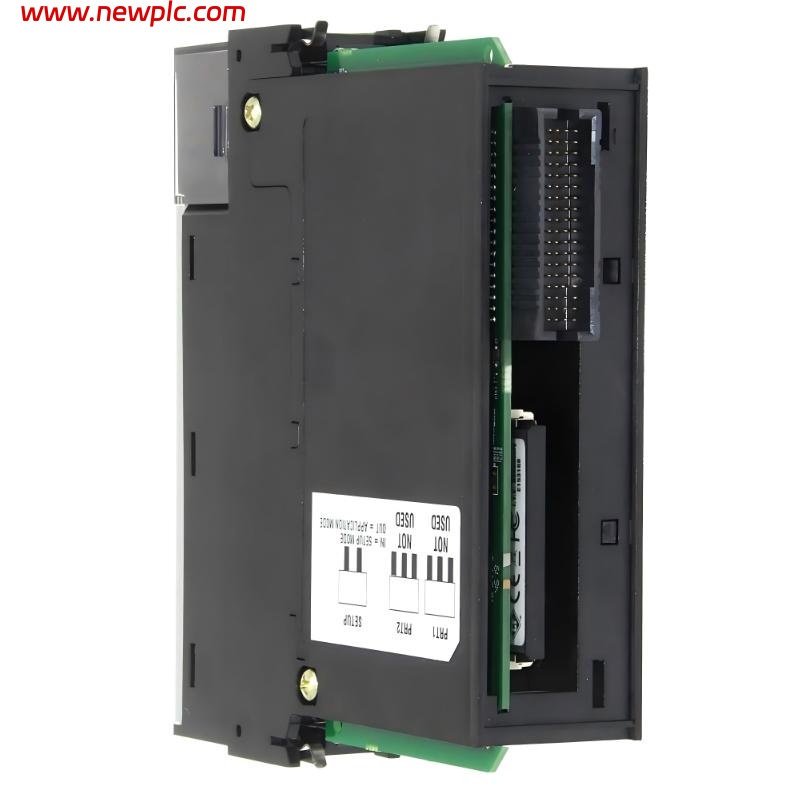

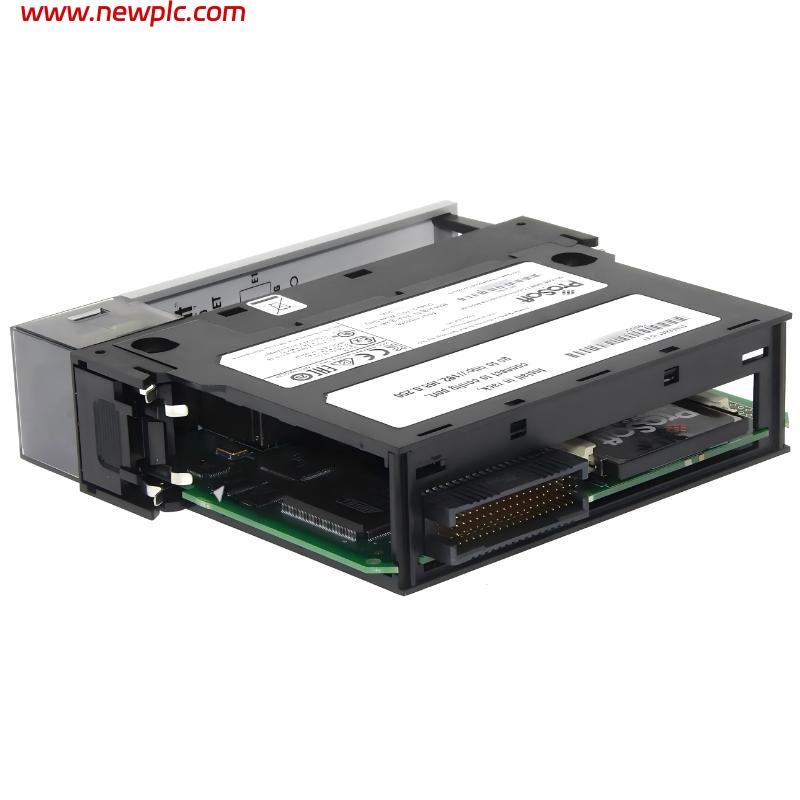

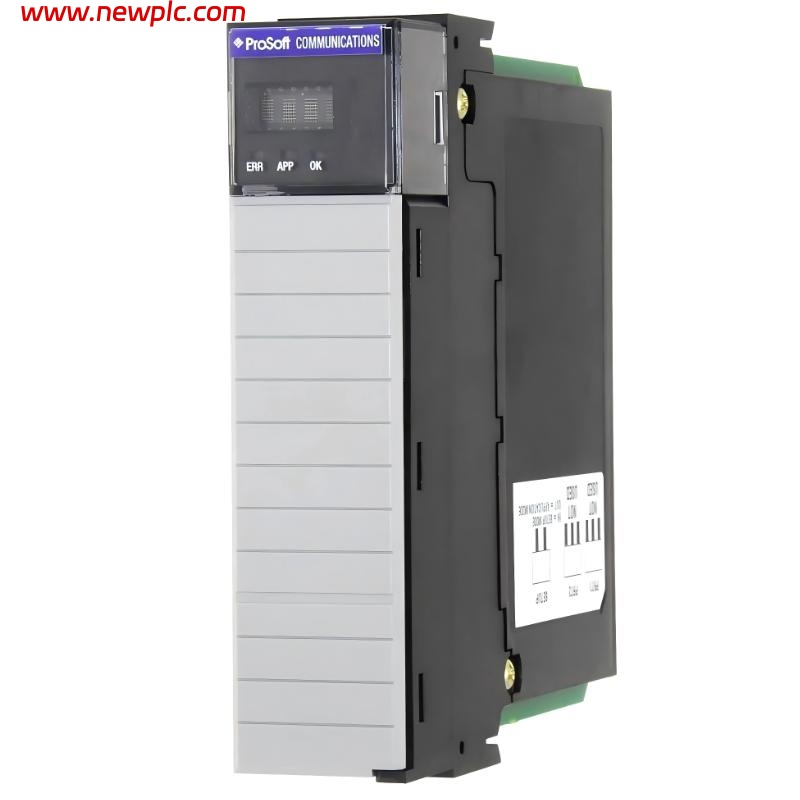

Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | ProSoft ControlLogix Communication Module |
| Model Number | MVI56E-MNET |
| Product Type | Modbus TCP/IP Client/Server Communication Module |
| Platform Compatibility | Allen-Bradley ControlLogix (1756 chassis) |
| Function | Gateway between ControlLogix PLC and Modbus TCP/IP devices |
| Protocol Support | Modbus TCP/IP (Client & Server modes) |
| Ports | 1 × Ethernet port (10/100 Mbps) |
| Backplane Slot | Single-slot 1756 ControlLogix chassis module |
| Data Capacity | Up to 10,000 16-bit registers (user-definable mapping) |
| Command Capacity | Up to 325 Modbus commands per port |
| Configuration Method | Studio 5000 Add-On Instruction (AOI) |
| Diagnostics | Built-in web diagnostics + LED status indicators |
| Network Features | CIPconnect enabled, remote diagnostics via Ethernet |
| Power Consumption | Approx. 800 mA @ 5 VDC (backplane load) |
| Isolation | Backplane isolation + Ethernet isolation |
| Mounting Type | ControlLogix rack-mounted module |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions | Approx. 138 × 87 × 160 mm |
| Weight | Approx. 0.9–2.0 kg (shipping varies) |
FAQ
FAQ
Q1. What is the MVI56E-MNET used for?
It is used to connect a ControlLogix PLC to Modbus TCP/IP devices for industrial communication and data exchange.
Q2. What is the difference between MNET and MCM?
MNET supports Modbus TCP/IP (Ethernet-based), while MCM supports Modbus RTU/ASCII (serial communication).
Q3. Does it work as a client or server?
It supports both Modbus TCP Client and Server modes.
Q4. How is it configured in a PLC?
It is configured using an Add-On Instruction (AOI) in Studio 5000, with all settings stored in the PLC project.
Q5. How many Modbus commands can it handle?
Up to 325 commands per Ethernet port.
Q6. Can it be accessed remotely?
Yes, it supports CIPconnect for remote configuration and diagnostics over Ethernet networks.
Q7. What PLC platform does it require?
It is designed for Rockwell Automation ControlLogix systems using the 1756 chassis.
Q8. What is the weight of the module?
Approximately 0.9–2.0 kg depending on packaging and revision.
