Technical Specifications
| Parameter | Specification |
|---|---|

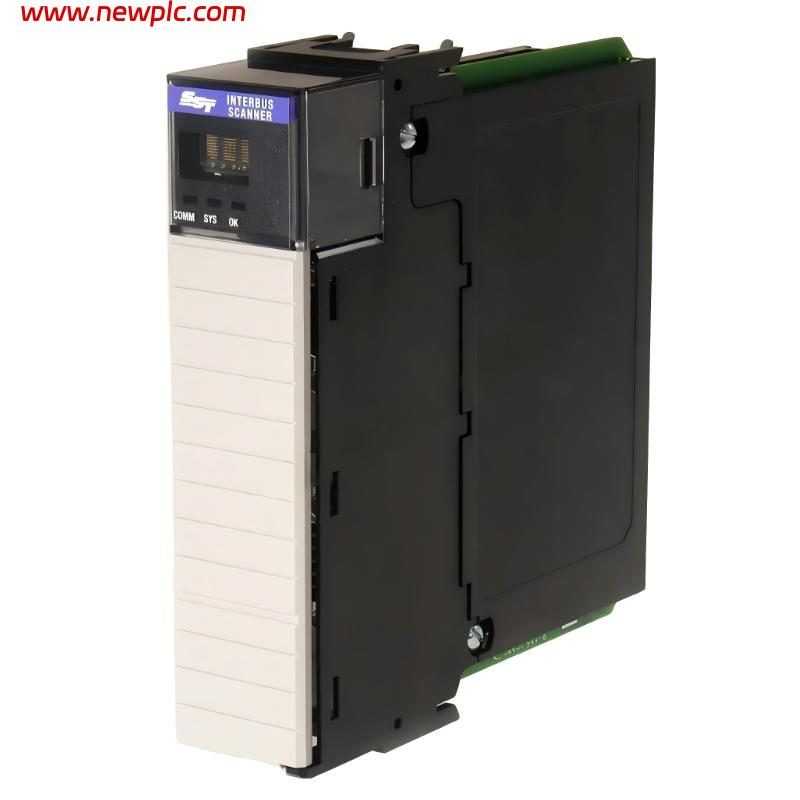

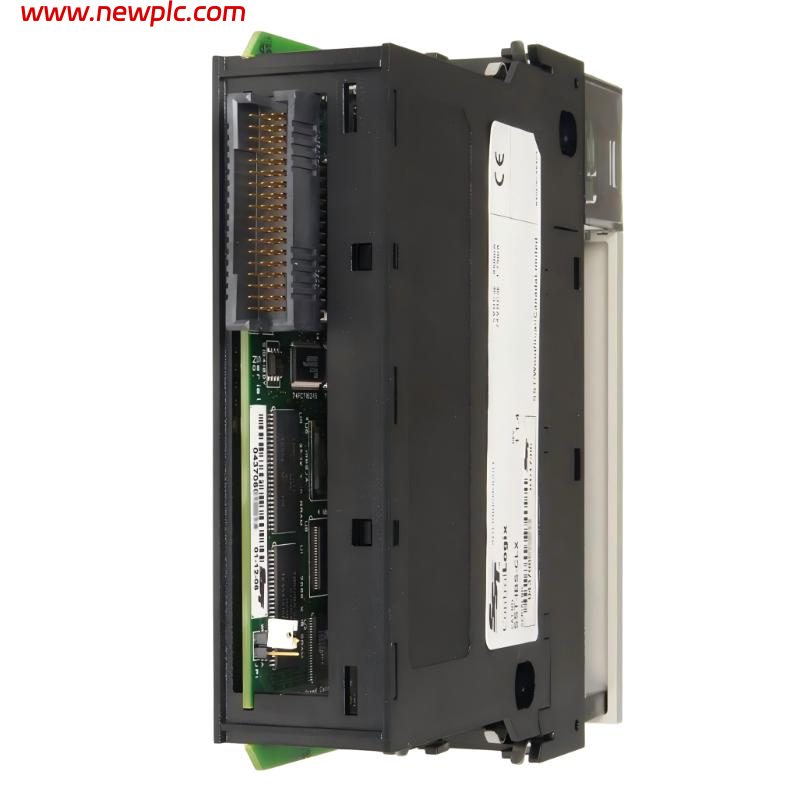

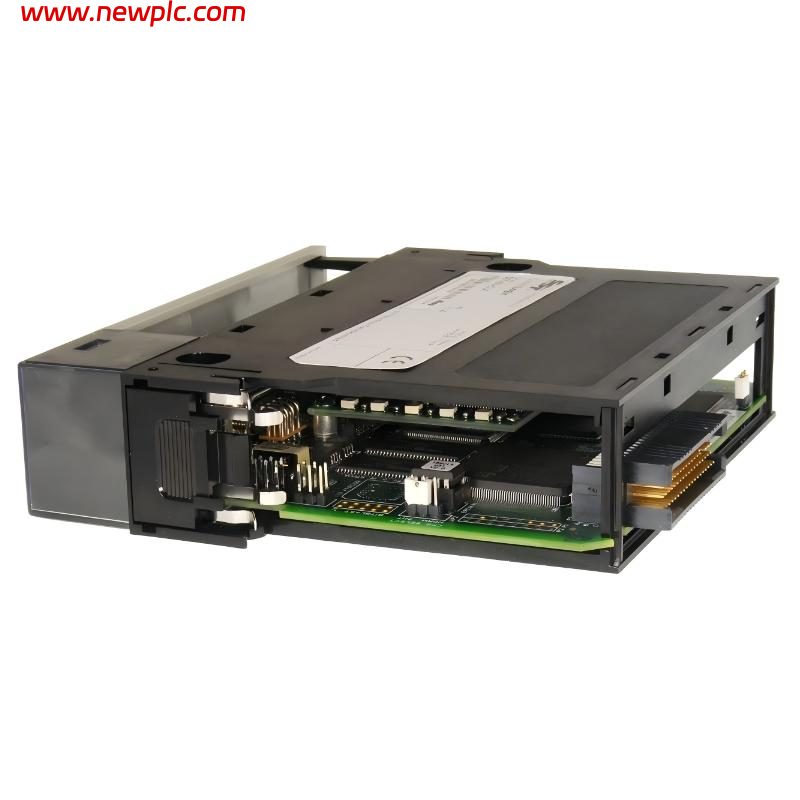

| Product Name | INTERBUS Master Scanner Module |
| Model Number | SST-IBS-CLX |
| Manufacturer | Woodhead / Molex (ProSoft Technology legacy SST series) |
| Platform | Allen-Bradley ControlLogix (1756 chassis) |
| Module Type | In-chassis INTERBUS scanner (Master) |
| Communication Protocol | INTERBUS (Master) |
| Configuration Port | 1 × RS-232 (CONFIG port) |
| Fieldbus Port | 1 × INTERBUS network interface |
| Backplane Current | ~800 mA @ 5 V DC |
| Slot Requirement | 1 × 1756 ControlLogix slot |
| Data Handling | Cyclic I/O data + parameter/diagnostic exchange |
| Network Capability | INTERBUS remote I/O + intelligent device support |
| Configuration Tool | RSLogix 5000 / Studio 5000 + module configuration utility |
| Diagnostics | LED status indicators + PLC diagnostic tags |
| Function Mode | Master scanner for INTERBUS network |
| Module Status | Discontinued (legacy product) |
| Dimensions | Approx. 263 × 58 × 28 mm |
| Weight | Approx. 0.9–4.3 kg (varies by source/revision) |
| Operating Temperature | ~0°C to 50°C (typical industrial range) |
| Storage Temperature | -40°C to 70°C |
| Function | INTERBUS-to-ControlLogix communication interface |
| System Role | Bridges INTERBUS fieldbus devices into Rockwell ControlLogix system |
FAQ
FAQ
Q1: What is the SST-IBS-CLX module?
It is a ControlLogix in-chassis communication module that functions as an INTERBUS Master scanner for integrating INTERBUS networks into Rockwell PLC systems.
Q2: Which PLC platform does it support?
It is designed for Allen-Bradley ControlLogix systems using the 1756 chassis.
Q3: What protocol does it use?
It uses the INTERBUS fieldbus protocol as a Master device.
Q4: Is this module still in production?
No, it is a discontinued legacy product.
Q5: What is its main function?
It scans INTERBUS remote I/O devices and exchanges cyclic data with the ControlLogix PLC.
Q6: What ports does it have?
It includes one INTERBUS fieldbus port and one RS-232 configuration port.
Q7: What is it typically used for?
It is used in legacy automation systems involving INTERBUS remote I/O, drives, and distributed control devices.
Q8: Why is it still used today?
Because many industrial plants still operate INTERBUS networks, and this module allows them to be integrated into modern ControlLogix systems without replacing existing field devices.
