Technical Specifications
| Parameter | Specification |
|---|---|

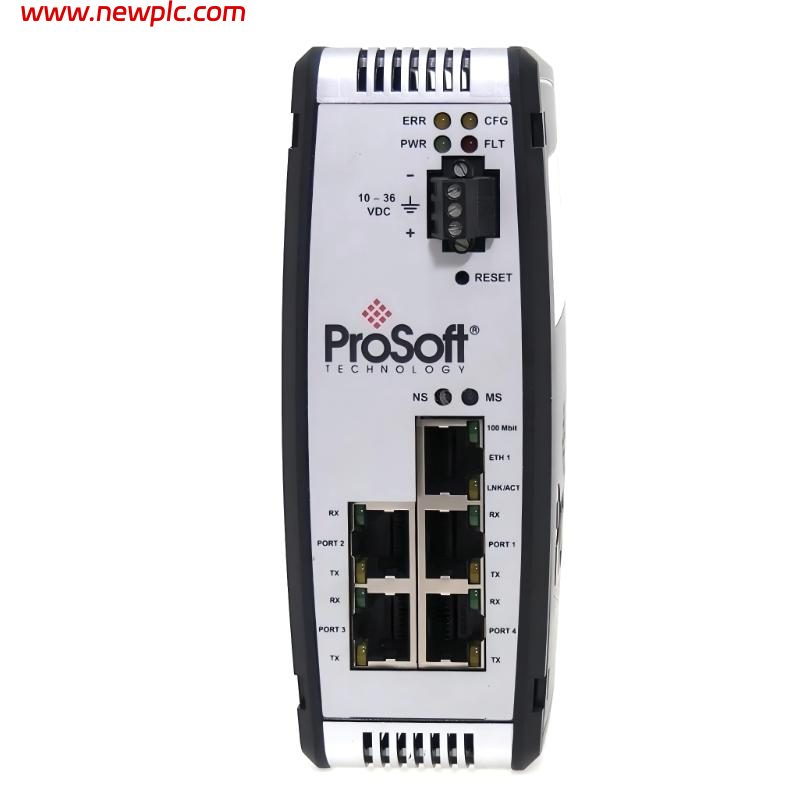

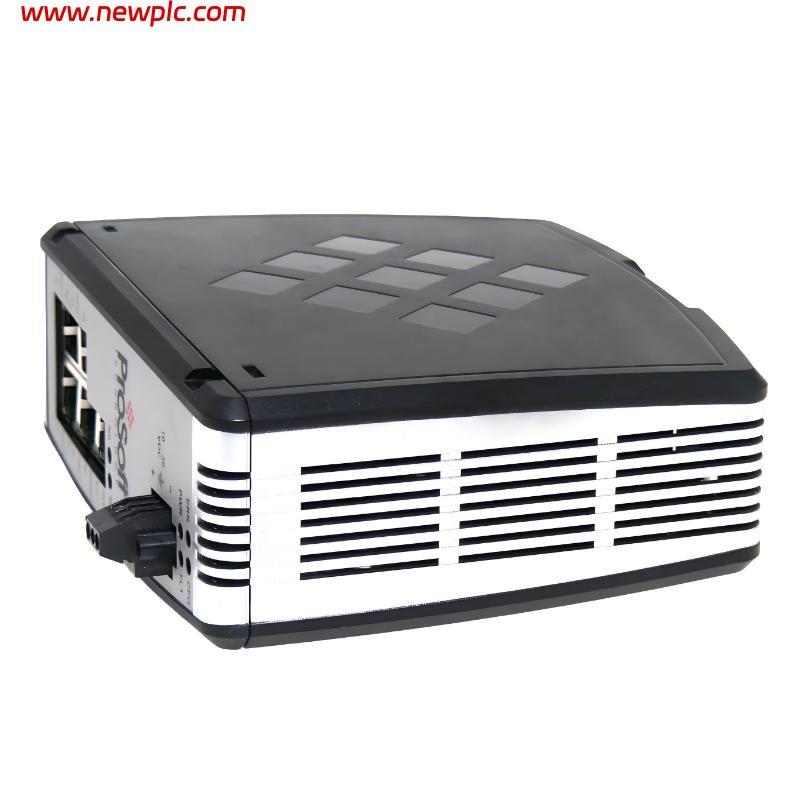

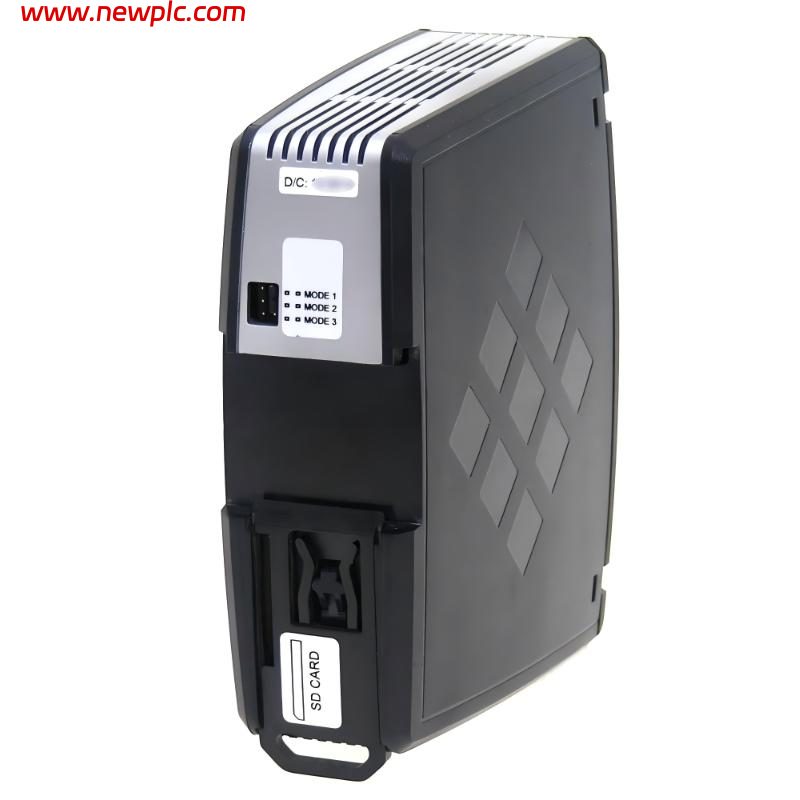

| Product Name | Modbus TCP/IP to Modbus Serial Gateway (4-Port) |
| Model Number | PLX31-MBTCP-MBS4 |
| Manufacturer | ProSoft Technology (Rockwell Automation Encompass Partner) |
| Product Type | Industrial protocol conversion gateway |
| Communication Protocols | Modbus TCP/IP ↔ Modbus RTU / ASCII |
| Ethernet Port | 1 × RJ45, 10/100 Mbps |
| Serial Ports | 4 × isolated serial ports (RS-232 / RS-485 / RS-422 configurable) |
| Power Supply | 10–36 VDC (24 VDC nominal) |
| Current Consumption | ~300 mA nominal, up to ~610 mA max |
| Data Capacity | Up to ~4000–10,000 word database (configuration dependent) |
| Supported Devices | Up to ~400 Modbus serial devices (via multi-port architecture) |
| Client Capability | Multiple Modbus TCP clients |
| Server Capability | Multiple Modbus TCP servers |
| Configuration Tool | ProSoft Configuration Builder (PCB) |
| Diagnostics | LED status indicators + network diagnostics |
| Configuration Access | Ethernet-based remote configuration |
| SD Card Support | Yes (for configuration backup/recovery) |
| Isolation | 1500 Vrms Ethernet isolation / 2500 Vrms serial isolation |
| Mounting Type | DIN rail mount |
| Dimensions | Approx. 136.7 × 50.5 × 111.3 mm |
| Weight | ~0.5–2.5 kg (varies by revision and listing source) |
| Operating Temperature | -25°C to 70°C |
| Storage Temperature | -40°C to 80°C |
| Humidity | 5–95% non-condensing |
| Function | High-density Modbus TCP ↔ serial network gateway |
| System Role | Multi-port industrial communication bridge |
FAQ
FAQ
Q1: What is the PLX31-MBTCP-MBS4?
It is a ProSoft protocol gateway that converts Modbus TCP/IP to Modbus RTU/ASCII and provides four independent serial communication ports.
Q2: What is its main function?
It enables communication between Ethernet-based Modbus systems and multiple serial Modbus devices in industrial automation networks.
Q3: How many serial devices can it support?
It can support up to approximately 400 Modbus serial devices depending on network architecture and configuration.
Q4: What protocols does it support?
It supports Modbus TCP/IP, Modbus RTU, and Modbus ASCII.
Q5: How many serial ports does it have?
It has 4 isolated serial ports (RS-232 / RS-485 / RS-422 configurable).
Q6: What is the power requirement?
It operates on 10–36 VDC (24 VDC nominal) industrial power supply.
Q7: What is it typically used for?
It is used in SCADA systems, power monitoring, water treatment, oil & gas, and large-scale industrial Modbus networks.
Q8: Why choose this 4-port gateway?
Because it reduces hardware count and wiring complexity by allowing multiple independent serial Modbus networks to be managed from a single Ethernet gateway.
