Technical Specifications
| Parameter | Specification |
|---|---|

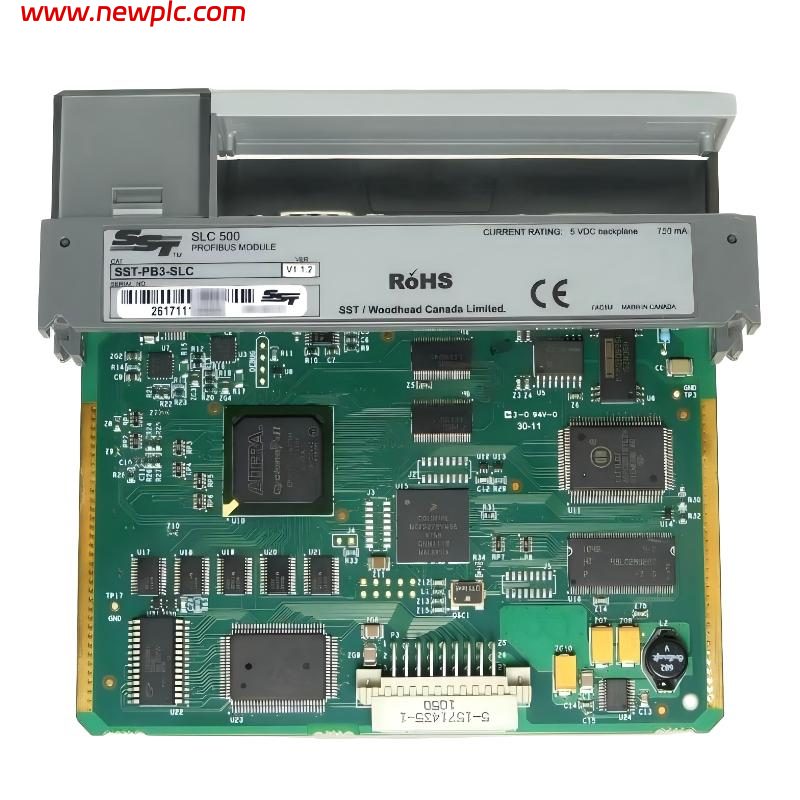

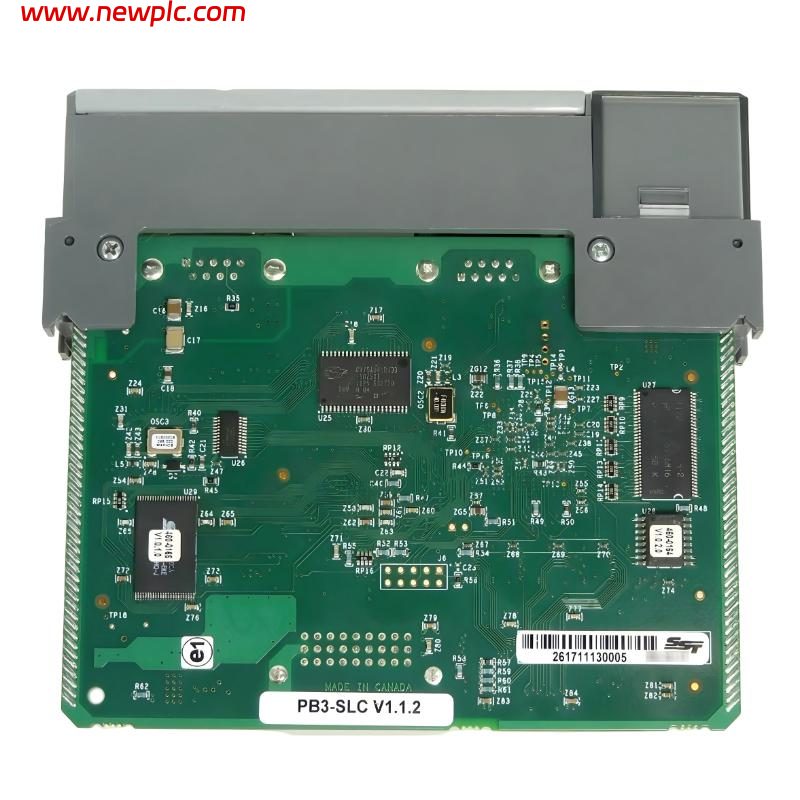

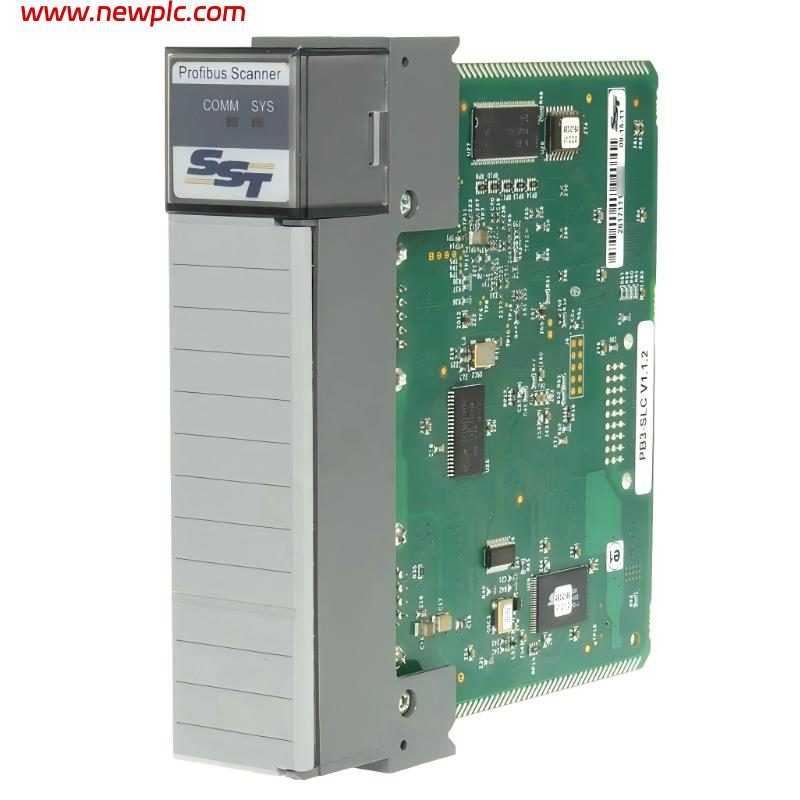

| Product Name | PROFIBUS DP Master Scanner Module (SLC Platform) |
| Model Number | SST-PB3-SLC |
| Manufacturer | Woodhead / Molex (SST Series – legacy Allen-Bradley ecosystem) |
| Platform | Allen-Bradley SLC 500 (1746 I/O chassis) |
| Module Type | In-chassis PROFIBUS communication module |
| Communication Protocol | PROFIBUS DP-V0 / DP-V1 (Master) |
| Fieldbus Interface | 1 × PROFIBUS port (9-pin D-Sub) |
| Configuration Port | 1 × RS-232 service/diagnostic port |
| Backplane Current | ~800 mA @ 5 V DC |
| Slot Requirement | 1 × SLC 500 chassis slot |
| Supported Nodes | Up to 125 PROFIBUS slaves |
| I/O Data Capacity | Up to ~2064 bytes input / 2064 bytes output |
| Transmission Speed | 9.6 kbps to 12 Mbps |
| Data Handling | Cyclic I/O + diagnostic & parameter access |
| Configuration Tools | COM PROFIBUS / SST configuration software + RSLogix 500 |
| Diagnostics | LED status + PLC diagnostic data + PROFIBUS tools |
| Data Mapping | Direct mapping to SLC I/O and M-file memory areas |
| Module Status | Legacy / Discontinued |
| Dimensions | Approx. 145 × 35 × 140 mm |
| Weight | ~0.48–0.9 kg (varies by revision) |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -25°C to 70°C |
| Function | PROFIBUS master interface for SLC 500 systems |
| System Role | Connects SLC PLCs to PROFIBUS field devices |
FAQ
FAQ
Q1: What is the SST-PB3-SLC module?
It is a ControlLogix/SLC 500-era communication module that functions as a PROFIBUS DP Master scanner for integrating PROFIBUS networks into SLC systems.
Q2: Which PLC platform does it support?
It is designed for the Allen-Bradley SLC 500 chassis system.
Q3: What protocol does it use?
It uses PROFIBUS DP-V0 / DP-V1 as a Master station.
Q4: How many devices can it control?
It supports up to 125 PROFIBUS slave devices.
Q5: What is the data capacity?
It supports approximately 2064 bytes input and 2064 bytes output cyclic data.
Q6: How does it connect to the PLC?
It maps PROFIBUS data directly into SLC I/O files and memory structures for ladder logic access.
Q7: What is it mainly used for?
It is used to connect SLC PLC systems with Siemens-based PROFIBUS networks, including remote I/O and drives.
Q8: Is this module still available new?
No, it is a legacy/discontinued product, still used mainly for maintenance of existing installations.
