Technical Specifications
| Parameter | Specification |
|---|---|

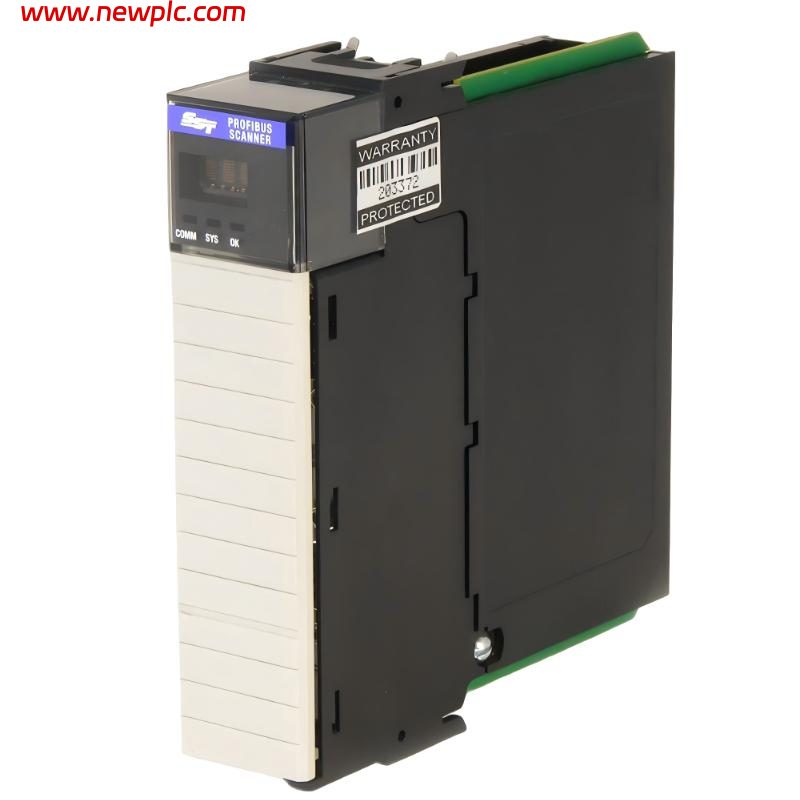

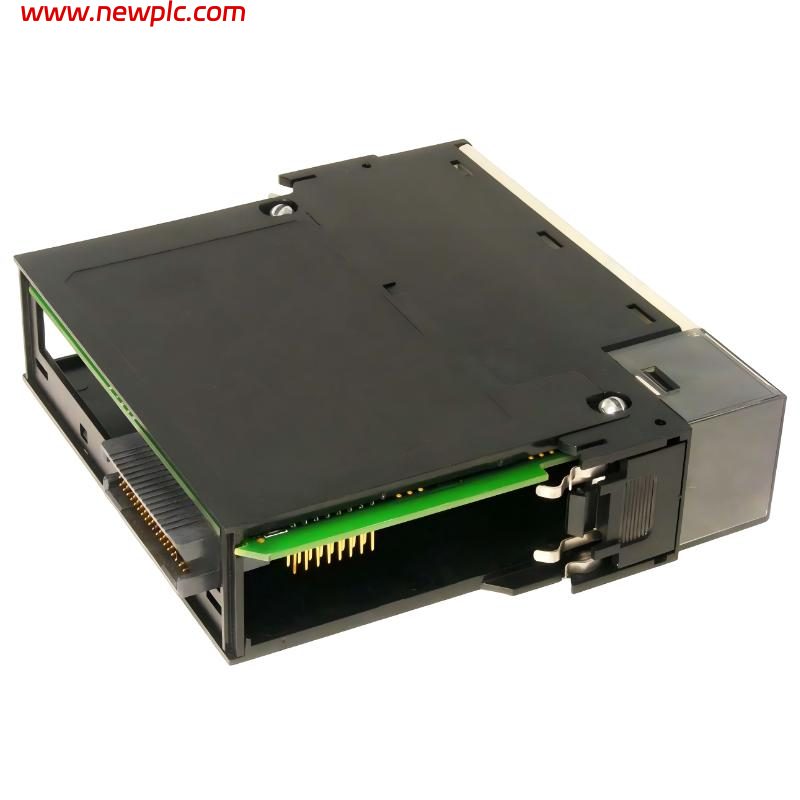

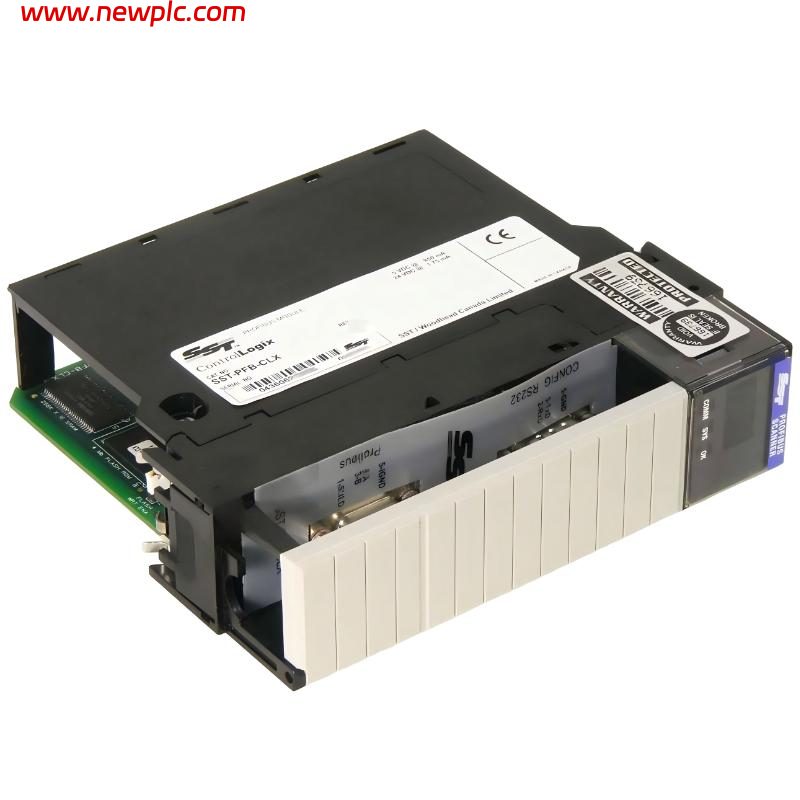

| Product Name | PROFIBUS DP Master/Slave Communication Module |
| Model Number | SST-PB3-CLX |
| Manufacturer | Woodhead / Molex (SST Series, legacy ProSoft ecosystem) |
| Platform | Allen-Bradley ControlLogix (1756 chassis) |
| Module Type | In-chassis PROFIBUS scanner module |
| Communication Protocol | PROFIBUS DP-V0 / DP-V1 (Master & Slave support) |
| Fieldbus Interface | 1 × PROFIBUS port (9-pin D-Sub) |
| Configuration Port | 1 × RS-232 service/diagnostic port |
| Backplane Current | ~800 mA @ 5 V DC |
| Slot Requirement | 1 × ControlLogix slot |
| Supported Nodes | Up to 125 PROFIBUS devices |
| I/O Data Capacity | Up to ~496 bytes input / 496 bytes output (direct mode, typical) |
| Transmission Speed | 9.6 kbps to 12 Mbps |
| Data Handling | Cyclic I/O + acyclic diagnostics/parameter access |
| Configuration Tools | RSLogix 5000 / Studio 5000 + SST PROFIBUS configuration software |
| Diagnostics | LED indicators + diagnostic software tools |
| Data Mapping | ControlLogix backplane I/O or memory mapping |
| Module Status | Legacy / Discontinued |
| Dimensions | Approx. 130 × 150 × 40 mm |
| Weight | ~0.24–0.9 kg (varies by revision and source) |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -25°C to 70°C |
| Function | PROFIBUS network integration for ControlLogix systems |
| System Role | Acts as PROFIBUS Master/Slave interface for Rockwell PLCs |
FAQ
FAQ
Q1: What is the SST-PB3-CLX module?
It is a ControlLogix in-chassis PROFIBUS DP communication module that enables Rockwell PLCs to connect to PROFIBUS networks.
Q2: Which PLC platform does it support?
It is designed for Allen-Bradley ControlLogix systems (1756 chassis).
Q3: What protocols does it support?
It supports PROFIBUS DP-V0 and DP-V1, operating as Master and/or Slave.
Q4: How many devices can it connect to?
It supports up to 125 PROFIBUS devices on a single network segment.
Q5: What is the data capacity?
Typical direct mode supports around 496 bytes input/output per I/O block, depending on configuration.
Q6: How does it communicate with the PLC?
It exchanges data via the ControlLogix backplane using I/O mapping and configuration software.
Q7: What is it used for?
It is used in industrial automation systems to integrate Siemens PROFIBUS equipment into Rockwell ControlLogix architectures.
Q8: Is it still supported today?
No, it is a legacy/discontinued module, mainly used for maintaining existing installed systems.
