Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | Allen-Bradley VPL Series (Kinetix VP Low Inertia Servo Motor) |

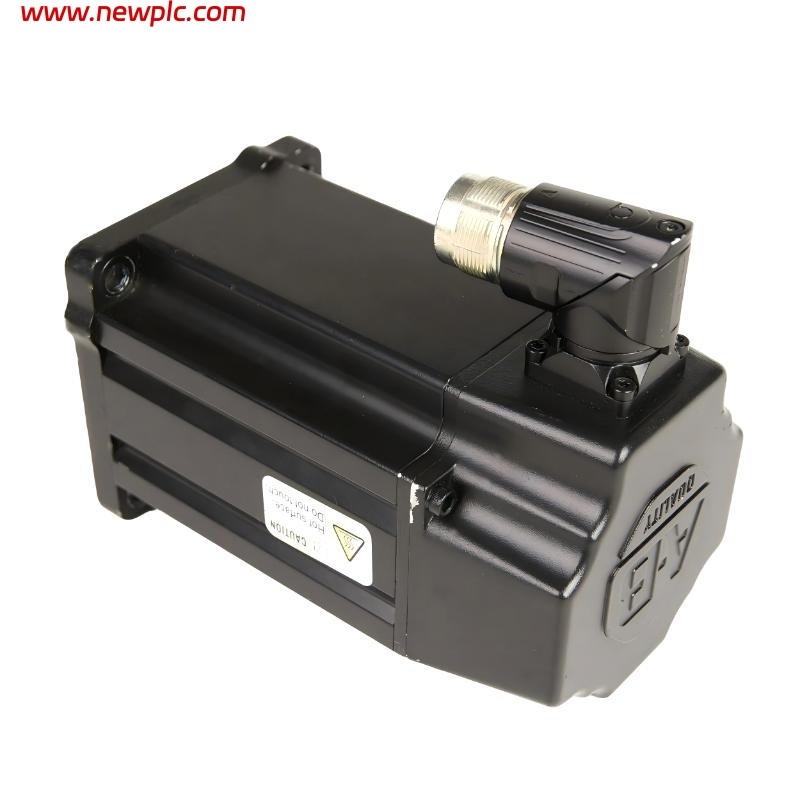

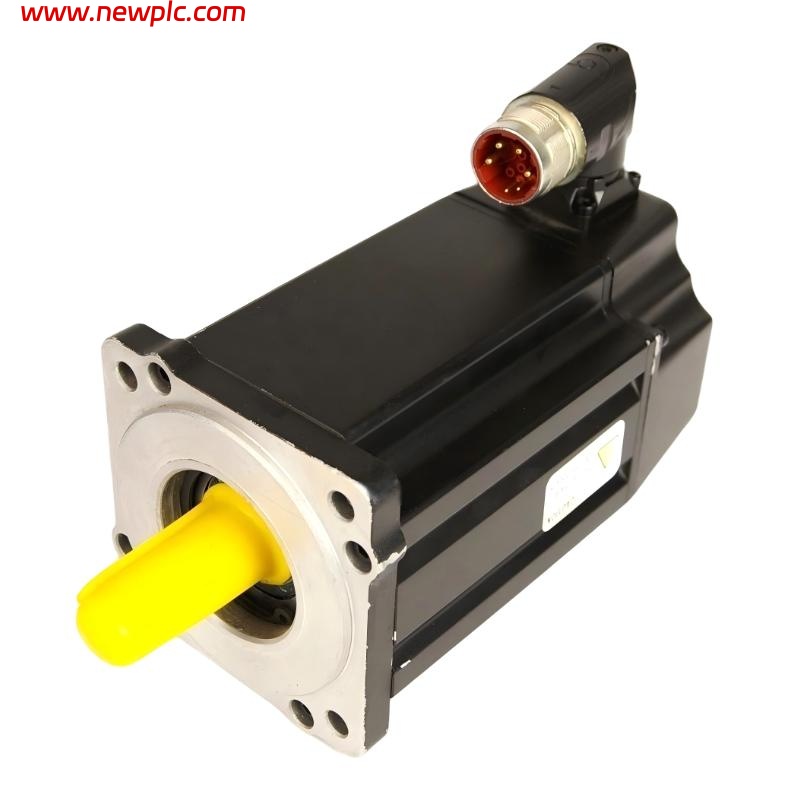

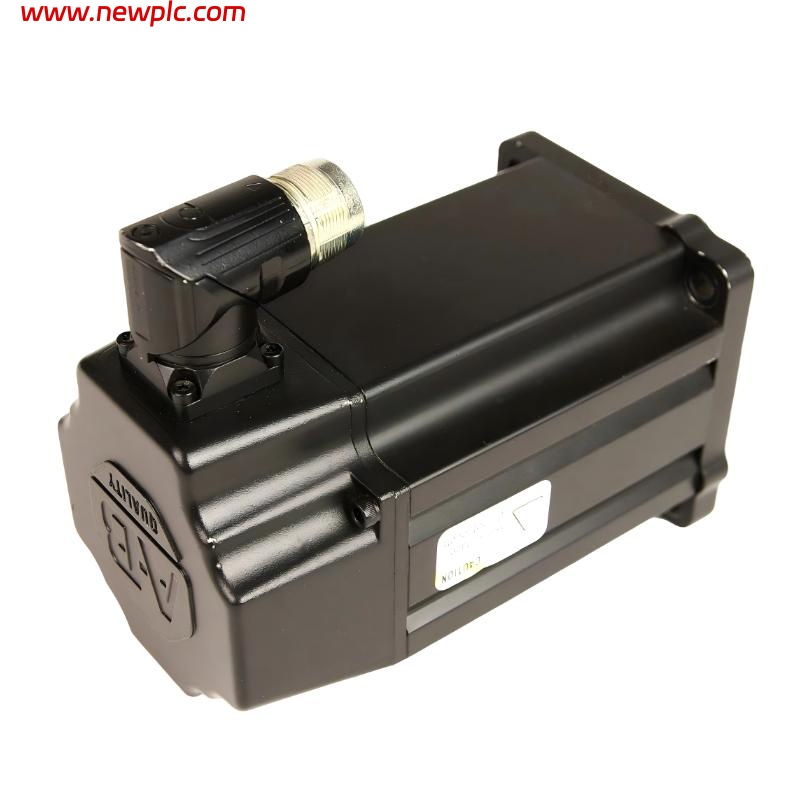

| Model Number | VPL-B1002M-PJ12AA |
| Product Type | Low Inertia Rotary Servo Motor |
| Rated Voltage | 400 V AC |
| Rated Torque | 3.18 Nm |
| Peak Torque | 9.54 Nm |
| Rated Speed | 2000 rpm |
| Maximum Speed | 4000 rpm |
| Frame Size | 100 mm |
| Motor Stack Length | 2 (medium stack) |
| Feedback Device | 24-bit absolute multi-turn digital encoder |
| Brake | No brake |
| Shaft Type | Keyed shaft with shaft seal |
| Enclosure Rating | IP65 |
| Mounting Type | Metric flange |
| Connector Type | Single cable (hybrid power and feedback) |
| Continuous Output Power | Approx. 0.67 kW |
| Cooling Method | Natural convection |
| Operating Temperature | 0°C to 40°C |
| Application Type | Precision motion control, conveyors, packaging systems |
| Dimensions | Approx. 220 × 100 × 100 mm |
| Weight | Approx. 4.0–5.0 kg |
FAQ
FAQ
Q1. What is the VPL-B1002M-PJ12AA used for?
It is used in industrial automation systems requiring accurate motion control such as conveyors, packaging, and assembly machines.
Q2. What type of motor is it?
It is a low inertia AC servo motor from the Kinetix VP (VPL) series.
Q3. Does this model include a brake?
No, this version is supplied without a holding brake.
Q4. What feedback system is used?
It uses a high-resolution 24-bit absolute multi-turn encoder.
Q5. What is the rated speed?
The rated speed is 2000 rpm, with a maximum speed up to 4000 rpm.
Q6. What is the shaft configuration?
It has a keyed shaft with a shaft seal for durability and secure coupling.
Q7. What is the enclosure protection rating?
It is rated IP65, suitable for industrial environments.
Q8. What is the weight of the motor?
Approximately 4.0–5.0 kg, depending on configuration and options.
