Technical Specifications
| Parameter | Specification |
|---|---|

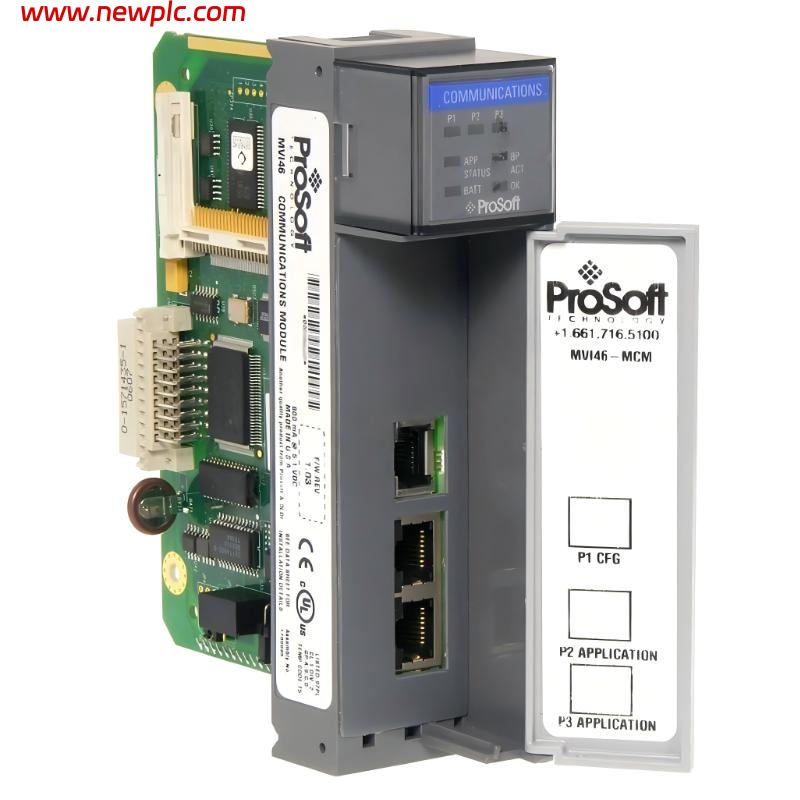

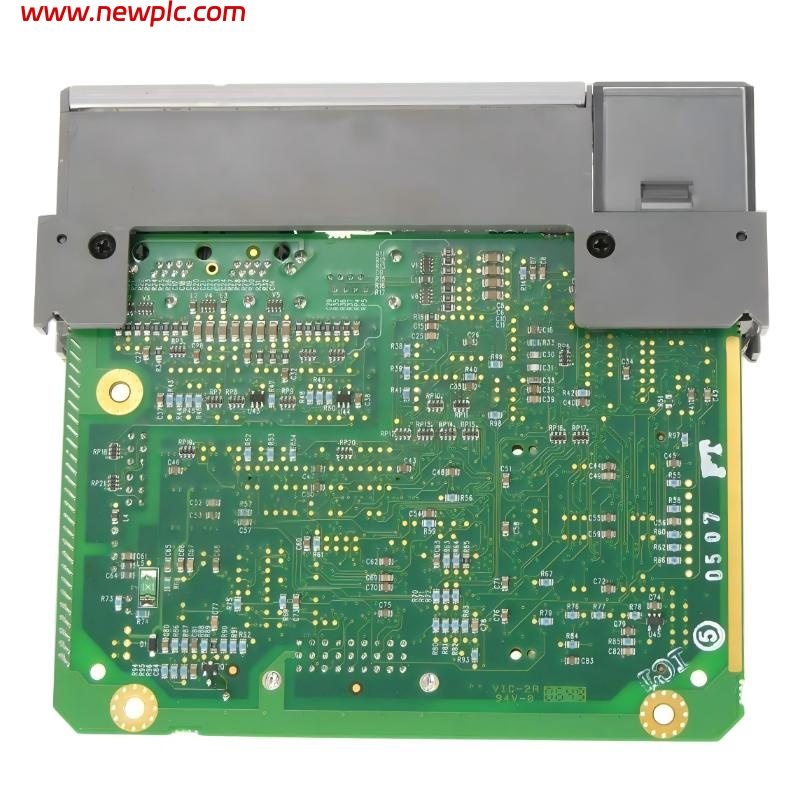

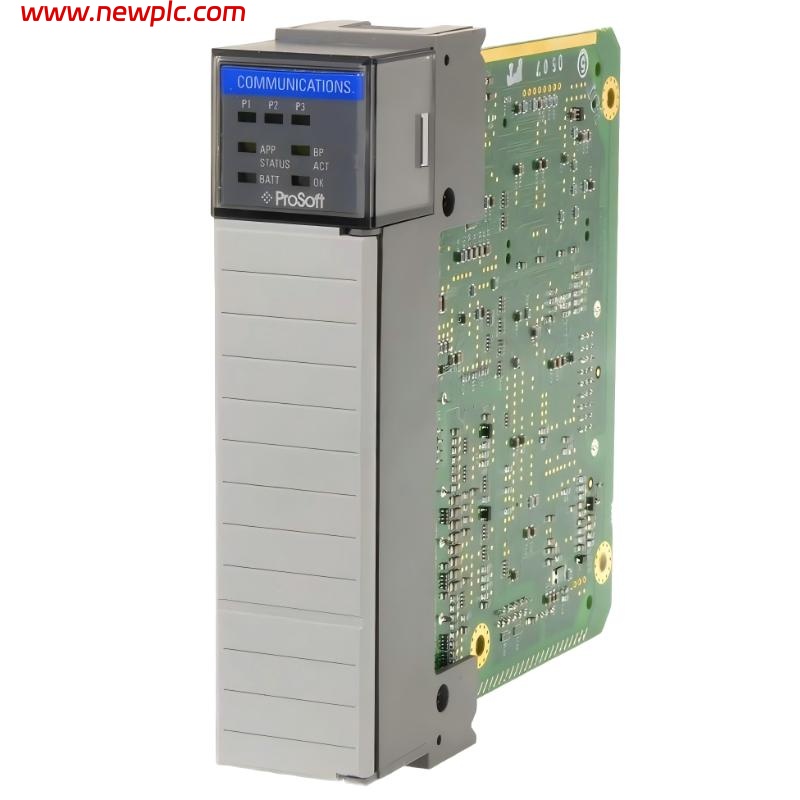

| Product Series | ProSoft inRAx Communication Module |
| Model Number | MVI46-MCM |
| Product Type | Modbus Master/Slave Communication Module |
| Platform Compatibility | Allen-Bradley SLC 500 (1746 backplane) |
| Function | Interface between SLC PLC and Modbus RTU/ASCII devices |
| Protocol Support | Modbus RTU, Modbus ASCII |
| Mode Support | Master and Slave (configurable) |
| Ports | 2 × application ports (RS-232/422/485), 1 × configuration port (RS-232) |
| Backplane Requirement | Single-slot 1746 chassis module |
| Data Capacity | 5000-word internal register database |
| Baud Rate | Up to 115.2 kbps |
| Data Transfer Method | Asynchronous between PLC and Modbus network |
| Configuration | Text configuration file + ladder logic (M0/M1 files) |
| Backplane Current | Approx. 800 mA @ 5.1 VDC |
| Isolation | Up to 2500 Vrms channel-to-backplane |
| Mounting Type | Rack-mounted (SLC chassis) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions | Approx. 135 × 133 × 54 mm |
| Weight | Approx. 0.4–2.0 kg |
FAQ
FAQ
Q1. What is the MVI46-MCM used for?
It is used to connect Allen-Bradley SLC 500 PLCs to Modbus-compatible devices for industrial communication.
Q2. What protocols does it support?
It supports Modbus RTU and Modbus ASCII in both Master and Slave modes.
Q3. How does it communicate with the PLC?
It exchanges data through M0/M1 files using ladder logic inside the SLC processor.
Q4. How many ports are available?
It provides two application ports (RS-232/422/485) and one configuration port.
Q5. What is the data capacity of the module?
It supports a 5000-word internal database for data exchange.
Q6. Can it be used in remote I/O racks?
No, it only supports local or extended 1746 chassis installations.
Q7. What industries use this module?
It is widely used in SCADA, oil & gas, mining, and manufacturing systems.
Q8. What is the weight of the module?
Approximately 0.4–2.0 kg, depending on revision and packaging.
