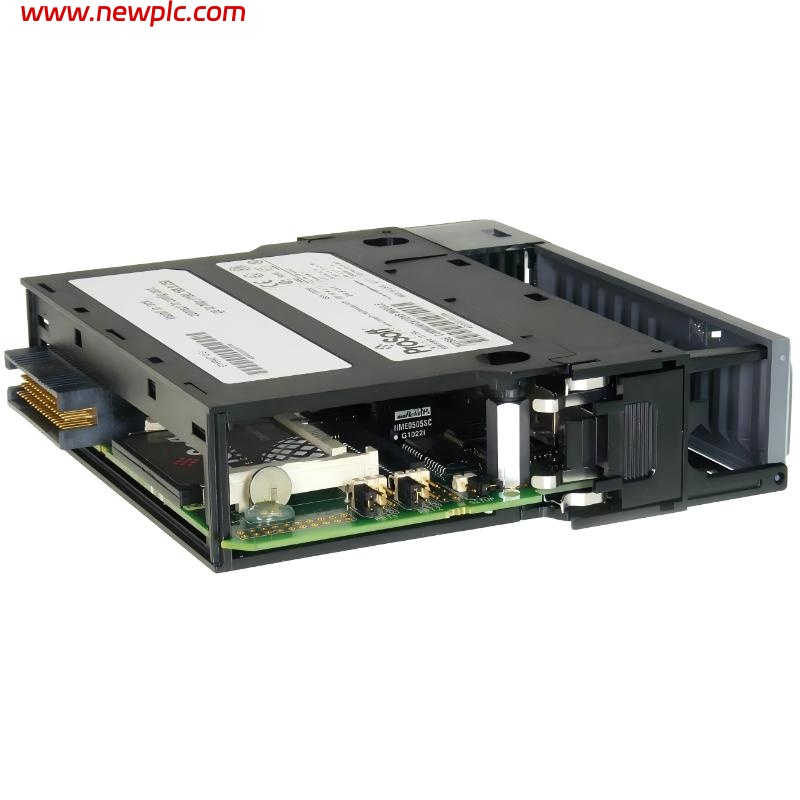

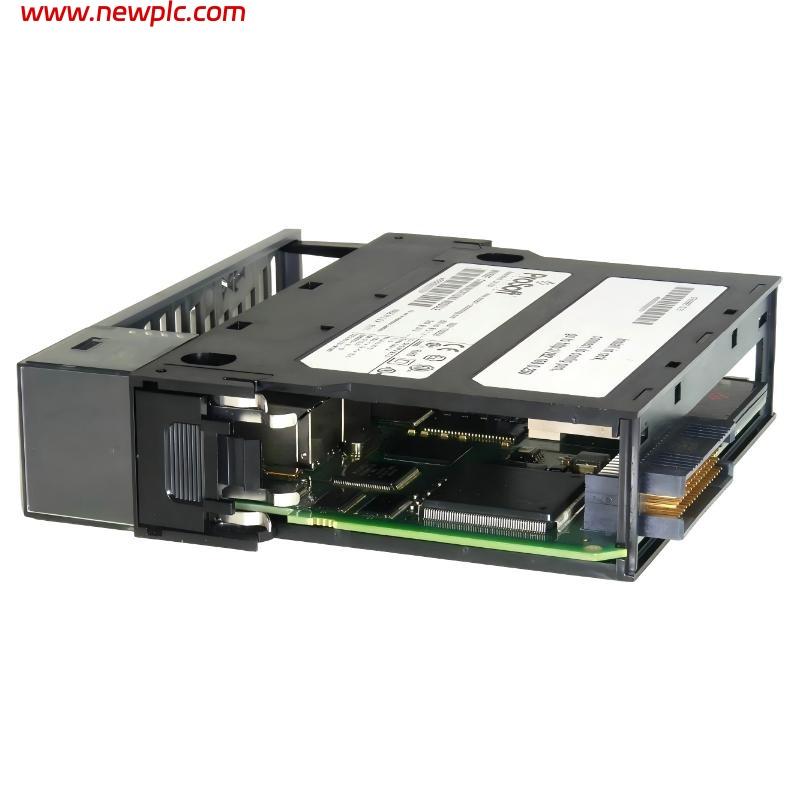

Technical Specifications

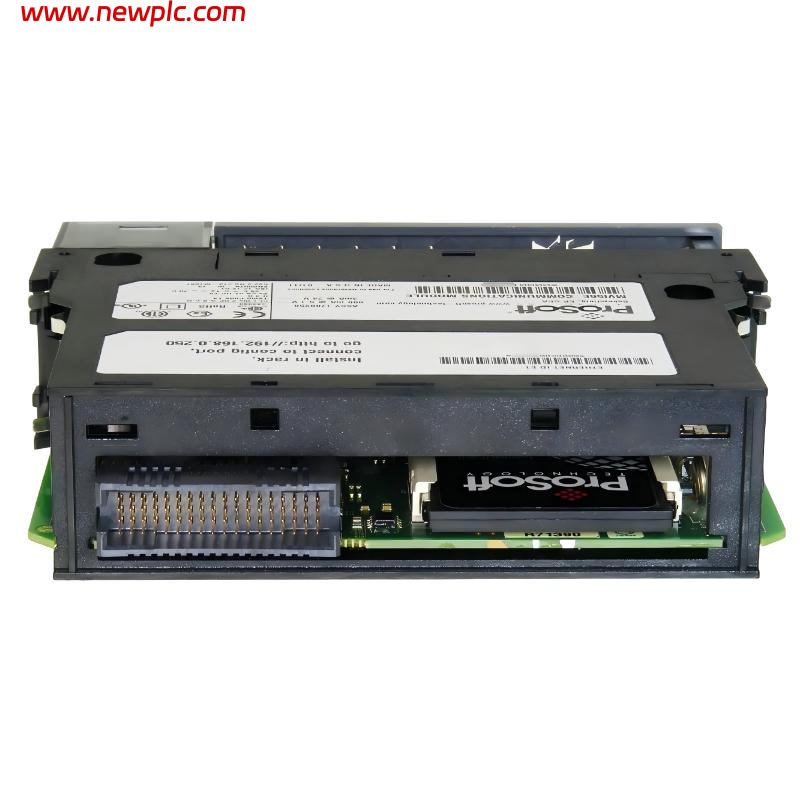

| Parameter | Specification |
|---|---|
| Product Series | ProSoft ControlLogix Communication Module |
| Model Number | MVI56E-MCMXT |
| Product Type | Modbus RTU/ASCII Master/Slave Communication Module (XT version) |
| Platform Compatibility | Allen-Bradley ControlLogix (1756 chassis) |
| Function | Gateway between ControlLogix PLC and Modbus serial devices |
| Protocol Support | Modbus RTU, Modbus ASCII |
| Mode Support | Master and Slave (configurable per port) |
| Ports | 2 × serial ports (independently configurable) |
| Ethernet Port | 1 × 10/100 Mbps (configuration & diagnostics) |
| Backplane Slot | Single-slot ControlLogix module |
| Data Capacity | Up to 10,000-word internal database |
| Baud Rate | 110 bps – 115.2 kbps |
| Backplane Current | Approx. 800 mA @ 5 VDC |
| Isolation | Electrical isolation for serial ports |
| Diagnostics | LED indicators + Ethernet diagnostics tools |
| Special Feature | Conformal coating for harsh environments |
| Operating Temperature | -25°C to 70°C (XT version) |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions | Approx. 138 × 87 × 160 mm |
| Weight | Approx. 2.0 kg (shipping weight) |
FAQ
FAQ
Q1. What is the MVI56E-MCMXT used for?
It is used to connect ControlLogix PLCs with Modbus RTU/ASCII devices for industrial communication.
Q2. What is the difference between MCM and MCMXT?
MCMXT is designed for extreme environments, offering extended temperature range and conformal coating protection.
Q3. How many communication ports does it have?
It has two independently configurable serial ports that can operate on different Modbus networks.
Q4. Can it work as both master and slave?
Yes, each port can be configured as either Modbus Master or Slave.
Q5. How does it integrate with ControlLogix?
It appears as an I/O module on the backplane, allowing Modbus data to be accessed like standard PLC I/O.
Q6. What makes it suitable for harsh environments?
It includes conformal coating and supports higher operating temperatures compared to standard versions.
Q7. What is the data handling capacity?
It supports up to a 10,000-word internal database for mapping Modbus data.
Q8. What is the weight of the module?
Approximately 2.0 kg, depending on packaging and configuration.
