Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | ProSoft ControlLogix Communication Module |

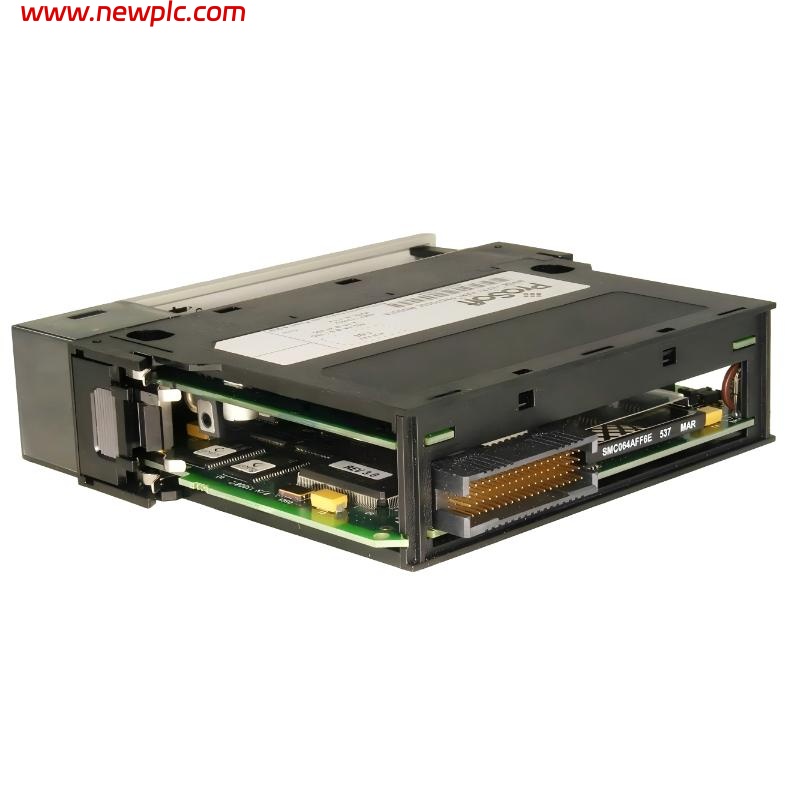

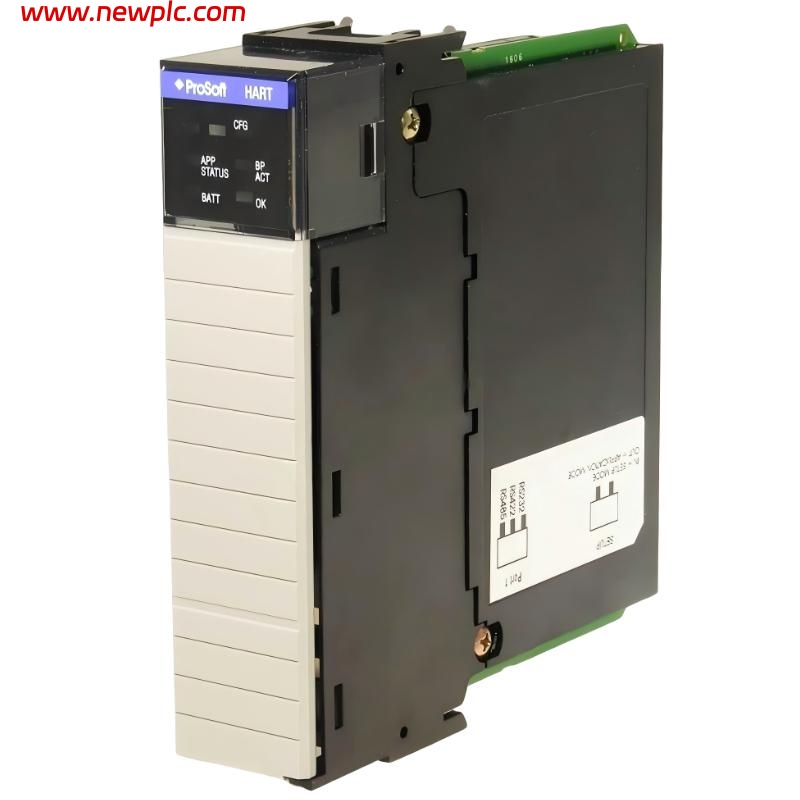

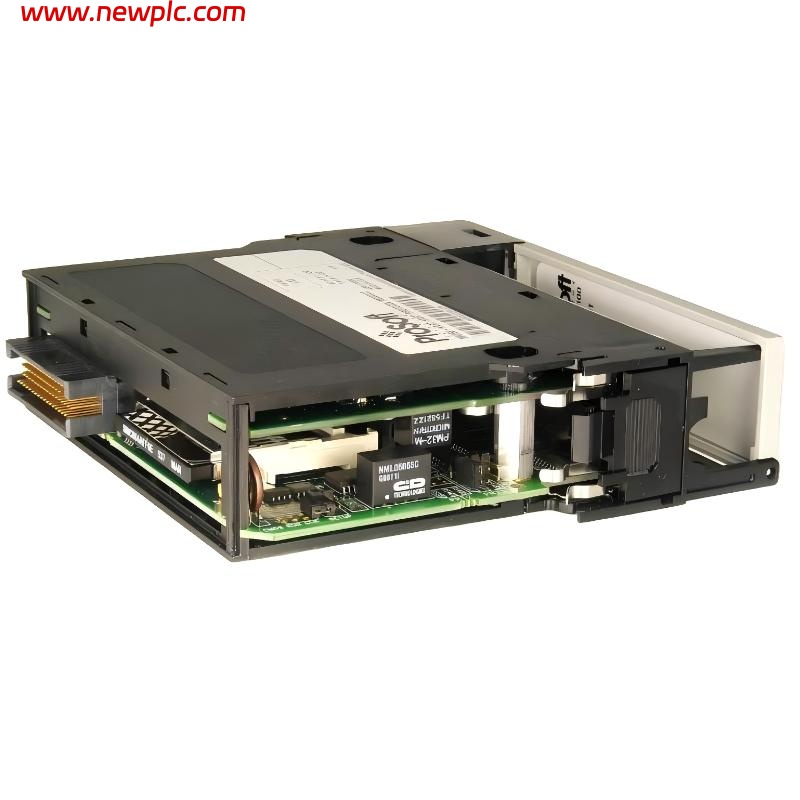

| Model Number | MVI56-HART |
| Product Type | HART Multi-drop Master Communication Module |
| Platform Compatibility | Allen-Bradley ControlLogix (1756 chassis) |
| Function | Interface between ControlLogix PLC and HART field instruments |
| Protocol Support | HART (Bell 202 FSK standard, Version 5) |
| Communication Type | Multi-drop and point-to-point |
| Channels | 4 independent HART master channels |
| Devices per Channel | Up to 15 HART devices per channel |
| Total Capacity | Up to 60 devices (system dependent) |
| Data Handling | Internal database (up to 5000 registers) |
| Backplane Requirement | Single-slot 1756 ControlLogix chassis |
| Data Transfer Method | Ladder logic + internal database mapping |
| Signal Type | 4–20 mA analog with superimposed digital signal (FSK) |
| Command Support | Up to 99 commands per port |
| Configuration Method | Text configuration file + ladder logic |
| Diagnostics | LED indicators + PLC diagnostics |
| Mounting Type | Rack-mounted module |
| Operating Temperature | 0°C to 60°C (typical ControlLogix environment) |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions | Approx. 138 × 87 × 160 mm |
| Weight | Approx. 0.9–1.5 kg |
FAQ
FAQ
Q1. What is the MVI56-HART used for?
It is used to connect ControlLogix PLCs with HART-compatible field instruments such as transmitters and smart sensors.
Q2. What protocol does it support?
It supports the HART protocol using FSK communication over 4–20 mA signals.
Q3. How many devices can it connect?
Up to 15 devices per channel, with 4 channels available.
Q4. Is it a standalone controller?
No, it is a communication module that installs inside a ControlLogix rack.
Q5. What industries typically use this module?
It is widely used in process industries such as oil & gas, chemical, and water treatment.
Q6. How does data exchange with the PLC work?
Data is mapped through an internal database and accessed using ladder logic in the PLC.
Q7. What is the difference between multi-drop and point-to-point?
Multi-drop allows multiple devices on one channel, while point-to-point connects a single device directly.
Q8. What is the weight of the module?
Approximately 0.9–1.5 kg, depending on configuration and packaging.
