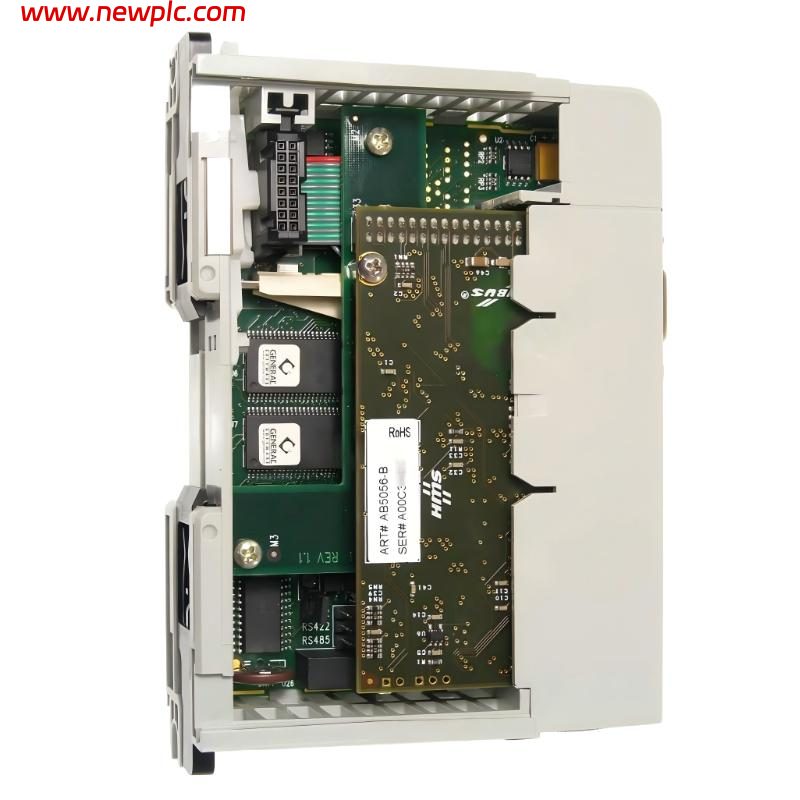

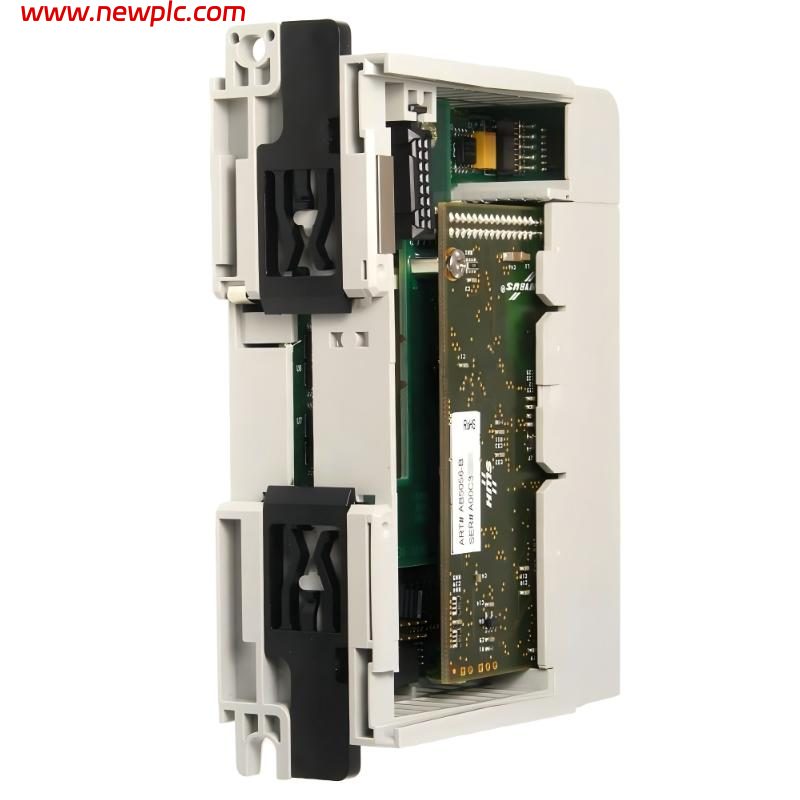

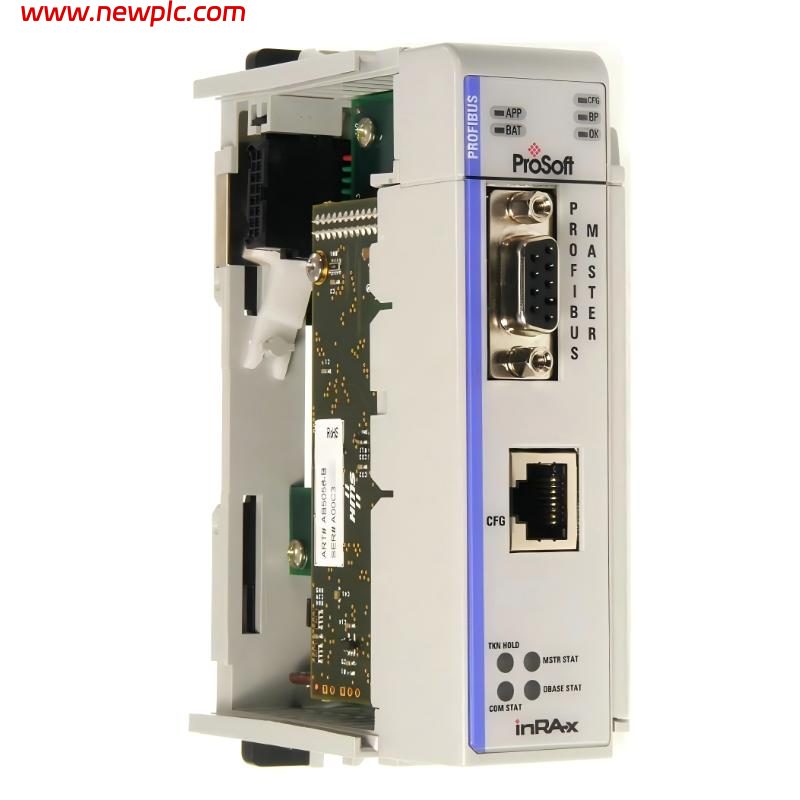

ProSoft MVI69-PDPMV1 Single-slot PROFIBUS Master module

FAQ

Q1: What is the MVI69-PDPMV1 module?
It is a ProSoft communication module that allows Allen-Bradley CompactLogix or MicroLogix PLCs to operate as a PROFIBUS DP-V1 Master.

Q2: Which PLC platforms does it support?
It supports CompactLogix (1769 chassis) and MicroLogix 1500 LRP controllers.

Q3: What protocol does it use?
It uses PROFIBUS DP-V0 and DP-V1, operating as a Master station.

Q4: How many devices can it connect to?
It supports up to 125 PROFIBUS slave devices.

Q5: What is the data transfer method to PLC?
Data is transferred via backplane I/O mapping using ladder logic or AOI blocks.

Q6: What is the communication speed?
It supports baud rates from 9.6 kbps up to 12 Mbps.

Q7: What are typical applications?
It is used in factory automation, process control, packaging systems, and integration of Siemens PROFIBUS field devices into Rockwell PLC systems.

Q8: Why is this module still widely used?
Because many industrial plants still rely on PROFIBUS networks, and this module provides a stable way to integrate those legacy systems into modern CompactLogix platforms without replacing field devices.
