Technical Specifications
| Parameter | Specification |
|---|---|

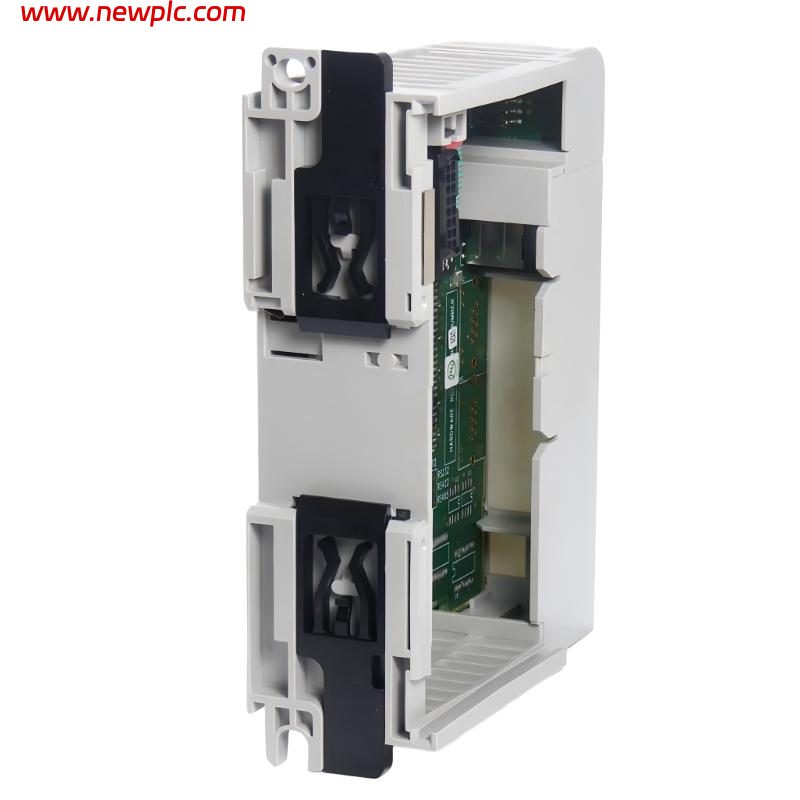

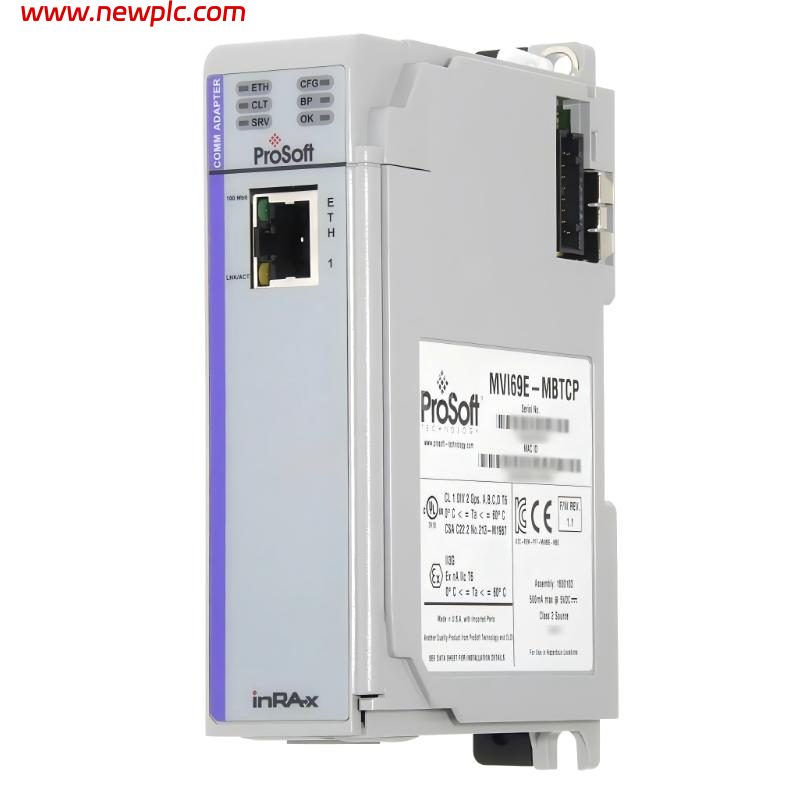

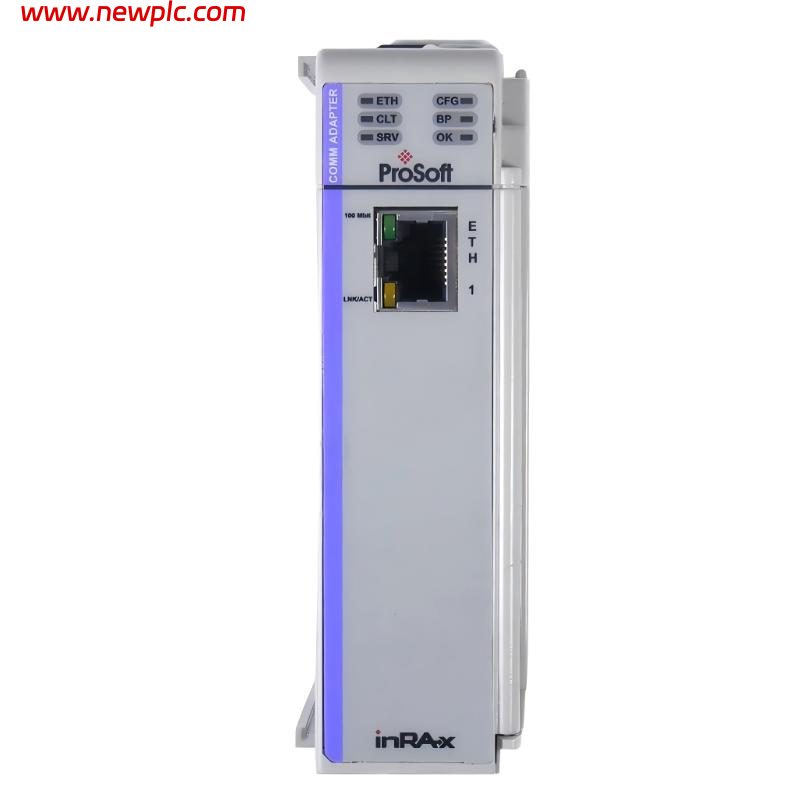

| Product Name | Modbus TCP/IP Enhanced Communication Module |
| Model Number | MVI69E-MBTCP |
| Manufacturer | ProSoft Technology (Rockwell Automation Encompass Partner) |
| Platform | Allen-Bradley CompactLogix (1769 I/O chassis) |
| Module Type | Single-slot Modbus TCP/IP Client/Server module |
| Communication Protocol | Modbus TCP/IP (Client & Server) |
| Ethernet Port | 1 × RJ45, 10/100 Mbps |
| Backplane Current | 500 mA @ 5 V DC |
| Slot Requirement | 1 × 1769 CompactLogix slot |
| Data Capacity | Up to 10,000 words (16-bit registers) |
| Client Connections | Up to 20 Modbus TCP clients |
| Server Connections | Up to 20 Modbus TCP servers |
| Configuration Tools | Studio 5000 (AOI + AOP) + ProSoft Configuration Builder (PCB) |
| Data Transfer Method | CompactLogix tag mapping via backplane (co-processor mode) |
| Diagnostics | Controller tags + LED status indicators + embedded web diagnostics |
| Programming Support | Add-On Instruction (AOI) based, no custom firmware required |
| Dimensions | Approx. 131 × 39 × 87 mm |
| Weight | Approx. 0.2–0.3 kg |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Function | Industrial Modbus TCP/IP communication gateway |
| System Role | Ethernet interface between CompactLogix PLC and Modbus devices |
FAQ
FAQ
Q1: What is the MVI69E-MBTCP module?
It is a ProSoft communication module for Allen-Bradley CompactLogix systems that enables Modbus TCP/IP client and server communication.
Q2: Which PLC platform does it support?
It is designed for CompactLogix controllers using the 1769 I/O chassis.
Q3: What communication protocol does it use?
It uses Modbus TCP/IP over Ethernet (10/100 Mbps).
Q4: Is it a client or server module?
It supports both Modbus TCP Client and Server modes simultaneously.
Q5: How does it communicate with the PLC?
It exchanges data through the CompactLogix backplane using AOI/AOP and controller tags.
Q6: What software is required?
Studio 5000 (RSLogix 5000) plus ProSoft Configuration Builder (PCB).
Q7: What are typical applications?
Energy management systems, SCADA integration, VFD/drive communication, process instrumentation, and Modbus device networking.
Q8: Why is this module commonly used?
Because it provides a high-capacity, well-integrated Modbus TCP interface without requiring external gateways or custom Ethernet programming.
