Technical Specifications
| Parameter | Specification |
|---|---|

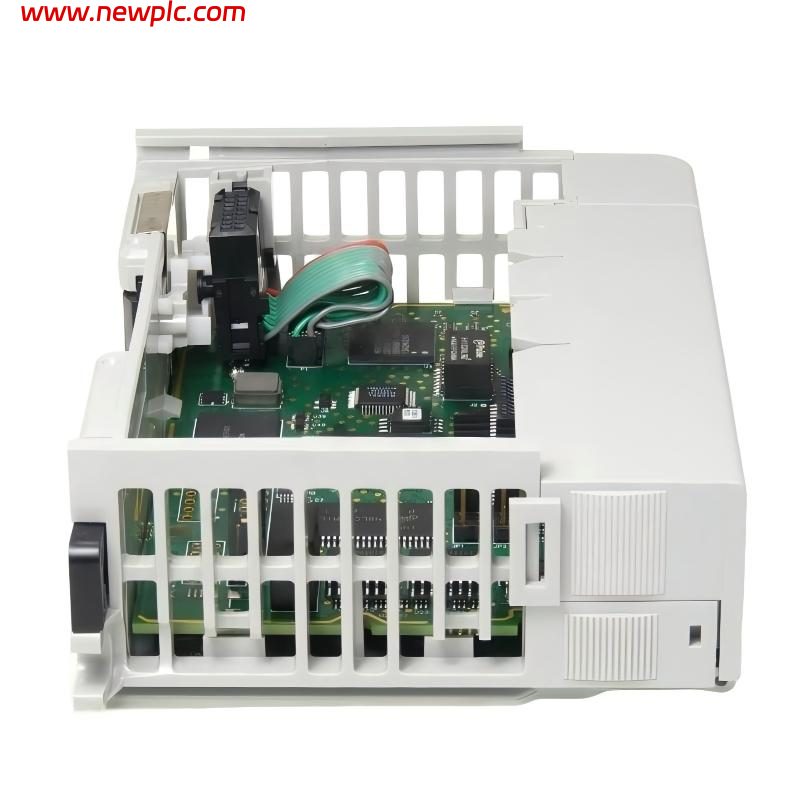

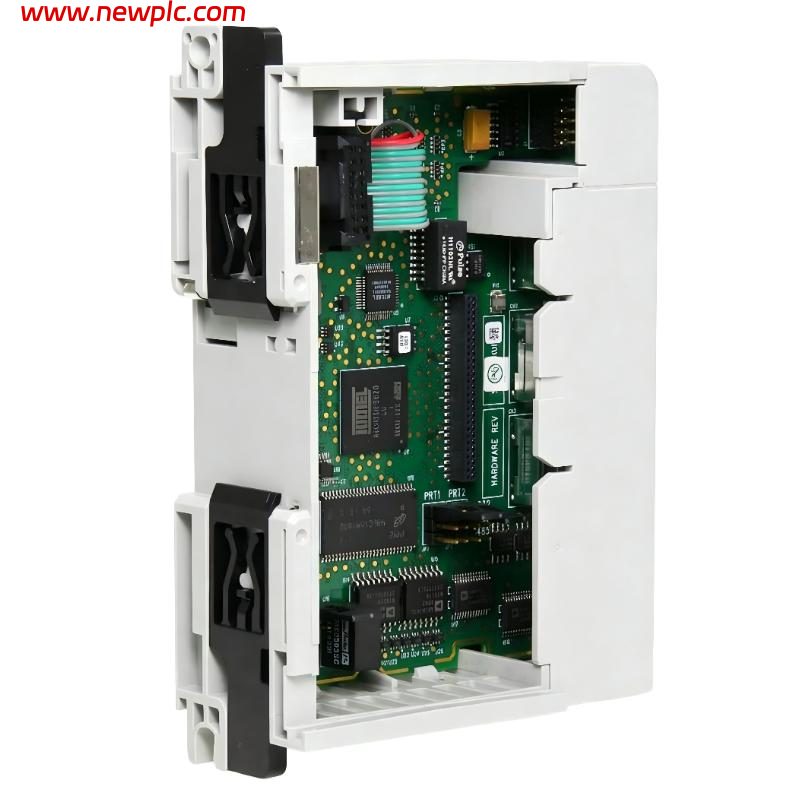

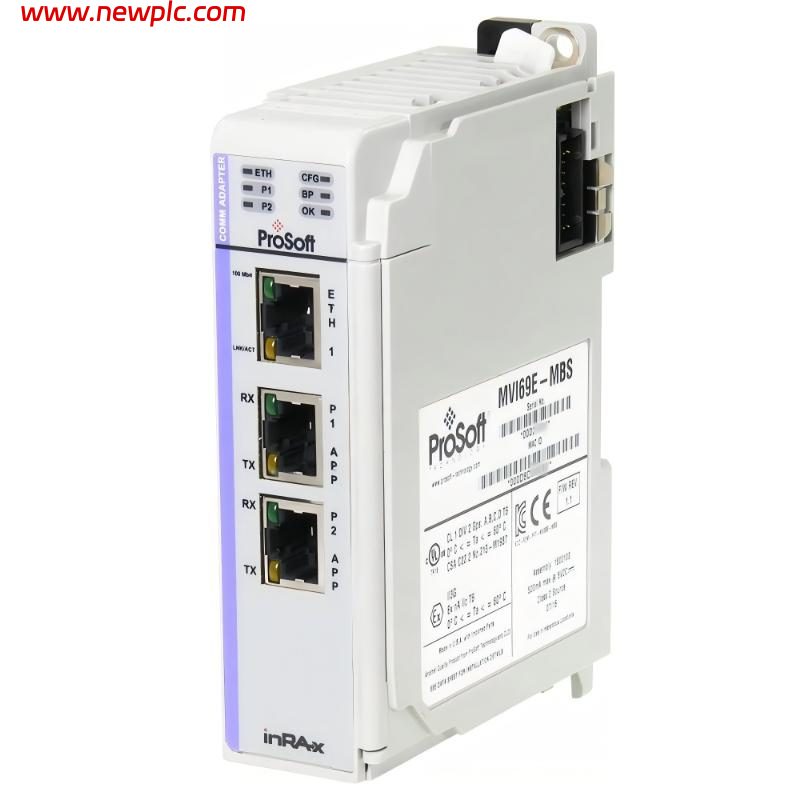

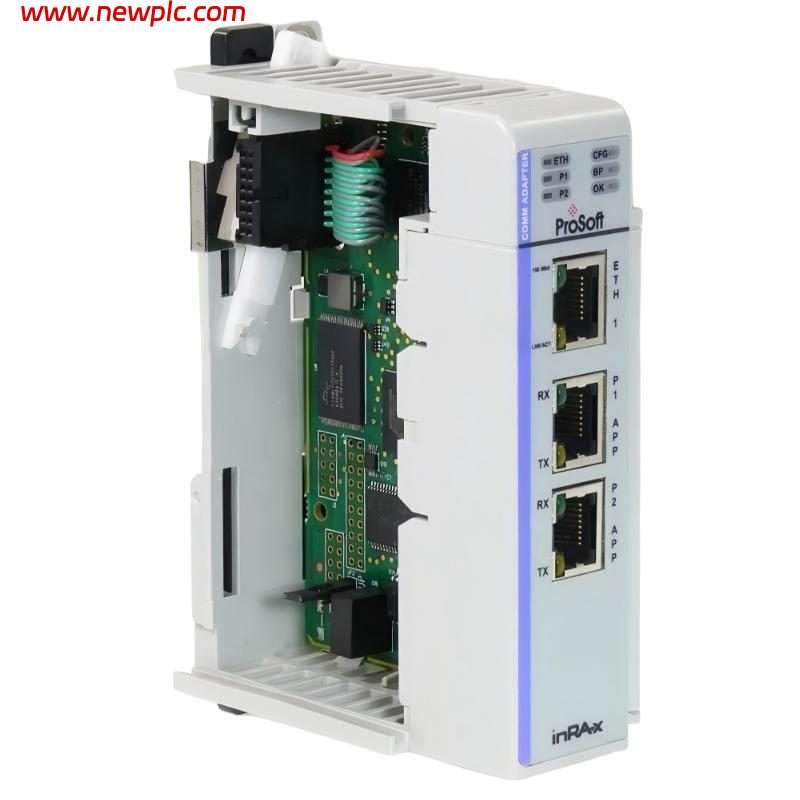

| Product Name | Modbus TCP/IP Interface Module |
| Model Number | MVI69E-MBS |
| Manufacturer | ProSoft Technology (Rockwell Automation Encompass Partner) |
| Platform | Allen-Bradley CompactLogix (1769 I/O chassis) |
| Module Type | Single-slot Modbus TCP/IP Server/Client module |
| Communication Protocol | Modbus TCP/IP (Client & Server) |
| Ethernet Port | 1 × RJ45, 10/100 Mbps |
| Backplane Current | ~500–800 mA @ 5 V DC (varies by revision) |
| Slot Requirement | 1 × 1769 CompactLogix slot |
| Data Capacity | Up to ~10,000 16-bit registers (configuration dependent) |
| Client Capability | Multiple Modbus TCP clients (polling supported) |
| Server Capability | Multiple Modbus TCP servers |
| Configuration Tool | Studio 5000 (AOI) + ProSoft Configuration Builder (PCB) |
| Data Transfer Method | CompactLogix tag mapping via backplane |
| Diagnostics | LED status indicators + controller tags |
| Web Interface | Embedded Ethernet diagnostics (on E-series variants) |
| Dimensions | Approx. 118 × 35 × 87 mm |
| Weight | Approx. 0.2–0.3 kg |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Function | CompactLogix Modbus TCP communication gateway module |
| System Role | Ethernet interface between CompactLogix PLC and Modbus devices |
FAQ
FAQ
Q1: What is the MVI69E-MBS module?
It is a ProSoft CompactLogix communication module that enables Modbus TCP/IP client and server functionality for Allen-Bradley 1769-based PLC systems.
Q2: Which PLC platform does it support?
It is designed for Allen-Bradley CompactLogix systems using the 1769 I/O chassis.
Q3: What protocol does it support?
It supports Modbus TCP/IP over Ethernet (10/100 Mbps).
Q4: Is it client or server?
It supports both Modbus TCP Client and Server modes.
Q5: How does it communicate with the PLC?
It exchanges data via CompactLogix backplane using AOI and controller tags.
Q6: What software is used for configuration?
Studio 5000 (for AOI integration) and ProSoft Configuration Builder (PCB).
Q7: What is it typically used for?
It is used for SCADA systems, energy monitoring, industrial Ethernet integration, and Modbus TCP device communication.
Q8: Why is this module widely used?
Because it provides a reliable and integrated Modbus TCP interface inside CompactLogix systems without requiring external gateways or custom Ethernet drivers.
