Technical Specifications
| Item | Specification |
|---|---|

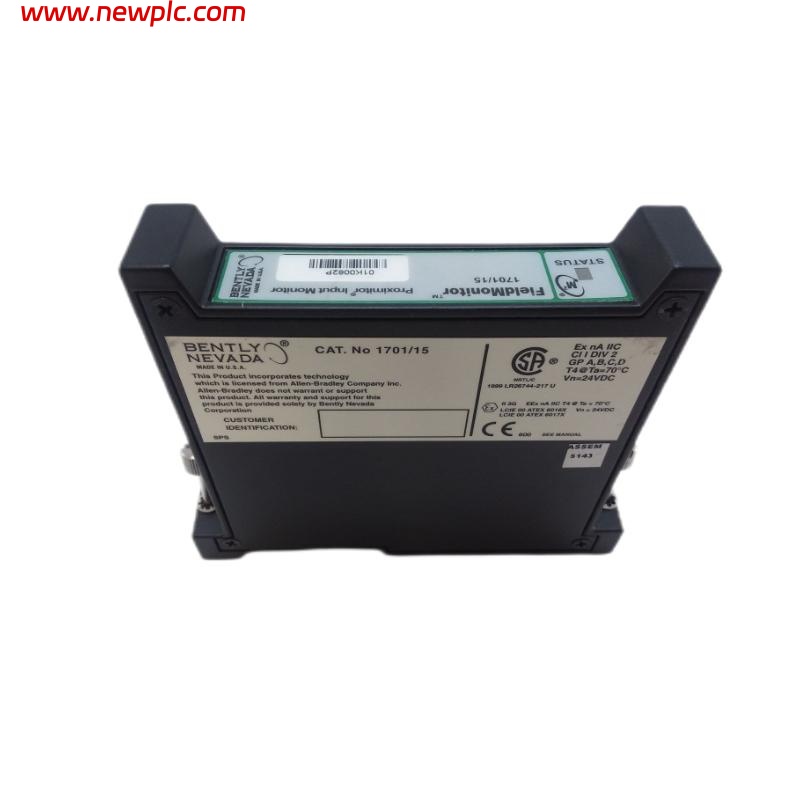

| Model | 1701/15 (1034549‑20) |
| Type | FieldMonitor Proximitor Input Monitor (Radial Vibration & Thrust Position) |
| Channels | 2 |
| Input Type | Signals from proximity probes (via transducer I/O or internal Proximitor module) |
| Power Input | –24 V and +5 V (from FieldMonitor power supply) |
| Power Consumption | 1.5 W (excluding transducer load) |
| Alarm Features | Alarm 1 (Alert), Alarm 2 (Danger) for direct and gap measurements |
| Filter / Bandwidth Options | High-pass corners: 1 Hz, 4 Hz Low-pass corners: 4000 Hz, 600 Hz |
| Full-scale Direct Ranges | e.g. 0–3 mil, 0–5 mil, up to 0–50 mil (selectable) |
| Gap Range / Filtering | Gap full-scale up to 24 V; gap filter –3 dB at 0.09 Hz |
| Accuracy (Direct) | ±1 % of full-scale (excluding filters) |
| Resolution (Direct) | 0.1 % of full-scale |
| Gap Accuracy / Resolution | ±20 mV typical; resolution 1 mV |
| Output / Monitoring | Buffered outputs; Flexbus communication; 30 m cable capacity |
| Isolation / Barriers | Internal galvanic isolation barrier (requires 1701/06) or external barriers optional |
| Dimensions (HxWxD) | 127 mm × 21.6 mm × 105 mm |
| Weight | 0.314 kg |
| Operating Temperature | –20 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Humidity (Operating / Storage) | 5 % to 95 % non‑condensing |
FAQ
FAQ
Q1: What is the function of the 1701/15 module?
A1: It accepts signals from proximity probes, processes them into meaningful vibration and gap measurements, compares to alarm thresholds, and outputs status for monitoring systems.
Q2: How many probes can it monitor?
A2: It supports two channels, each handling one probe input (radial vibration or thrust/gap).
Q3: Can this module measure both vibration and shaft position (gap) simultaneously?
A3: Yes — it can produce both direct (vibration) and gap (gap voltage / position) measurements from the same probe channel, though only Alarm 1 is typically allowed on gap.
Q4: What filtering options are available?
A4: The module features selectable high-pass corners (1 Hz, 4 Hz) and low-pass corners (600 Hz, 4000 Hz) for signal bandwidth control.
Q5: What are the physical dimensions and weight?
A5: The module measures 127 mm × 21.6 mm × 105 mm and weighs approximately 0.314 kg.
Q6: What are the environmental operating limits?
A6: It operates from –20 °C to +70 °C and can be stored in –40 °C to +85 °C, with humidity tolerated up to 95 % non‑condensing.
Q7: Is it self‑diagnostic?
A7: Yes — embedded self-tests monitor internal integrity and connected transducer health, causing a “NOT OK” if issues are detected.
Q8: What installation considerations should be noted?
A8: The internal barrier version requires a 1701/06 Isolator Terminal Base. External barrier schemes can also be used. Ensure proper configuration of alarm setpoints, channel type (vibration or gap), and matching Flexbus communication.
