Technical Specifications
| Item | Specification |
|---|---|
| Model | 170133‑050‑00 |

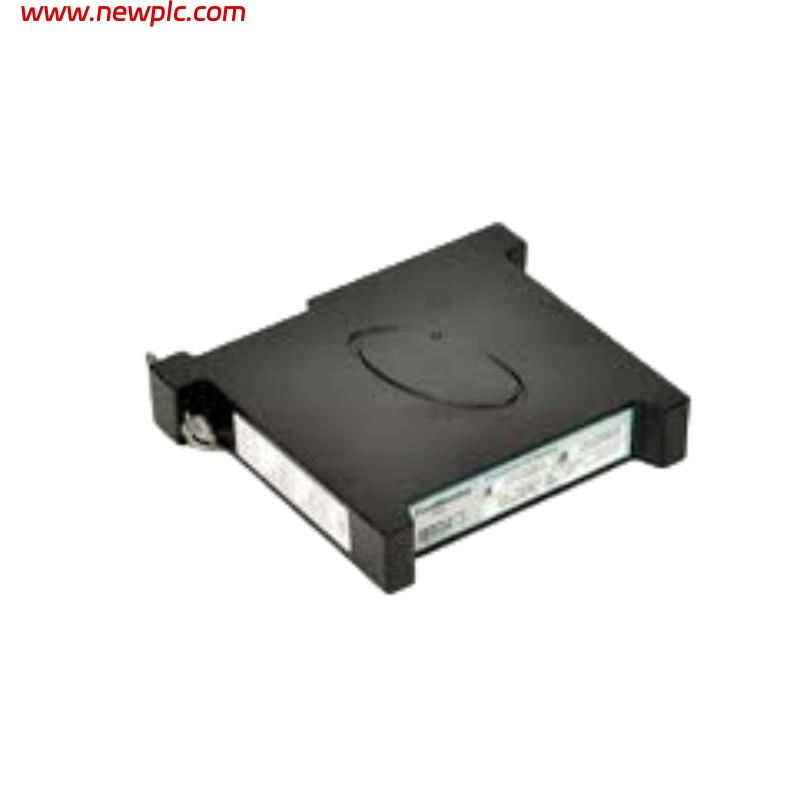

| Type | Internal Proximitor Module |
| System Compatibility | Works with 3300 series proximity probes |
| Scale Factor | 200 mV/mil (≈ 7.87 mV/µm) |
| Calibration Range | 250 µm to 2250 µm (10–90 mil) |
| Frequency Response | 0 to 12.5 kHz (–3 dB at 50 mil gap) |
| Probe DC Resistance | 7.3 Ω + 0.28 Ω/m |
| Cable Resistance | Center: 0.222 Ω/m; Shield: 0.066 Ω/m |
| Cable Capacitance | 69.9 pF/m (≈ 21.3 pF/ft) |
| Minimum Target Size | 15.2 mm (0.6 in) diameter |
| Operating Temperature | –34 °C to +85 °C |
| Storage Temperature | –40 °C to +85 °C |
| Weight | 0.320 kg |
| Dimensions | 24.18 cm × 2.44 cm × 24.13 cm (for module housing) |
FAQ
FAQ
Q1: What is the function of the 170133‑050‑00 module?
A1: It is an internal Proximitor signal conditioning module that interfaces with 3300 series proximity probes to provide displacement (gap) measurement output.
Q2: What probes are compatible with this module?
A2: It supports 3300 series probes, including both 5 mm and 8 mm diameters.
Q3: What is the scale factor for displacement output?
A3: The module provides approximately 200 mV per mil of gap (≈ 7.87 mV per µm).
Q4: What is the usable calibration range?
A4: The module calibrates over 250 µm to 2250 µm (10 to 90 mil range).
Q5: How fast is the response (frequency range)?
A5: It supports bandwidth up to about 12.5 kHz; –3 dB point is near 50 mil gap.
Q6: What are the operating and storage temperature ranges?
A6: Operating from –34 °C to +85 °C, and storage from –40 °C to +85 °C.
Q7: What is the weight and size of the module?
A7: It weighs approximately 0.320 kg, and the housing is about 24.18 cm × 2.44 cm × 24.13 cm.
Q8: How is fault detection handled?
A8: The module provides a fault condition output such that when a probe fault (open/short) occurs, output shifts near 1 V common, signaling a fault state.
