Technical Specifications
| Item | Specification |
|---|---|

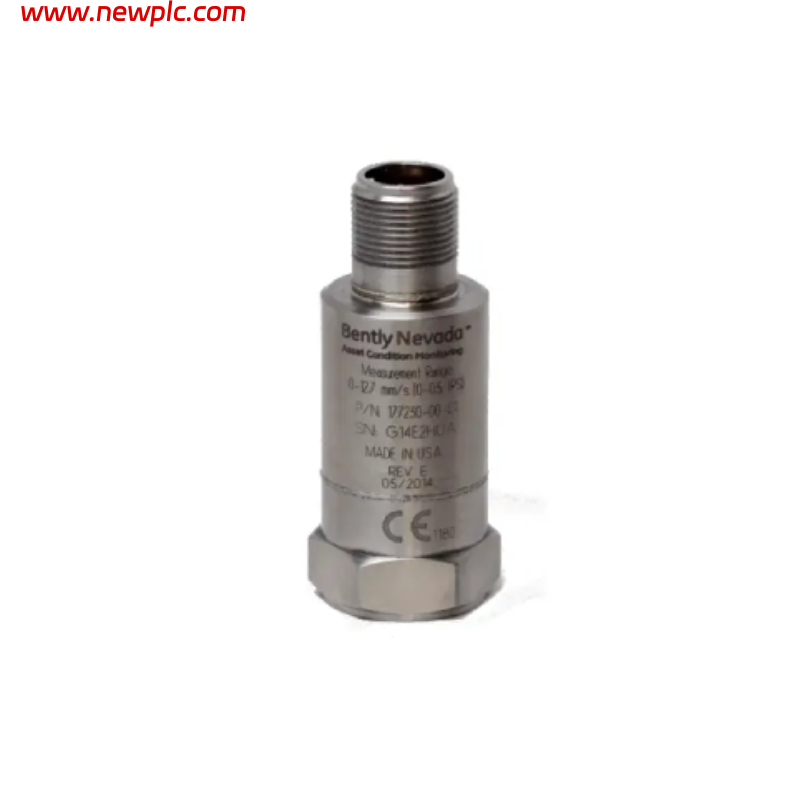

| Model | 177230‑00‑01‑CN |
| Type | Seismic Transmitter (loop-powered) |
| Measurement Range | 0 – 12.7 mm/s (0 – 0.5 in/s) RMS |
| Frequency Range | 10 Hz to 1 kHz RMS |
| Approvals / Options | ATEX / IECEx and Chinese NEPSI hazardous-area certified |
| Diameter | 25.4 mm (1.00 in) |
| Height | 66.0 mm (2.60 in) |
| Case Material | 316L stainless steel |
| Connector | 3‑pin MIL‑C‑5015, 316L stainless steel |
| Mounting Interface | 1/4‑28 UNF threaded mounting hole |
| Weight | 0.131 kg (≈ 0.289 lb) |
| Operating Temperature | –40 °C to +85 °C |
| Relative Humidity | Up to 100 %, non‑submerged service |
| Power / Output | Loop-powered, 4–20 mA output current loop |
FAQ
FAQ
Q1: What is the purpose of the 177230‑00‑01‑CN seismic transmitter?
A1: It monitors machinery vibration and converts motion signals into a standardized 4–20 mA current output for integration with monitoring systems.
Q2: What is the measurement range of this transmitter?
A2: It measures vibration from 0 to 12.7 mm/s (0 to 0.5 in/s) RMS.
Q3: Over what frequencies does it operate?
A3: It operates in a frequency range of 10 Hz to 1 kHz RMS.
Q4: What does the “CN” suffix indicate?
A4: The “CN” signifies ATEX / IECEx and Chinese NEPSI hazardous-area approvals.
Q5: What are the physical dimensions and weight?
A5: Diameter: 25.4 mm; Height: 66.0 mm; Weight: 0.131 kg.
Q6: What are the environmental limits?
A6: Operating temperature: –40 °C to +85 °C; humidity: up to 100 % non-submerged.
Q7: What connector and mounting method are used?
A7: 3‑pin MIL‑C‑5015 connector; mounts with a 1/4‑28 UNF threaded hole.
Q8: How is it powered, and what output does it provide?
A8: The transmitter is loop-powered and outputs a 4–20 mA signal for vibration monitoring.
