Technical Specifications
| Item | Specification |
|---|---|
| Model | 177230‑01‑01‑00 |

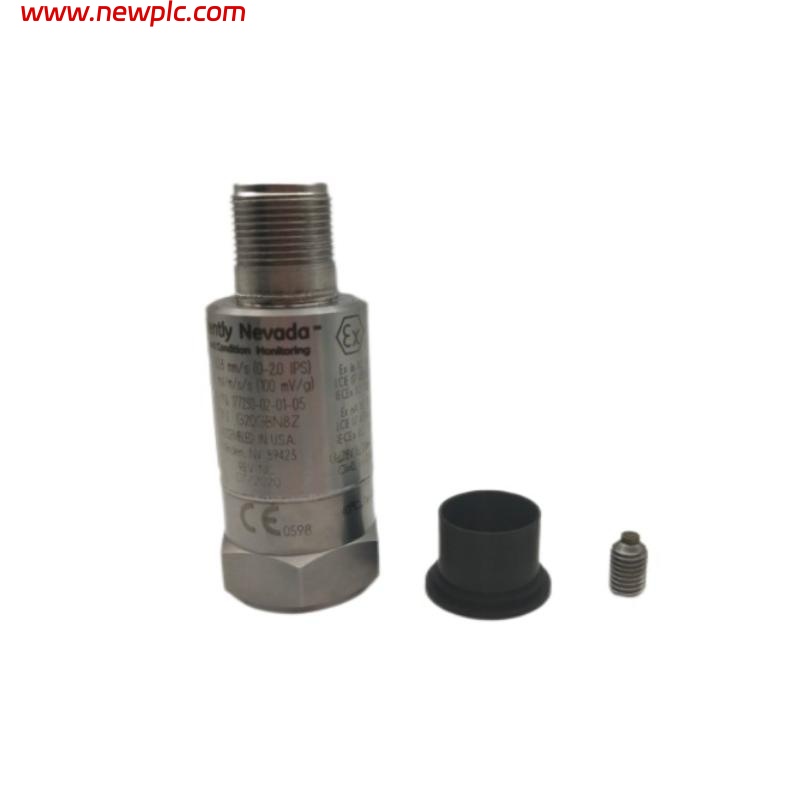

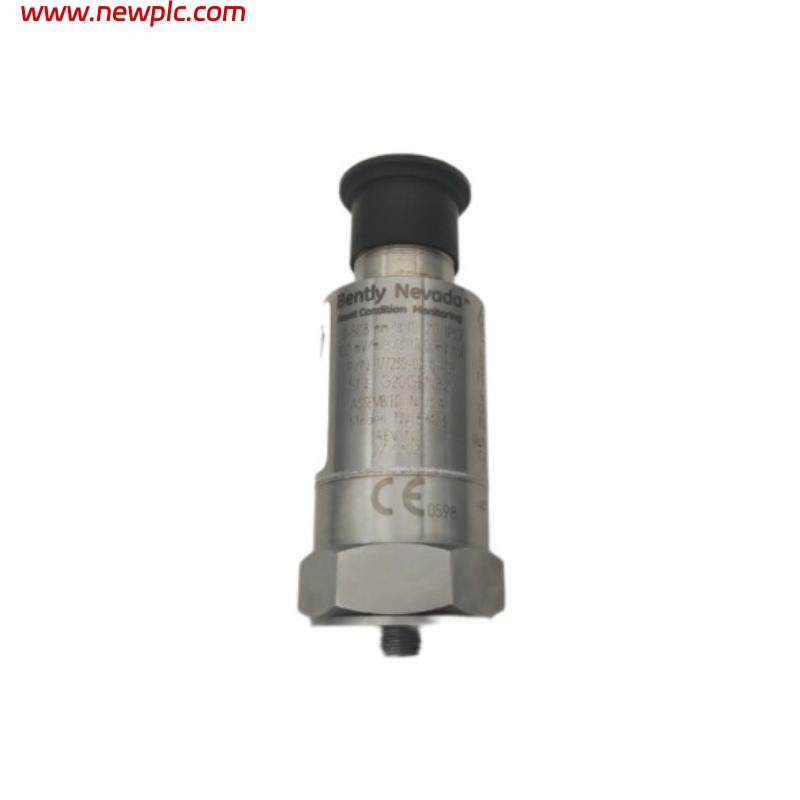

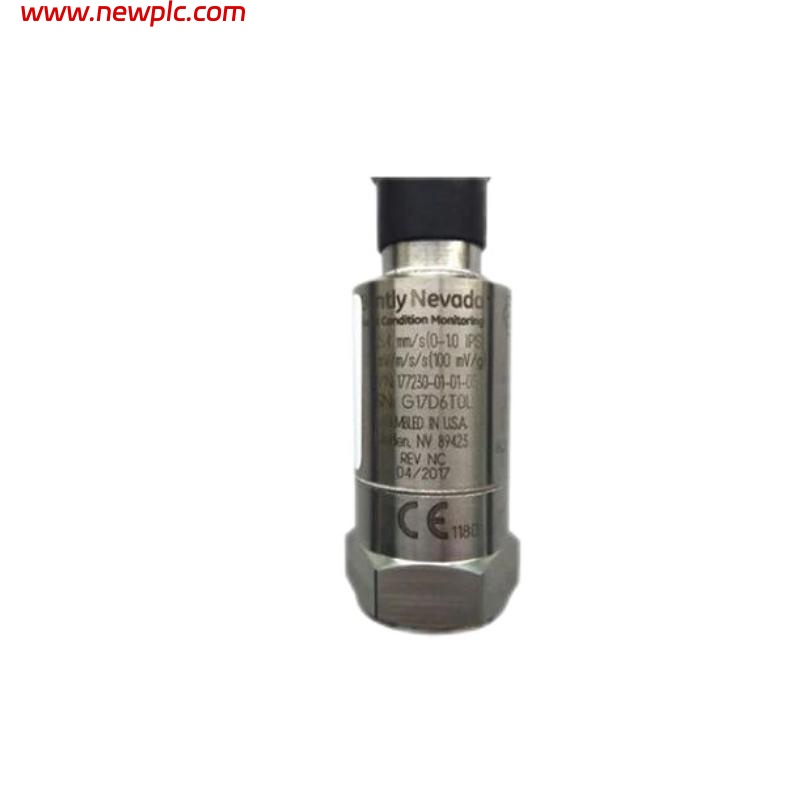

| Type | Loop‑powered Seismic Transmitter |
| Measurement Range (Velocity) | 0 to 12.7 mm/s RMS (0 to 0.5 in/s RMS) |
| Alternate Ranges | 0 to 25.4 mm/s, 0 to 50.8 mm/s (option variants) |
| Frequency Response | 10 Hz to 1 kHz (±10 %) |
| Excitation Voltage | 12 to 30 V DC, current limited to 40 mA |
| Settling Time | < 15 seconds to within 2 % of final value |
| Output (Loop) | 4 to 20 mA current loop (velocity signal) |
| Dynamic Output (Voltage) | Unbuffered acceleration signal via Pin C (voltage, referenced to Pin B) |
| Output Bias (Voltage signal) | 2.5 V ± 0.1 V |
| Linearity | ±1 % |
| Isolation & Dielectric | Insulation resistance > 10^8 Ω; breakdown voltage ≥ 600 V RMS |
| Transverse Sensitivity | < 5 % of primary sensitivity |
| Material / Housing | 316L stainless steel |
| Connector | 3‑pin MIL‑C‑5015 stainless steel |
| Mounting | 1/4‑28 UNF threaded mounting hole (adapters for M6, M8 available) |
| Physical Dimensions | Diameter: 25.4 mm (1.00 in); Height: 66.0 mm (2.60 in) |
| Weight | ~0.131 kg (131 g) |
| Operating Temperature | –40 °C to +85 °C |
| Relative Humidity | Up to 100 % non‑submerged service |
FAQ
FAQ
Q1: What is the purpose of the 177230‑01‑01‑00 transmitter?
A1: It is a seismic transmitter that converts vibration (velocity) from rotating machinery into a 4–20 mA signal for use in PLC, DCS or SCADA systems.
Q2: What measurement ranges are supported?
A2: The standard range is 0 to 12.7 mm/s RMS, with optional ranges up to 25.4 mm/s or 50.8 mm/s depending on variant.
Q3: What is the frequency response of the device?
A3: It operates across 10 Hz to 1 kHz with ±10 % accuracy over that band.
Q4: What output signals does it provide?
A4: It provides a 4–20 mA loop output for velocity plus an unbuffered voltage output for acceleration (via Pin C).
Q5: What physical size and weight does the transmitter have?
A5: It is 25.4 mm in diameter, 66.0 mm tall, and weighs approximately 0.131 kg.
Q6: What is the required supply voltage?
A6: The device requires 12 to 30 V DC, with current limited to 40 mA max.
Q7: How does the transmitter handle signal faults or overloads?
A7: Its built-in isolation and protected interface help prevent ground faults; the dynamic signal (Pin C) must remain isolated from loop return or it can short.
Q8: What environmental limits and certifications apply?
A8: It operates from –40 °C to +85 °C, tolerates 100 % humidity (non‑submerged), and is built for industrial use with standard isolation and reliability features.
If you need the precise variant’s calibration, hazardous area certification, or wiring details, I can extract those from the datasheet for you.
