Technical Specifications
| Item | Specification |
|---|---|
| Model | 177230‑01‑01‑RU |

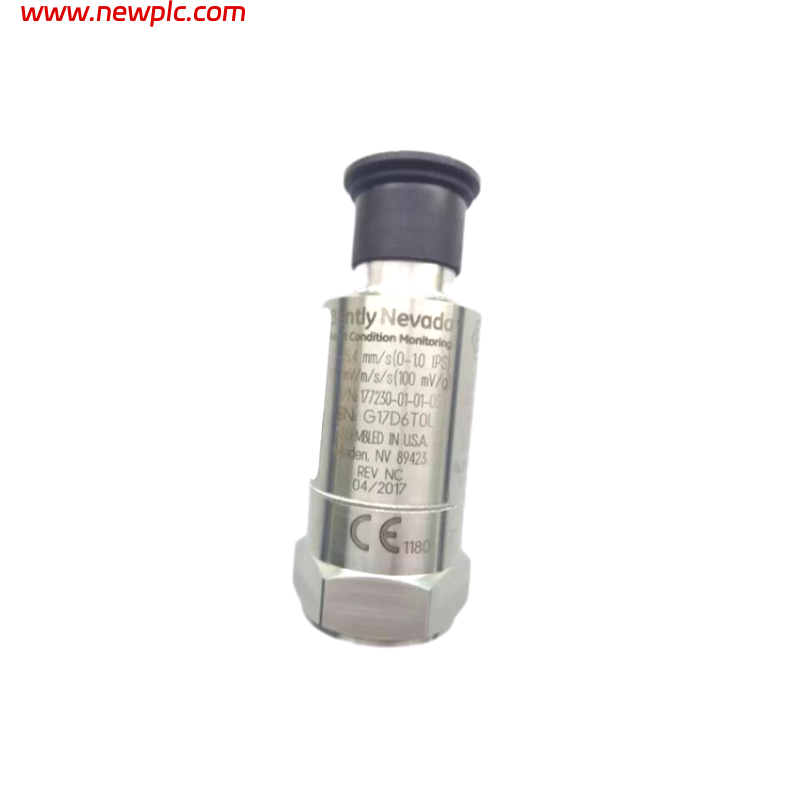

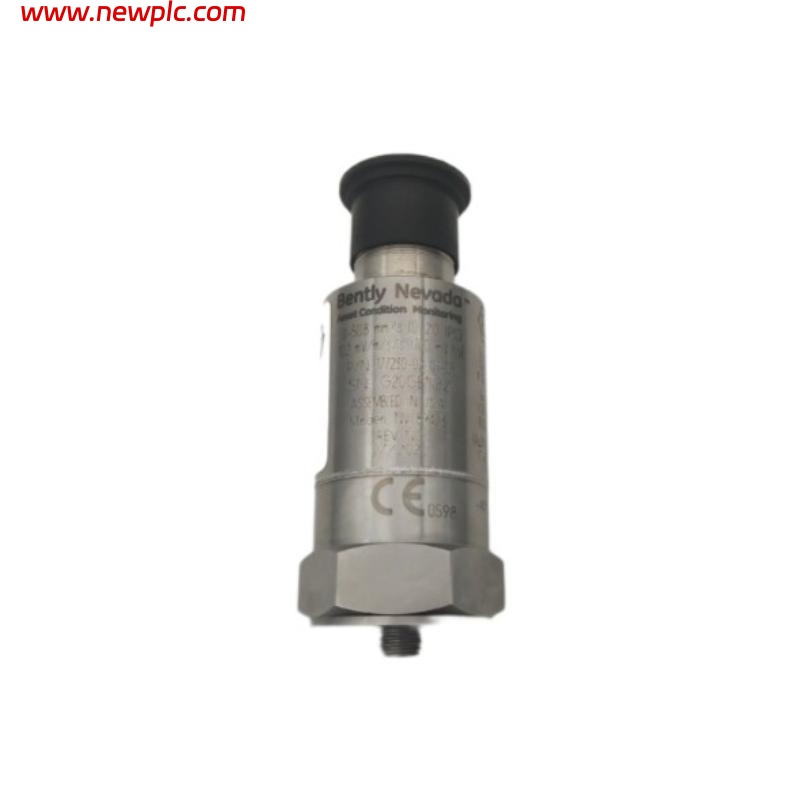

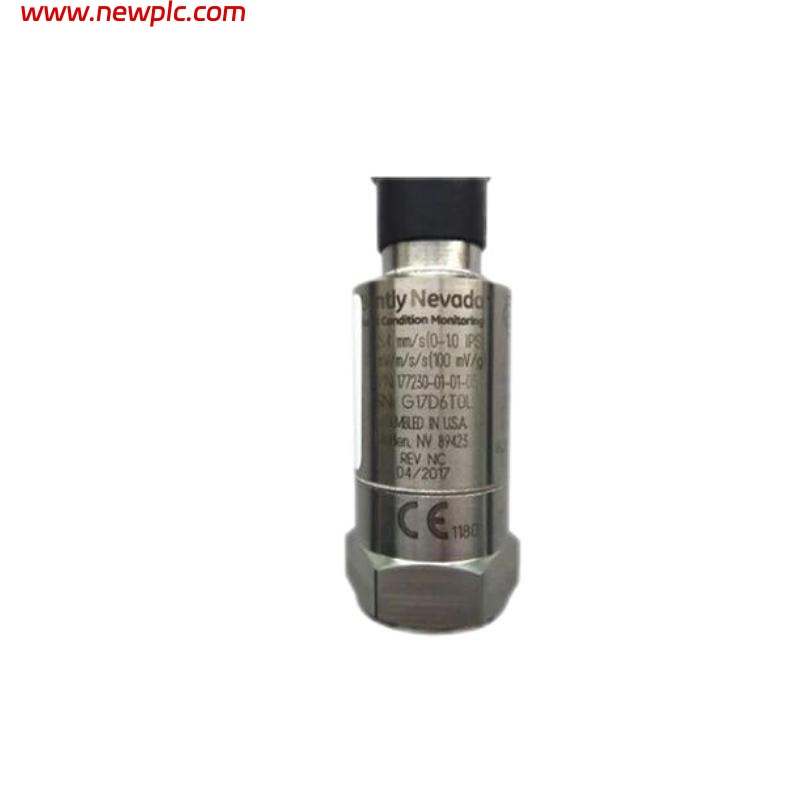

| Type | Loop‑powered Seismic Transmitter |
| Measurement Range (Velocity) | 0 to 12.7 mm/s RMS (0 to 0.5 in/s) |
| Alternate Velocity Ranges | 0 to 25.4 mm/s, 0 to 50.8 mm/s (configurable) |
| Frequency Response (Velocity) | 10 Hz to 1 kHz ±10 % |
| Excitation / Supply Voltage | 12 to 30 V DC (current-limited) |
| Output (Main Loop) | 4 to 20 mA current loop (velocity signal) |
| Dynamic / Acceleration Output | Unbuffered voltage via Pin C (referenced to loop return) |
| Sensitivity (Dynamic) | 10.2 mV / (m/s²) ±20 % |
| Output Bias (Dynamic) | 2.5 V ± 0.1 V (referenced to loop return) |
| Linearity (Velocity Signal) | ±1 % of full scale |
| Isolation / Dielectric | >10⁸ Ω; withstand 600 Vrms insulation test |
| Transverse Sensitivity | < 5 % of primary sensitivity |
| Mounting / Connector | 1/4‑28 UNF stud; 3‑pin MIL‑C‑5015 stainless connector |
| Dimensions | Diameter: 25.4 mm (1.00 in) • Height: 66.0 mm (2.60 in) |
| Weight | ~ 0.131 kg |
| Operating Temperature | –40 °C to +85 °C |
| Relative Humidity | Up to 100 % non‑submerged |
FAQ
FAQ
Q1: What is the 177230‑01‑01‑RU used for?
A1: It is a seismic transmitter used to convert vibration (velocity) into a 4‑20 mA signal for use in control, monitoring, or PLC/DCS systems.
Q2: What does the “RU” suffix imply?
A2: The “RU” typically denotes a regional or regulatory variant (e.g. Russian or custom approval), with the functionality otherwise matching standard 177230 transmitters.
Q3: What is the velocity measurement range?
A3: The baseline range is 0 to 12.7 mm/s RMS; optional ranges up to 25.4 mm/s or 50.8 mm/s are configurable.
Q4: What output signals are available?
A4: The device outputs a 4–20 mA current loop signal for velocity. It also provides an unbuffered voltage signal for acceleration via a third pin.
Q5: What are the physical size and weight?
A5: It is about 25.4 mm in diameter, 66 mm in height, and weighs approximately 0.131 kg.
Q6: What are the supply requirements?
A6: It requires 12 to 30 V DC input, with current limited typically to 40 mA.
Q7: What environmental conditions can it tolerate?
A7: It operates from –40 °C to +85 °C and supports full humidity (non‑submerged) operation.
Q8: How does it detect or manage faults?
A8: The module includes self-test and protected interface features; the dynamic signal line must remain isolated, or the loop could be compromised.
