Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 190501-01-99-01 |

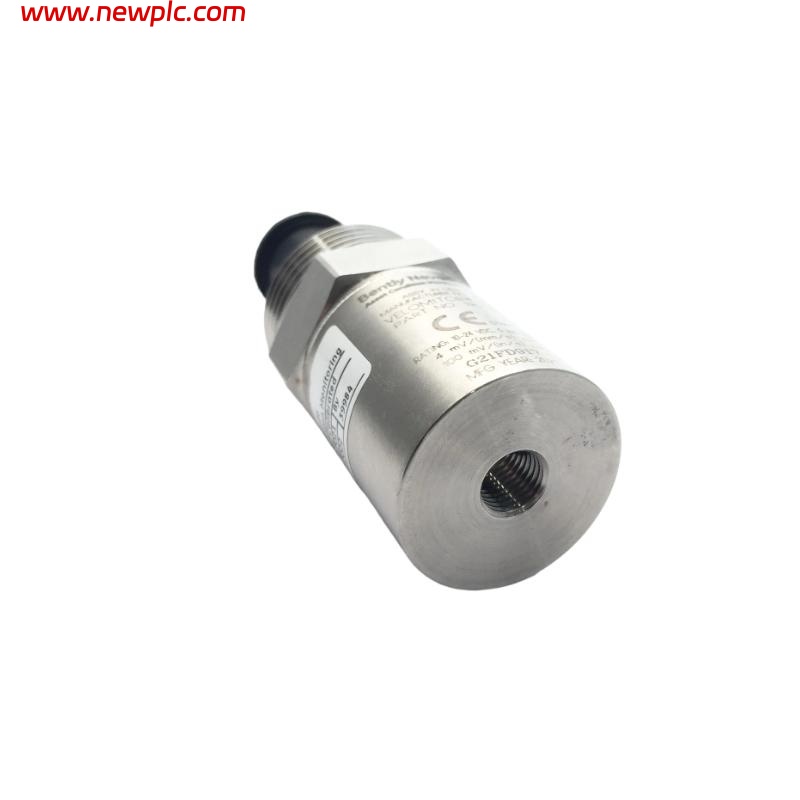

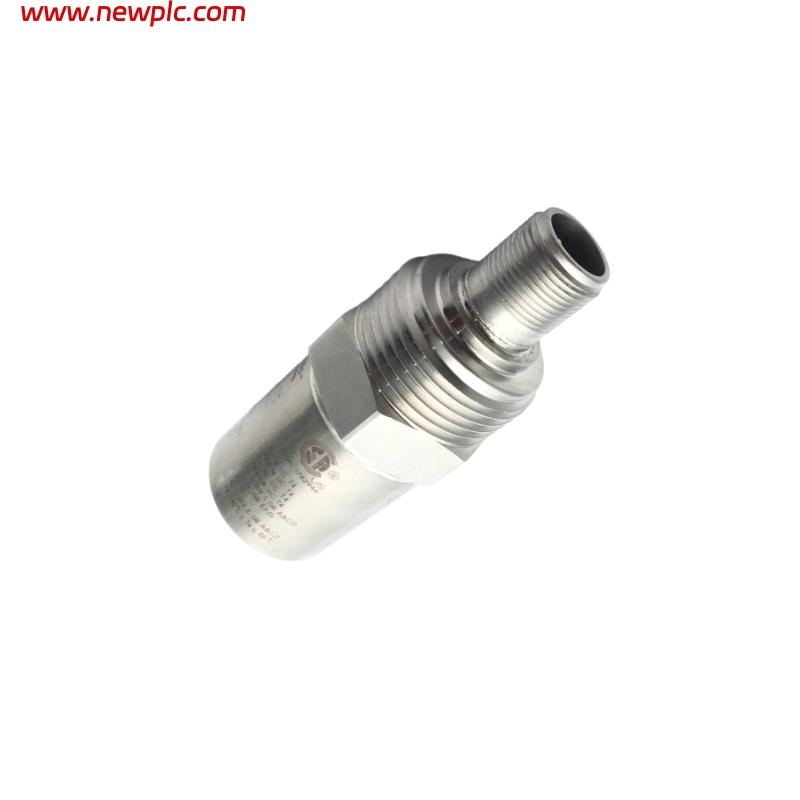

| Type | Velomitor CT Velocity Sensor |
| Measurement Principle | Piezoelectric velocity detection |
| Sensitivity | 100 mV/in/s (±10%) |
| Frequency Response | 4.5 Hz ~ 5 kHz (±3 dB) |
| Measurement Range | 0 ~ 50 mm/s (peak) |
| Transverse Sensitivity | ≤ 5% |
| Output Type | Voltage output (constant current powered) |
| Power Requirements | 18 ~ 30 V DC, 2 ~ 10 mA constant current |
| Mounting Thread | 1/4-28 UNF or M8 x 1.25 |
| Housing Material | Stainless steel |

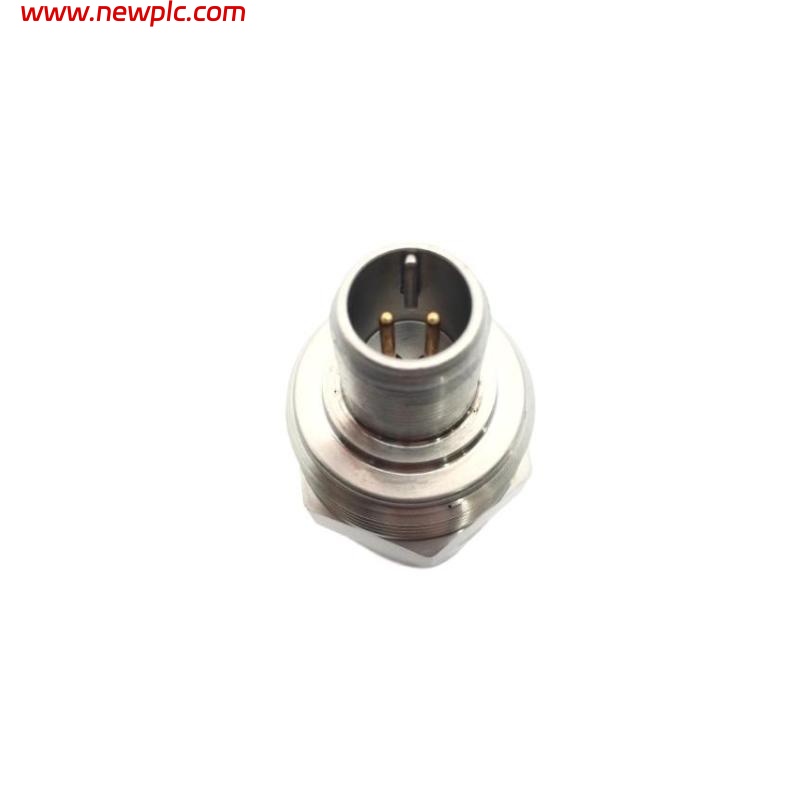

| Connection Type | MIL-C-5015 2-pin connector |
| Operating Temperature | -54 ~ +100 °C |
| Storage Temperature | -55 ~ +120 °C |
| Relative Humidity | 95% (non-condensing) |
| Dimensions | Sensor diameter 33 mm |
| Weight | 0.297 kg |
FAQ
FAQ
QA1: What is the main application of the 190501-01-99-01?
It is used to measure vibration velocity on machinery housings such as motors, pumps, and compressors for condition monitoring and diagnostics.
QA2: What is the output type of this sensor?
It provides a voltage output and requires constant current excitation (2 ~ 10 mA).
QA3: What is the sensor sensitivity?
The sensitivity is 100 mV/in/s (±10%).
QA4: What is the frequency response range?
Frequency response is 4.5 Hz to 5 kHz (±3 dB).
QA5: What are the power requirements?
Operates on 18 ~ 30 V DC with a constant current of 2 ~ 10 mA.
QA6: What is the operating temperature range?
Operating temperature range is -54 ~ +100 °C.
QA7: What are the dimensions and weight?
Sensor diameter 33 mm, and weight is 0.297 kg.
QA8: What is the protection rating of this sensor?
The protection rating is IP65, suitable for harsh industrial environments.
