Technical Specifications
| Item | Specification |
|---|---|

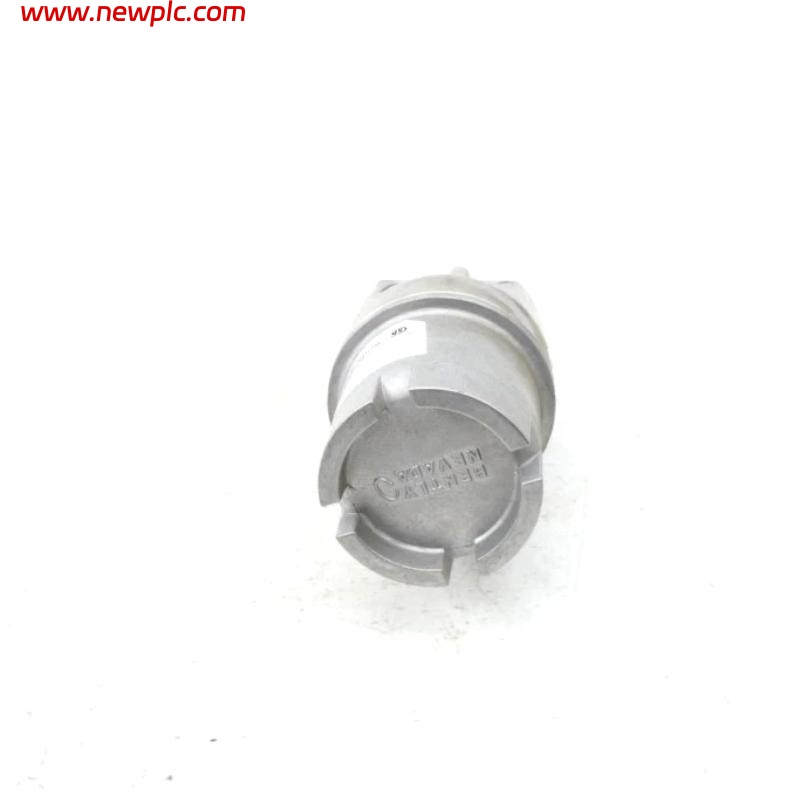

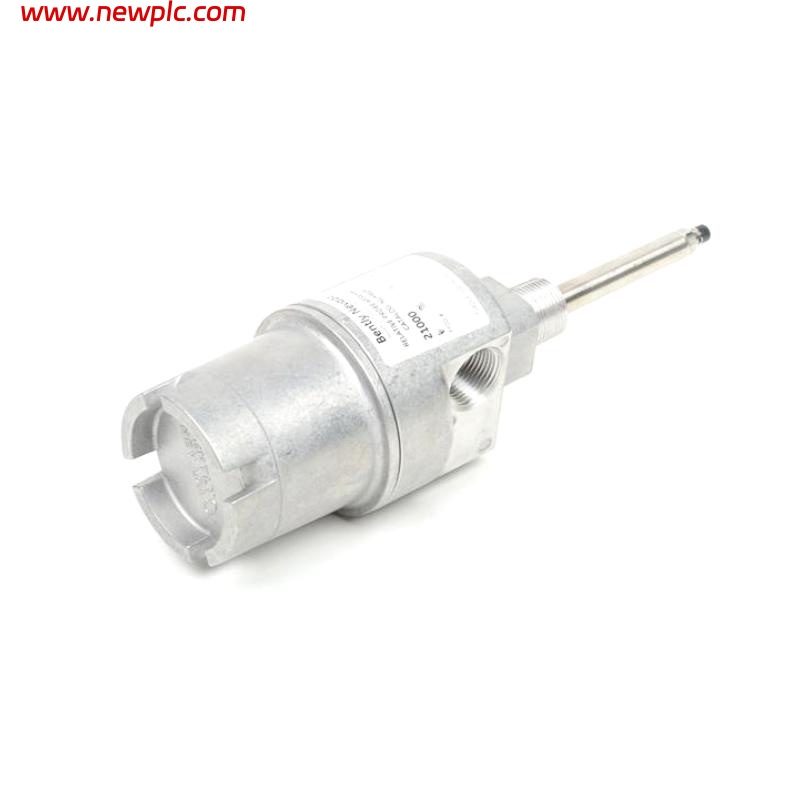

| Model | 24701-16-10-00-090-03-02 |
| Type | Eddy-Current Displacement Sensor (Proximitor Type) |
| Measurement Principle | Eddy-current technology |
| Measurement Range | 0–2 mm (typical) |
| Sensitivity | 8 mV/µm (typical) |
| Frequency Response | DC to 10 kHz |
| Housing Material | Stainless steel |
| Mounting Method | Threaded installation |
| Protection Rating | IP65 |
| Application Environment | Industrial, oil-resistant, high-vibration environments |
| Matching Components | Compatible with Bently Nevada 3300/3500 Proximitor systems |
| Applications | Shaft vibration monitoring, displacement and position measurement |
| Dimensions | Sensor head diameter ~8 mm, overall length ~90 mm |
| Weight | ~0.26 kg |
FAQ
FAQ
Q1: What does the part number “24701-16-10-00-090-03-02” represent?
It designates a Bently Nevada eddy-current displacement sensor designed for vibration and displacement monitoring in rotating machinery.
Q2: What sensing principle does it use?
The sensor uses eddy-current technology to measure the gap between the probe and a conductive surface.
Q3: What is the measurement range of this model?
It typically measures displacement within a range of 0–2 mm.
Q4: What are the sensor’s physical dimensions and weight?
The probe head diameter is approximately 8 mm, with an overall length of about 90 mm and a weight near 0.26 kg.
Q5: How is this sensor mounted?
It features a threaded installation design for secure, precise mounting on machinery.
Q6: What environments can it operate in?
It is suitable for industrial applications, including areas with oil exposure, vibration, and temperature variation, rated IP65.
Q7: Which systems is this sensor compatible with?
It is compatible with Bently Nevada 3300 and 3500 Proximitor systems.
Q8: What are the main applications of this sensor?
It is primarily used for shaft vibration detection, radial displacement measurement, and predictive maintenance in rotating equipment.
