Technical Specifications
| Parameter | Details |
|---|---|

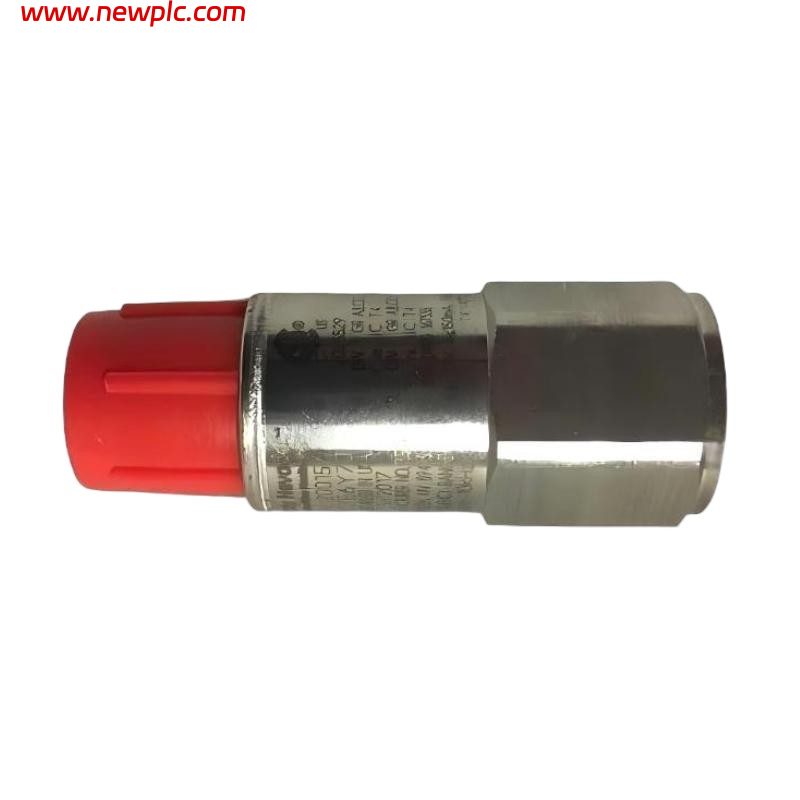

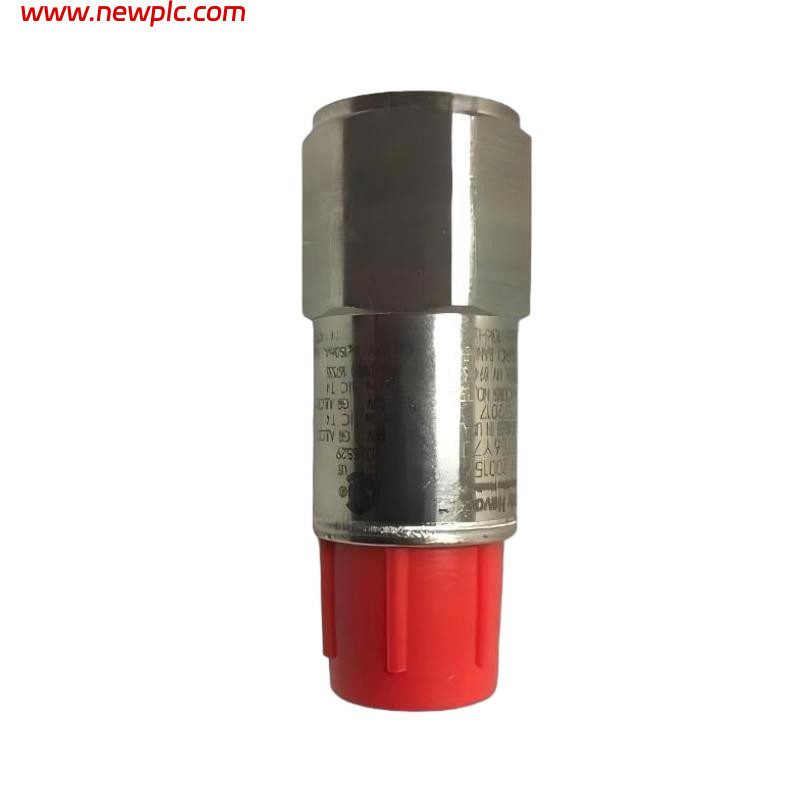

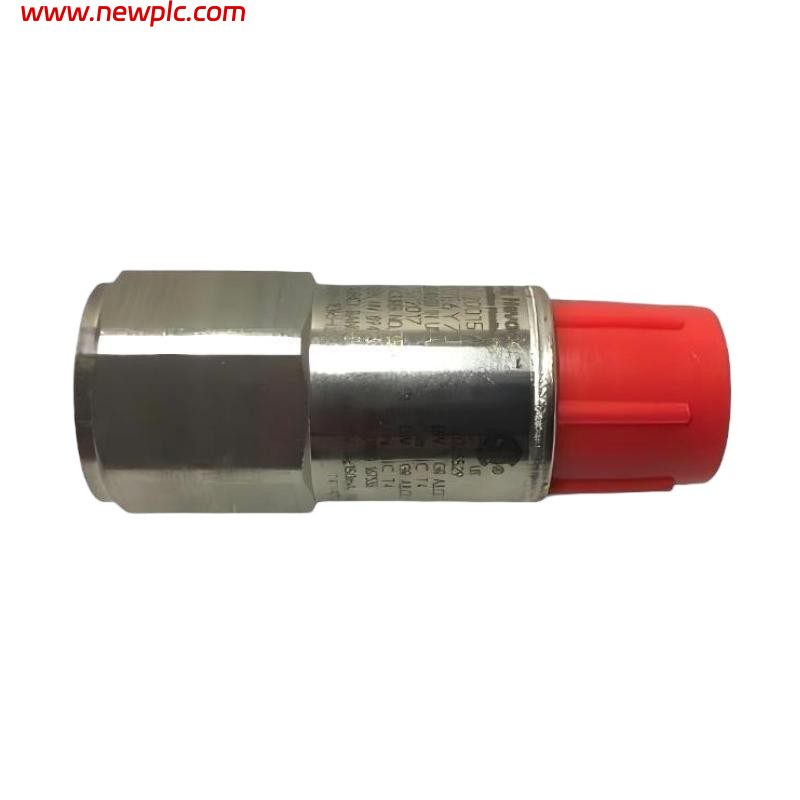

| Manufacturer | Bently Nevada |
| Product Number | 200157-22-CN |
| Product Type | Accelerometer |
| Product Series | 200157 Accelerometer |
| Product Family | Trendmaster Pro / Trendmaster 2000 |
| Application | Roller-element bearing vibration monitoring and acceleration enveloping |
| Measurement Principle | Piezoelectric vibration sensing |
| Sensing Element | Ceramic |
| Sensing Geometry | Shear |
| Sensitivity | 10.2 mV/(m/s²), nominally 100 mV/g |
| Measurement Range | ±245 m/s² (±25 g) |
| Frequency Range | 10 Hz to 10 kHz |
| Mounted Resonant Frequency | >20 kHz |
| Amplitude Linearity | ±2% from 1 to 10 g peak |
| Transverse Sensitivity | ≤7% |
| Excitation Voltage | 4.7–5.5 V DC |
| Quiescent Current | <800 μA |
| Output Bias Voltage | +2.5 ±0.23 V DC |
| Electrical Isolation | 600 Vrms |
| Axial Shock Limit | 49,050 m/s² peak (5,000 g peak) |
| Operating Temperature | -40 to +105°C (-40 to +221°F) |
| Relative Humidity | 100% RH, condensing, non-submerged |
| Housing Material | 316L stainless steel |
| Mounting Thread | 3/8-24 female |
| Mounting Torque | 2.7–6.8 N·m (2–5 ft·lbf) |
| Electrical Connector | 5-pin, 1/2-20 |
| Cable | 4-conductor, 22 AWG with braided shield and drain wire |
| Maximum Cable Length | 25 m (82 ft) |
| Compatible Monitoring Systems | Trendmaster 2000, Trendmaster Pro, compatible ProTIM systems |
| Dimensions | 17.5 mm hex × 45.7 mm height |
| Weight | Approx. 0.058 kg (58 g) |
| Origin | USA |
FAQ
FAQ
Q1: What is the Bently Nevada 200157-22-CN used for?
A: The 200157-22-CN is used for vibration monitoring on industrial machinery. It is particularly suited to roller-element bearing monitoring and applications where acceleration enveloping is required.
Q2: What is the measurement range of the 200157 accelerometer?
A: The accelerometer has a measurement range of ±245 m/s² (±25 g), with a nominal sensitivity of 100 mV/g at 80 Hz.
Q3: What is the frequency range of the 200157-22-CN?
A: The specified frequency range is 10 Hz to 10 kHz, making the sensor suitable for a broad range of machinery vibration measurements.
Q4: What type of sensing element does the 200157 use?
A: The 200157 uses a ceramic piezoelectric sensing element with shear sensing geometry. This construction is intended for reliable vibration measurement in demanding industrial environments.
Q5: What mounting thread does the 200157-22-CN have?
A: The accelerometer has a 3/8-24 female mounting thread. The recommended mounting torque is 2.7–6.8 N·m (2–5 ft·lbf).
Q6: What operating temperature range does the 200157-22-CN support?
A: The specified operating temperature range is -40°C to +105°C (-40°F to +221°F). The sensor also has a hermetically sealed stainless-steel construction for harsh industrial environments.
Q7: What are the dimensions and weight of the 200157-22-CN?
A: The accelerometer measures approximately 17.5 mm hex × 45.7 mm height and has a typical weight of approximately 0.058 kg (58 g).
Q8: Which monitoring systems are compatible with the 200157-22-CN?
A: The 200157 accelerometer is designed for use with Trendmaster Pro systems and can also be used with compatible Bently Nevada ProTIM and related acceleration-to-velocity monitoring equipment.
