Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Product Number | 330851-02-000-040-50-00-05 |

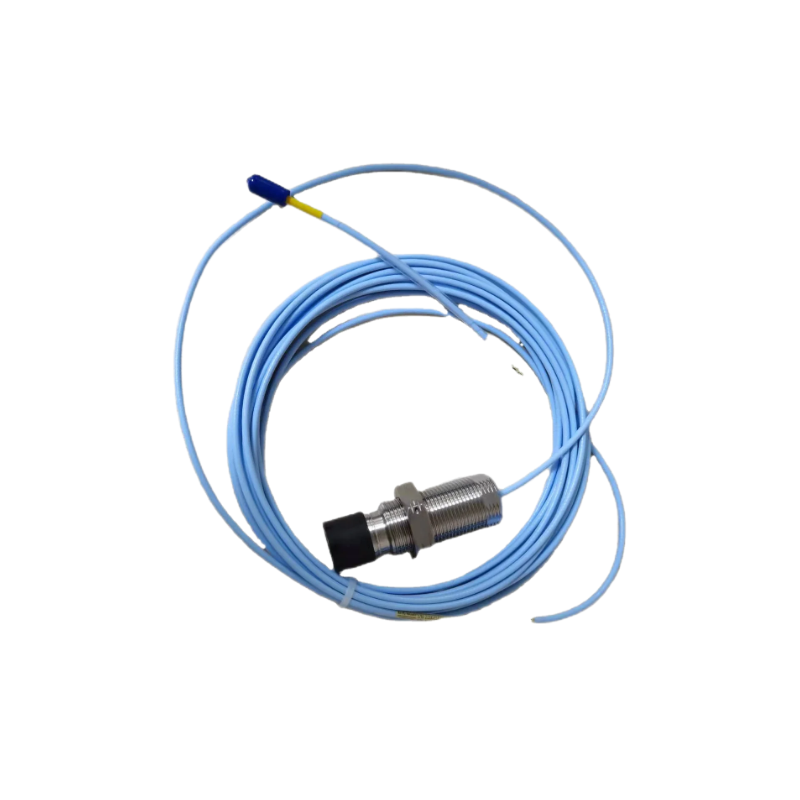

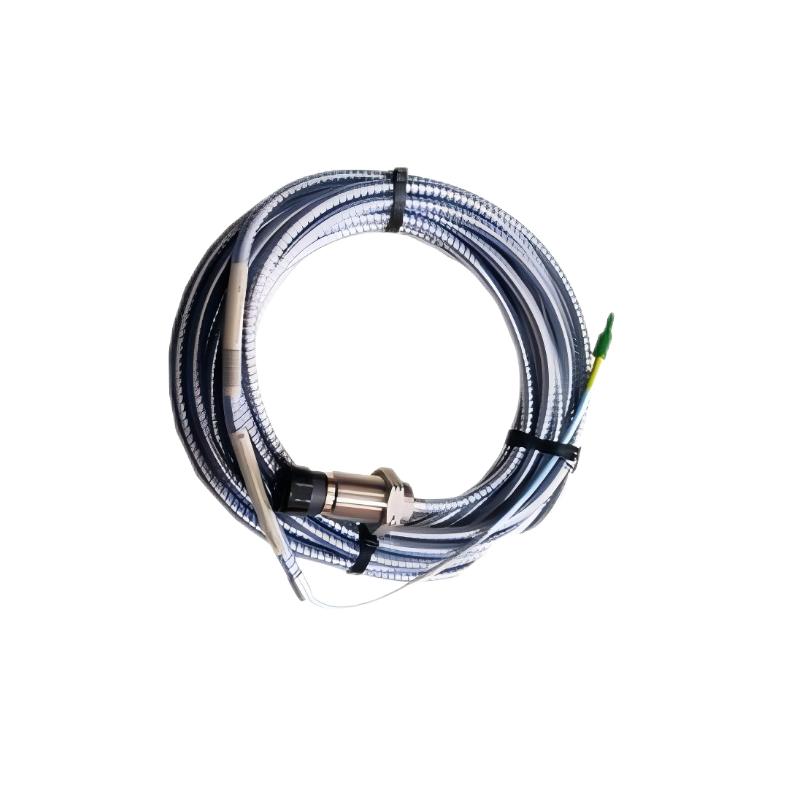

| Product Type | 3300 XL 25 mm Proximity Probe |
| Product Series | 3300 XL 25 mm |
| Measurement Principle | Eddy-current, non-contact displacement measurement |
| Probe Diameter | 25 mm |
| Probe Thread | M30 × 2 |
| Probe Case Length | 40 mm |
| Electrical System Length | 5.0 m (16.4 ft) |
| Cable Armor | No armor |
| Cable Type | 75 Ω triaxial cable |
| Output | Approximately 7.87 V/mm (200 mV/mil), nominal |
| Operating Temperature | -35 to +200°C (-31 to +392°F) |
| Short-Term Temperature | Up to approximately +250°C, depending on installation conditions |
| Probe Material | Stainless steel |
| Application | Shaft vibration, radial/axial displacement, speed and phase-reference measurement |
| Typical Application | Steam turbines and other high-temperature rotating machinery |
| Agency Approvals | Multiple agency approvals |
| Mounting | Threaded installation |
| Compatible System | Bently Nevada 3300 XL 25 mm Proximity Transducer System |
| Dimensions | Approx. 81.3 × 50 × 63.5 mm |
| Weight | Approx. 0.323 kg |
| Origin | USA |
FAQ
FAQ
Q1: What is the Bently Nevada 330851-02-000-040-50-00-05 used for?
A: It is a non-contact eddy-current proximity probe used to measure shaft vibration and displacement on rotating machinery. It can also be used for speed and phase-reference measurements.
Q2: What series does the 330851-02-000-040-50-00-05 belong to?
A: It belongs to the Bently Nevada 3300 XL 25 mm Proximity Probe family. The 330851 model is specifically identified as a 3300 XL 25 mm proximity probe.
Q3: What is the thread size of this proximity probe?
A: The probe uses an M30 × 2 thread. The “-02” configuration identifies the metric threaded probe tip configuration.
Q4: What is the electrical system length?
A: This configuration has a 5.0 m (16.4 ft) electrical system length. The “50” portion of the ordering code identifies the 5.0 m length.
Q5: Does this probe have armored cable?
A: No. The “-00-“ cable option indicates that this configuration is supplied without cable armor.
Q6: Can the 330851-02-000-040-50-00-05 be used in high-temperature applications?
A: Yes. This configuration is designed for demanding high-temperature applications and is rated for continuous operation up to approximately +200°C, with short-term temperatures reaching approximately +250°C under specified conditions.
Q7: What are the dimensions and weight of the 330851-02-000-040-50-00-05?
A: The listed product dimensions are approximately 81.3 × 50 × 63.5 mm, with a weight of approximately 0.323 kg.
Q8: Is the 330851-02-000-040-50-00-05 suitable for steam turbine monitoring?
A: Yes. The 3300 XL 25 mm probe family is commonly used for turbine and other rotating-machinery applications where a larger probe diameter and high-temperature capability are required. The 40 mm configuration is specifically listed for high-temperature steam environments.
