Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Bently Nevada |

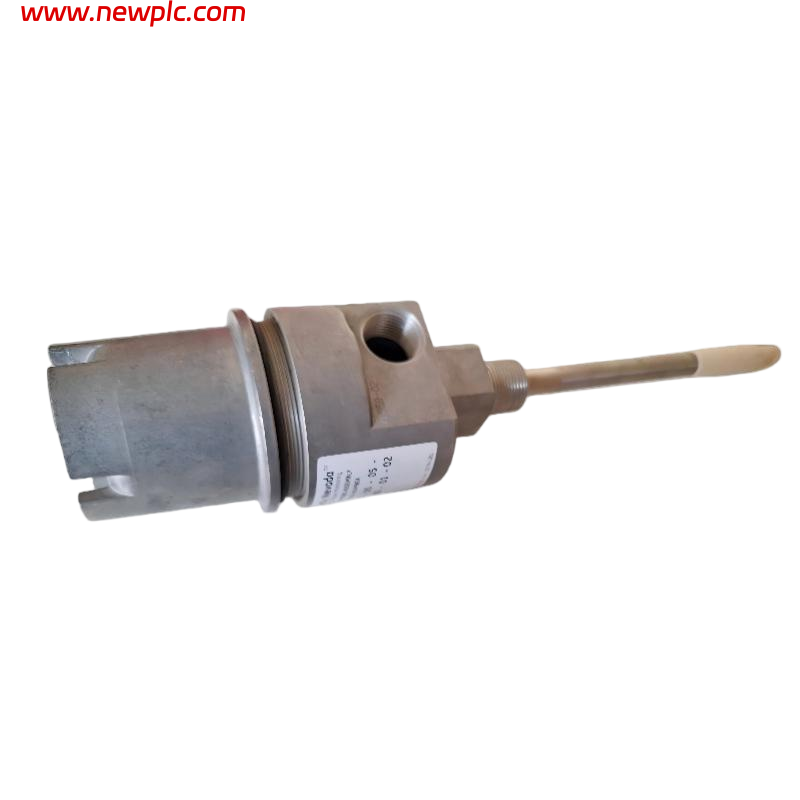

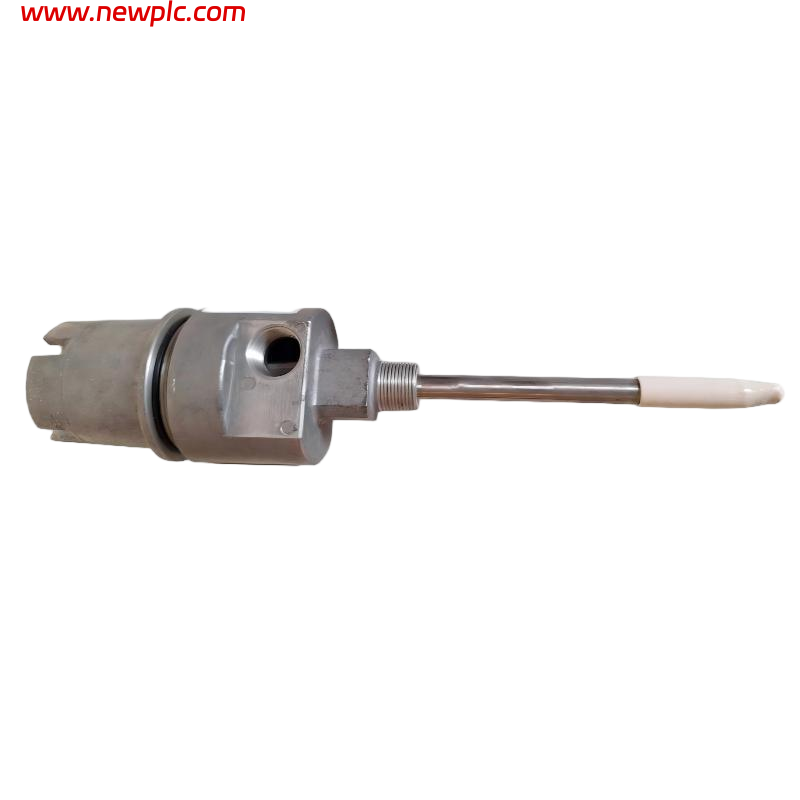

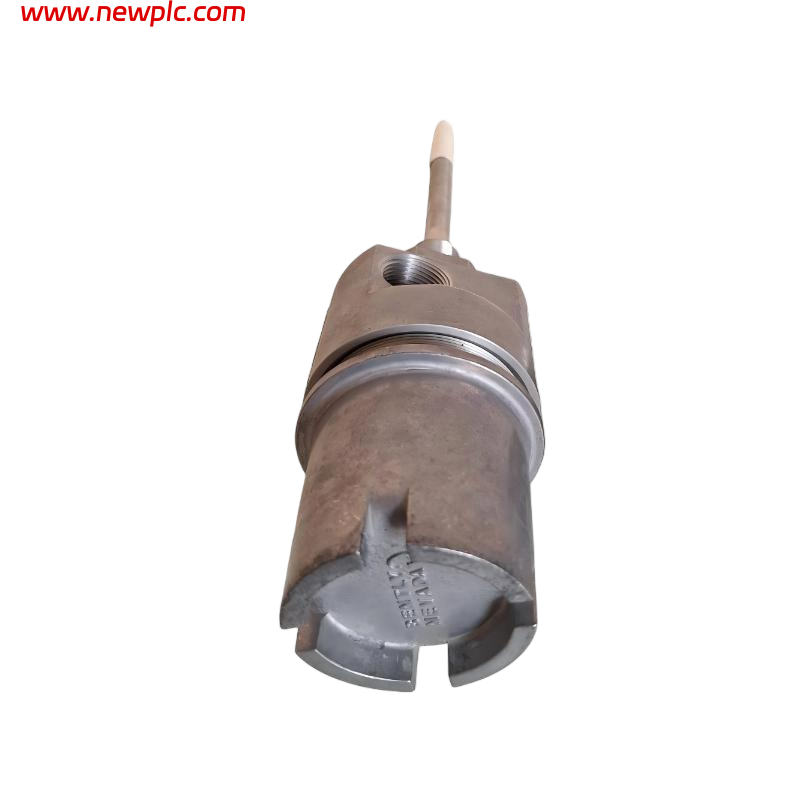

| Product | Bently Nevada 24701 Proximity Housing Assembly |
| Product Model Code | 24701‑28‑05‑XX‑014‑04‑XX (example configuration suffixes vary) |
| Product Type | Proximity Probe Housing Assembly |
| Compatible Probe | 3300 XL 8 mm proximity transducer |
| Cable Length | 0.5 m (20 in) |
| Standoff Adapter | None (‑00) or configuration dependent |
| Probe Penetration | 14 in (penetration sleeve length) |
| Fittings | One 3/4‑14 NPT plug (basic fittings) |
| Mounting Thread | 3/4‑14 NPT typical |
| Housing Body Material | 303 stainless steel |
| Sleeve Material | 304 stainless steel |
| Operating Temperature Range | –40 °C to +120 °C typical industrial range |
| Environmental Protection | Stainless steel rugged housing for industrial conditions |
| Dimensions (Overall) | Maximum length ~343 mm (13.5 in) including penetration sleeve |
| Weight | ~1.8 kg (4.1 lb) without additional fittings |
| Compliance | Designed for industrial machinery condition monitoring systems (API and vibration monitoring environments) |
FAQ
FAQ
Q1: What is the purpose of this 24701 housing assembly?
A1: It provides a rugged, externally‑mounted housing for a Bently Nevada 3300 XL proximity probe, enabling precise shaft vibration and position measurement in industrial machinery.
Q2: Which proximity probe does this assembly support?
A2: It supports the 3300 XL 8 mm series proximity transducers, with integrated connector and seal provisions.
Q3: What penetration depth does this model have?
A3: This configuration has a 14 inch penetration sleeve, providing extended reach into bearing housings or machine surfaces.
Q4: What materials are used in the housing construction?
A4: The housing body is made of 303 stainless steel, and the probe sleeve is 304 stainless steel for corrosion durability.
Q5: What environmental conditions can it withstand?
A5: The assembly is designed for industrial conditions with a wide temperature range and rugged construction; specific ratings depend on installation details.
Q6: How is this housing mounted?
A6: It mounts using a standard 3/4‑14 NPT threaded connection on machinery housing or sensor adaptor blocks.
Q7: Does the assembly include all fittings?
A7: Basic configurations include one 3/4‑14 NPT plug; additional fittings are dependent on suffix code and ordering options.
Q8: What is the typical overall size and weight?
A8: The full assembly extends roughly 343 mm (13.5 in) in length and weighs about 1.8 kg without extra fittings or adapters.
