Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Bently Nevada 24701‑28‑10‑00‑110‑03‑02 |
| Product Model | 24701‑28‑10‑00‑110‑03‑02 |

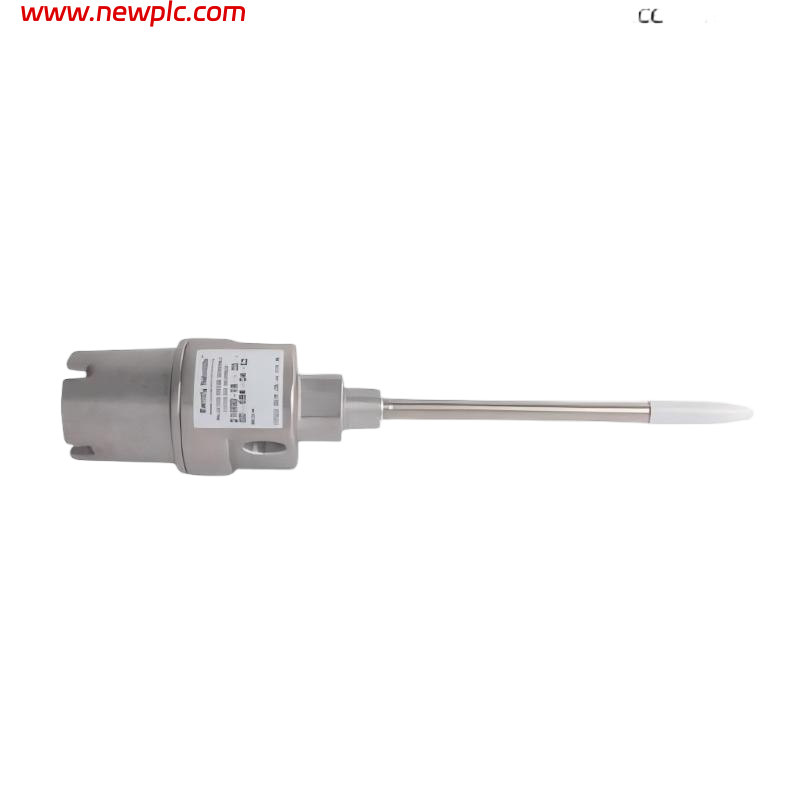

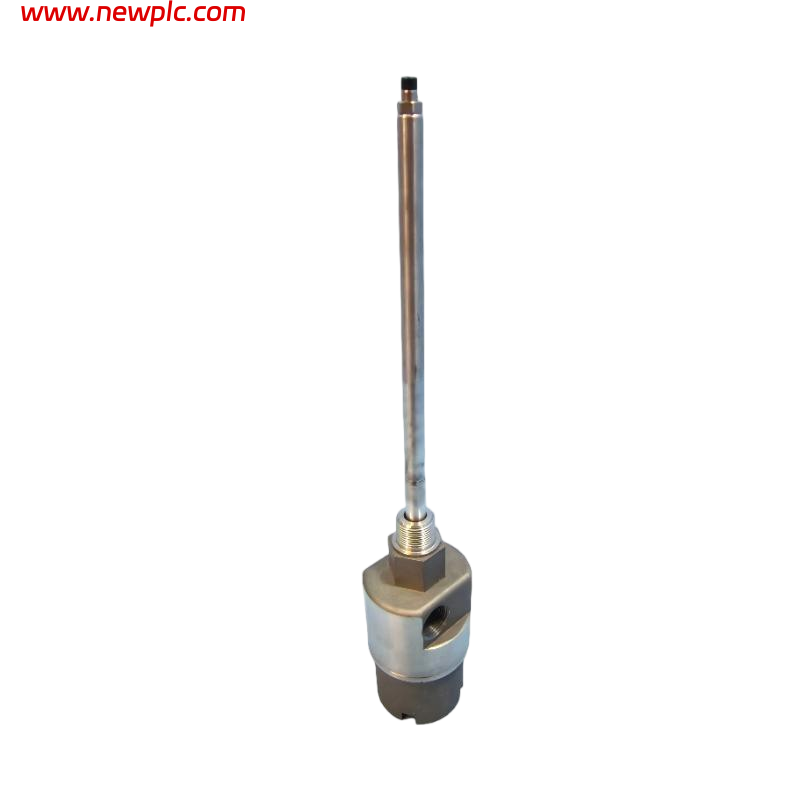

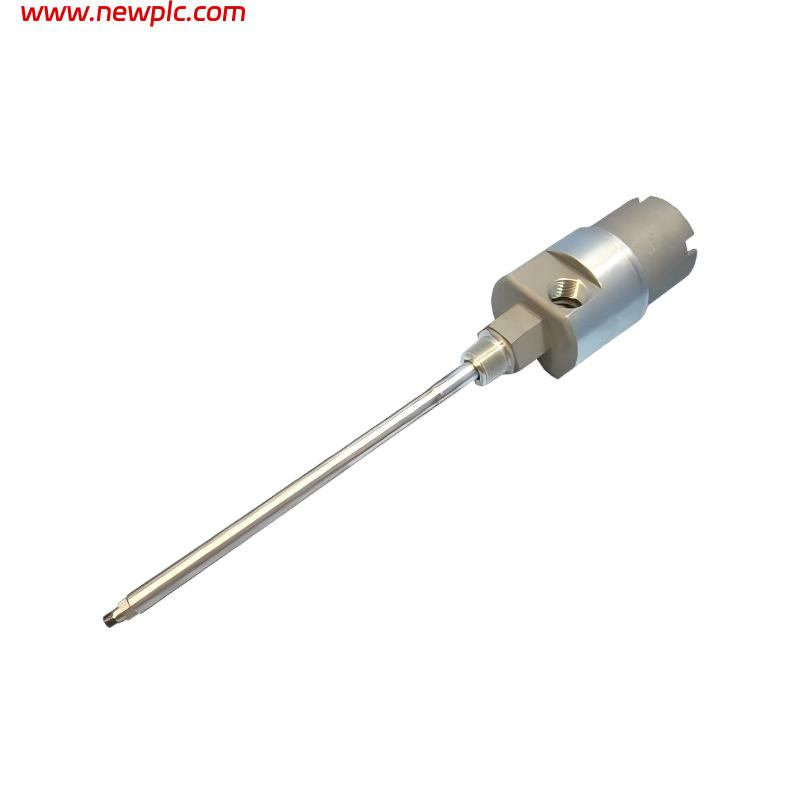

| Product Type | Proximity Probe Housing Assembly |
| Compatible Probe | 3300 XL 8 mm proximity transducer |
| Probe Cable Length | 1.0 m (39 in) |
| Standoff Adapter | None (‑00) |
| Probe Penetration | 11.0 in (279 mm) |
| Fittings Option | One 3/4‑14 NPT plug, one 3/4‑14 to 1/2‑14 NPT reducer, one cable seal grip set |
| Mounting Thread | 3/4‑14 NPT |
| Housing Body Material | 303 stainless steel |
| Sleeve Material | 304 stainless steel |
| Operating Temperature Range | –40 °C to +120 °C (typical industrial range) |
| Environmental Protection | Rugged industrial housing for vibration environment |
| Dimensions – Probe Visible Length | ~279 mm (11.0 in) (penetration) |
| Dimensions – Maximum Assembly Length | ~741 mm (29.2 in) total (housing + sleeve) |
| Cable Length | 1.0 m |
| Weight | ~1.8 kg (4.1 lb) without additional fittings |
| Shipping Weight | ~4 kg |
| Compliance | Designed to meet industrial condition monitoring and vibration measurement requirements |
FAQ
FAQ
Q1: What is the purpose of this housing assembly?
A1: It provides a rugged, threaded housing for a 3300 XL proximity probe, enabling precise non‑contact measurement of shaft vibration/displacement in rotating machinery.
Q2: What probe is this housing compatible with?
A2: It is designed for use with 3300 XL 8 mm proximity transducers.
Q3: How long is the probe cable?
A3: The assembly includes a 1.0 m (39 in) integral cable.
Q4: What is the penetration depth of the probe in this model?
A4: This model provides an 11.0 inch (279 mm) penetration sleeve for deep installation.
Q5: What materials are used for the housing and sleeve?
A5: The body is made of 303 stainless steel and the probe sleeve of 304 stainless steel for industrial durability.
Q6: What fittings are included?
A6: It includes a 3/4‑14 NPT plug, a 3/4‑14 to 1/2‑14 NPT reducer, and a cable seal grip set for various cable diameters.
Q7: What are the approximate overall dimensions?
A7: The visible probe penetration is ~279 mm (11 in) and the total assembly length is about 741 mm (29.2 in).
Q8: What environments can this housing withstand?
A8: It is suitable for industrial vibration and condition monitoring applications, with typical operating temperatures from –40 °C to +120 °C and a rugged stainless steel construction.
