Technical Specifications
| Parameter | Specification |
|---|---|

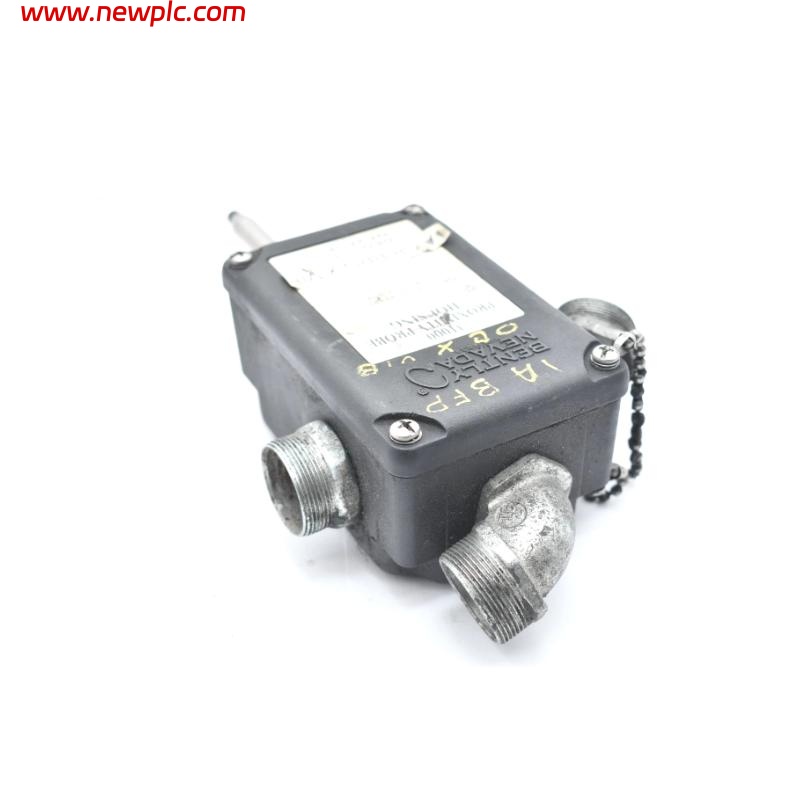

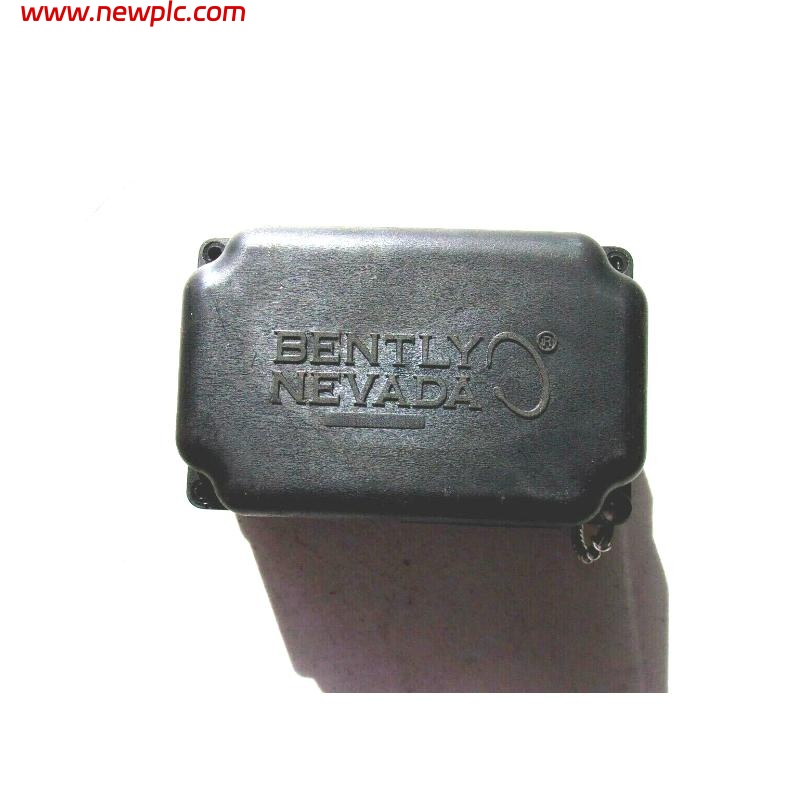

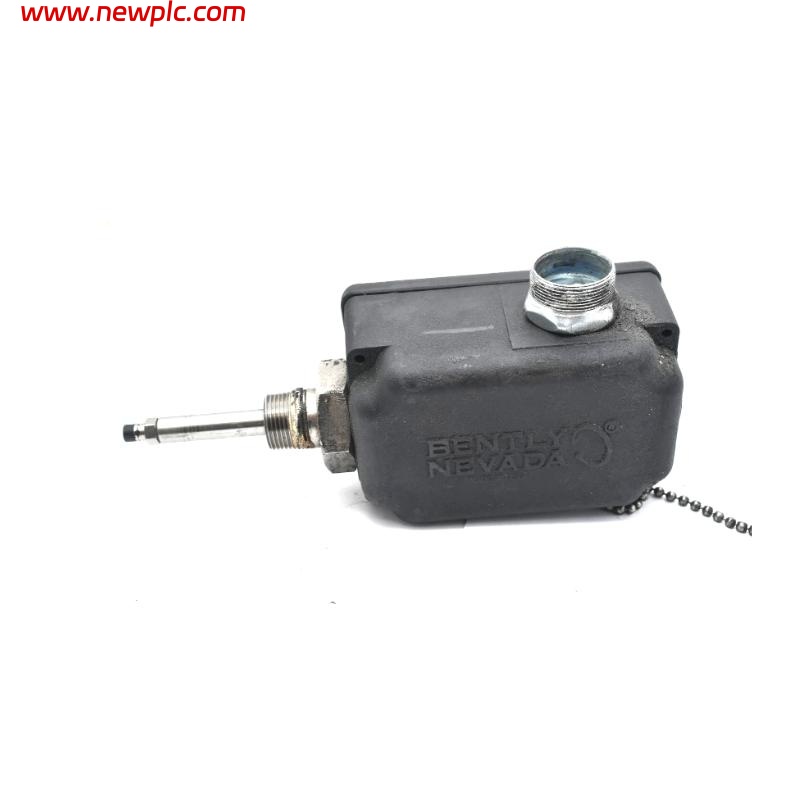

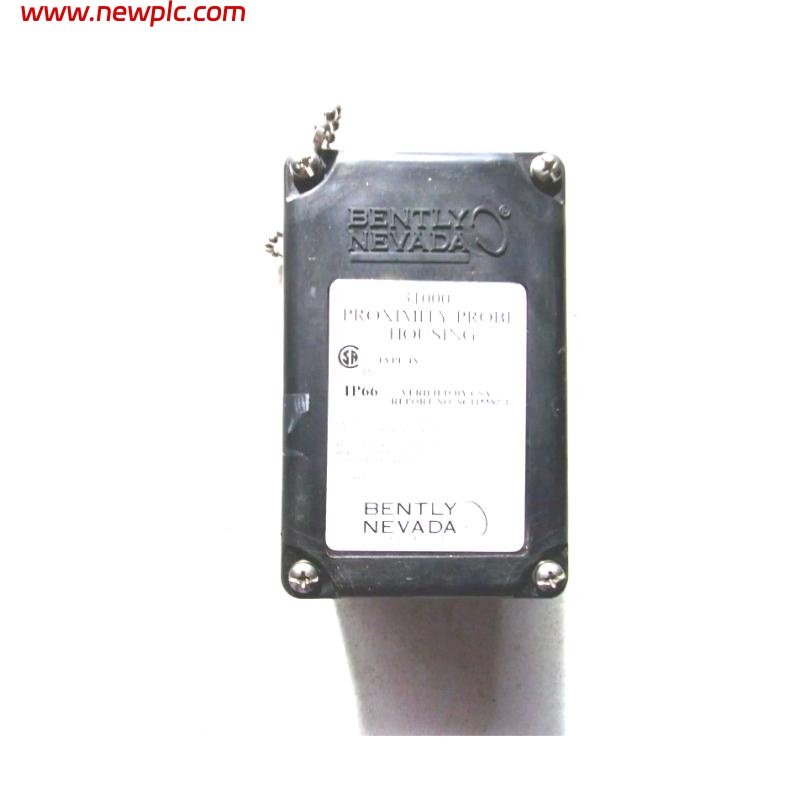

| Product Model | Bently Nevada 31000-16-10-00-050-03-02 Proximity Probe Housing |
| Compatible Probes | 3300 XL 8 mm Probe |
| Probe Cable Length | 1.0 meter |
| Weight | 1.2 kg (2.6 lb) |
| Operating Temperature (Probe) | -51°C to +177°C |
| Storage Temperature (Probe) | -51°C to +177°C |
| Enclosure Rating | NEMA 4X, IP66 |
| Housing Material | Glass-reinforced PPS with conductive fibers |
| Outer Sleeve Material | AISI 303 Stainless Steel |
| Sleeve Retaining Chain Material | AISI 304 Stainless Steel |
| O-Ring Material | Neoprene |
| Recommended Torque (Retaining Nut) | 29.4 N·m (260 in·lb) |
| Housing Impact Strength | 4 Joules @ -39°C and 115°C (BASEEFA Certified), 7 Joules @ room temp (CSA) |
| Max Probe Sleeve Length (1.0 m probe) | 826 mm (32.5 in) |
| Min Probe Sleeve Length | 89 mm (3.5 in) |
| Pressure Resistance | Hose-directed water sealing (not pressure rated) |
| Application Compliance | API 670 Standard |
| Mounting Thread | 3/4-14 NPT (Option 02) |
FAQ
FAQ
Q1: What is the material of the Bently Nevada 31000 housing?
A1: The housing is made of glass-reinforced polyphenylene sulfide (PPS) thermoplastic with conductive fibers, and the sleeve is made of AISI 304 stainless steel.
Q2: Is the 31000 housing explosion-proof?
A2: No, it is not explosion-proof. For explosion-proof applications, use CA21000 or CA24701 housings.
Q3: What is the operating temperature range of the probe used in the 31000 housing?
A3: The 3300 XL 8 mm probe supports an operating and storage temperature of -51°C to +177°C.
Q4: How is the housing sealed against environmental exposure?
A4: The housing meets NEMA 4X and IP66 standards for sealing against hose-directed water and dust ingress.
Q5: Can the probe be replaced without disassembling the machine?
A5: Yes, the housing design allows for external access to the probe and extension cable for replacement and gap adjustment.
Q6: What is the recommended torque for securing the retaining nut?
A6: The retaining nut should be tightened to 29.4 N·m (260 in·lb).
Q7: Is this housing compliant with industry standards?
A7: Yes, it complies with the American Petroleum Institute’s API 670 standard for proximity probe housings.
Q8: What is the impact resistance rating of the housing?
A8: The housing is certified to withstand 4 Joules of impact at extreme temperatures and 7 Joules at ambient room temperature.
