Technical Specifications
| Item | Specification |
|---|---|
| Model | 330101-00-12-50-01-05 |

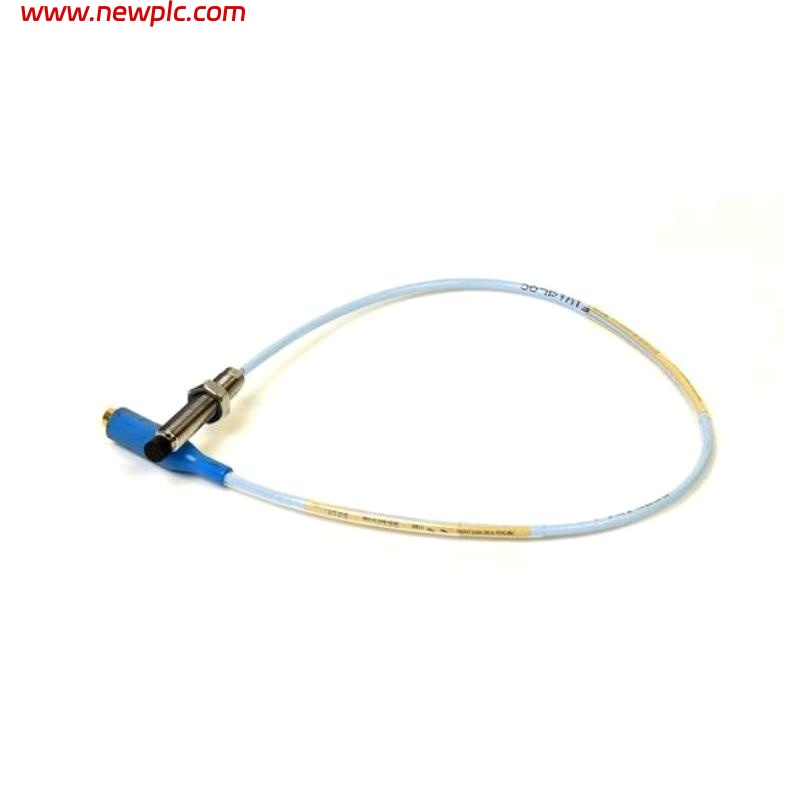

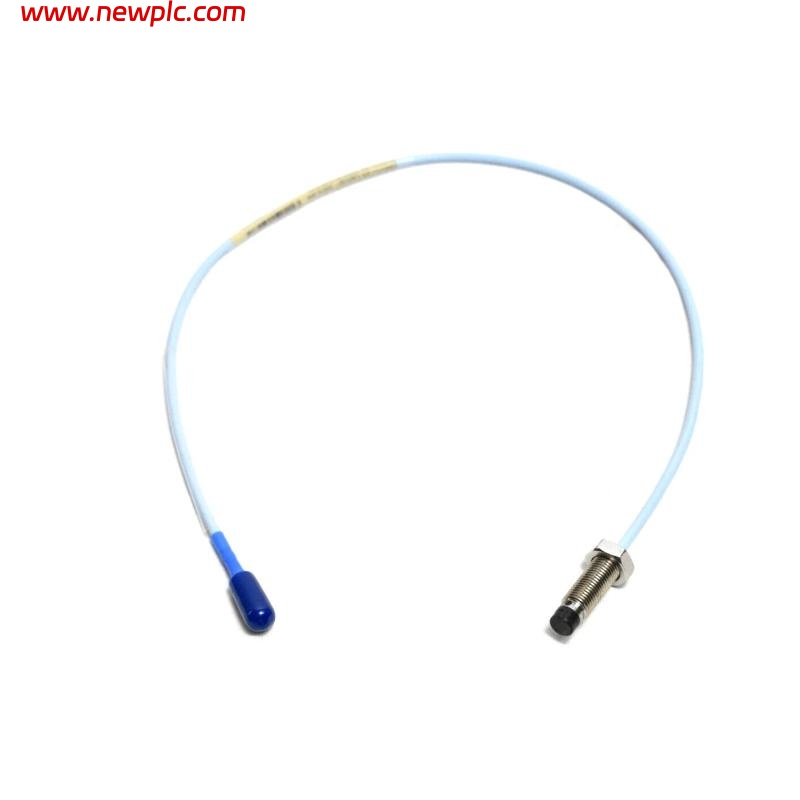

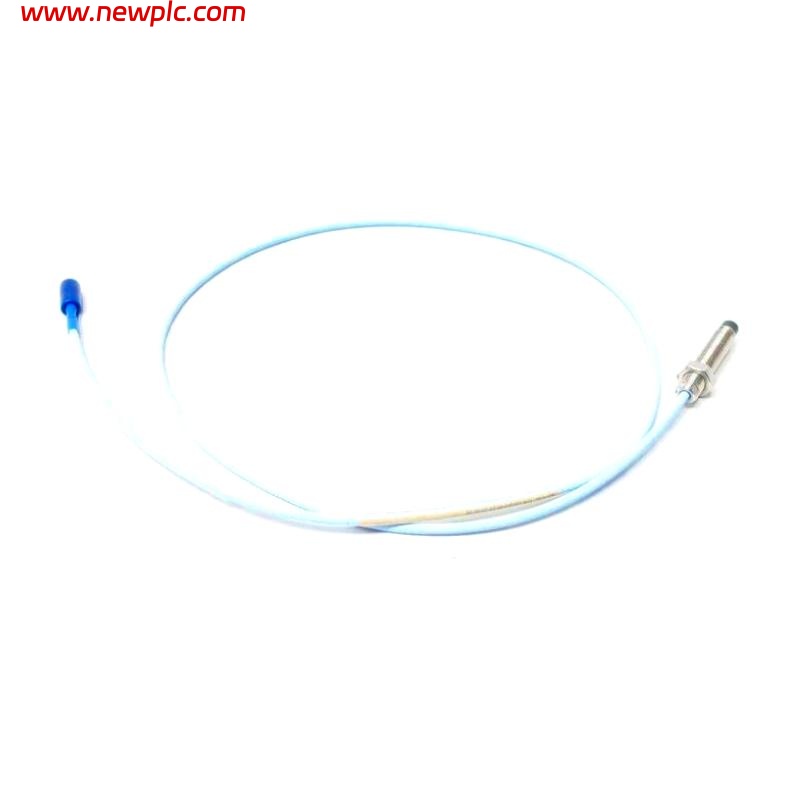

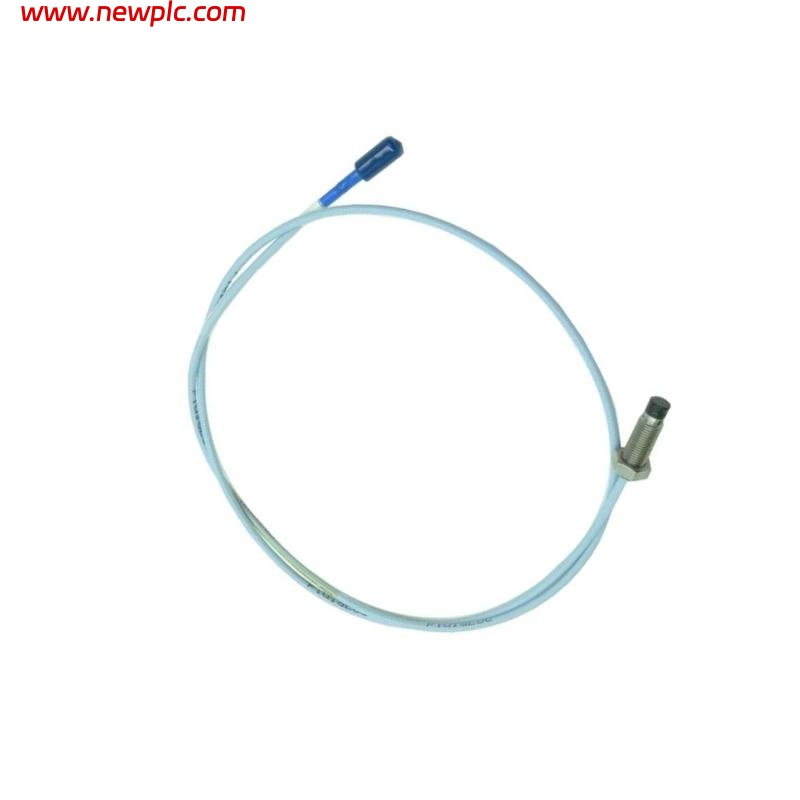

| Type | Bently Nevada 3300 XL Proximity Probe |
| Measurement Principle | Eddy current technology |
| Probe Tip Diameter | 8 mm |
| System Length | 12 meters (probe, extension cable, and proximitor combined) |
| Calibration Target Material | AISI 4140 steel (typical) |
| Sensitivity | 7.87 mV/µm (±5%) |
| Linear Range | 2.0 mm (80 mils) |
| Frequency Response | DC to 10 kHz |
| Power Supply (via Proximitor) | -24 VDC nominal |
| Output Signal | -200 mV to -20 V (proportional to gap distance) |
| Housing Material | Stainless steel |
| Cable Type | Coaxial, low-noise, factory matched |
| Connector Type | Miniature coaxial connector |
| Protection Rating | IP67 (fully sealed) |
| Operating Temperature | -35°C to +177°C |
| Storage Temperature | -40°C to +200°C |
| Dimensions | Probe tip diameter 8 mm, overall assembly length 12 m |
| Weight | 0.22 kg (approx.) |
| Regional Code | 05 – Indicates a regional calibration or compliance configuration |
| Applications | Shaft vibration, axial position, and speed monitoring in turbines, compressors, and other rotating machinery |
FAQ
FAQ
Q1: What is the purpose of the 330101-00-12-50-01-05 probe?
It is used for precise measurement of shaft vibration, displacement, and position in rotating equipment such as turbines and compressors.
Q2: What does the “12-50” in the model number signify?
“12” refers to the total system length (12 meters), and “50” indicates the probe type and configuration within the 3300 XL family.
Q3: What kind of sensing technology does it use?
It operates using eddy current sensing, providing non-contact measurement of conductive targets.
Q4: Which proximitor does this probe work with?
It is typically paired with a matching Bently Nevada 3300 XL Proximitor sensor (e.g., 3300 XL 3300/05 series).
Q5: What is the linear measurement range of the probe?
The probe has a linear measurement range of approximately 2 mm (80 mils).
Q6: What materials can it measure against?
It is factory calibrated for AISI 4140 steel and compatible with other conductive materials with minor recalibration.
Q7: What are its environmental ratings?
It has an IP67 protection rating and can operate in harsh industrial environments from -35°C to +177°C.
Q8: What applications is the 330101-00-12-50-01-05 best suited for?
It is ideal for vibration and displacement monitoring in critical rotating machinery such as gas turbines, compressors, and high-speed motors.
