Technical Specifications
| Item | Specification |
|---|---|
| Model | 330101-00-17-10-02-CN |

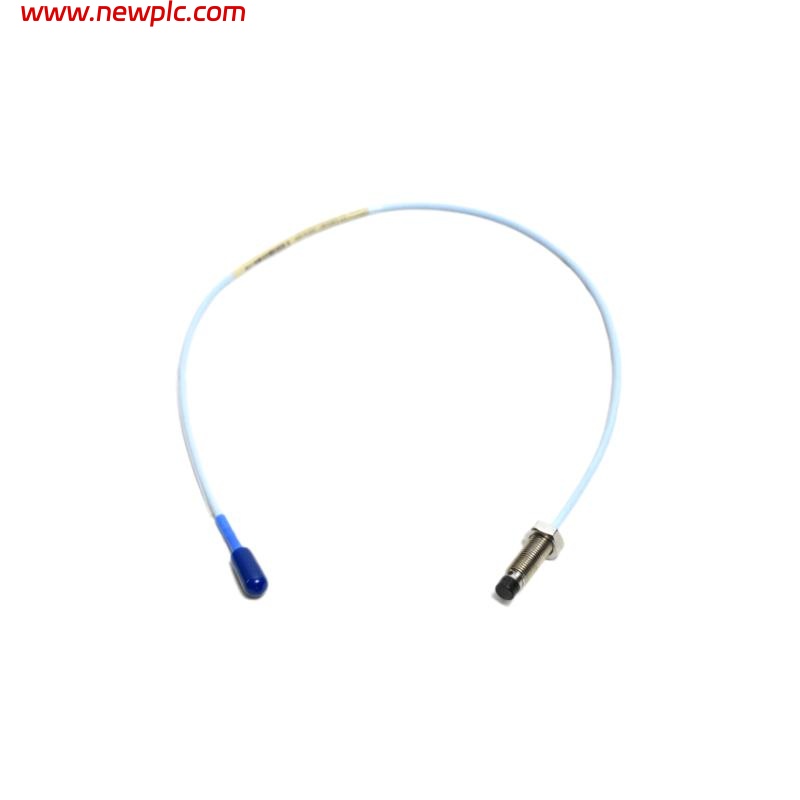

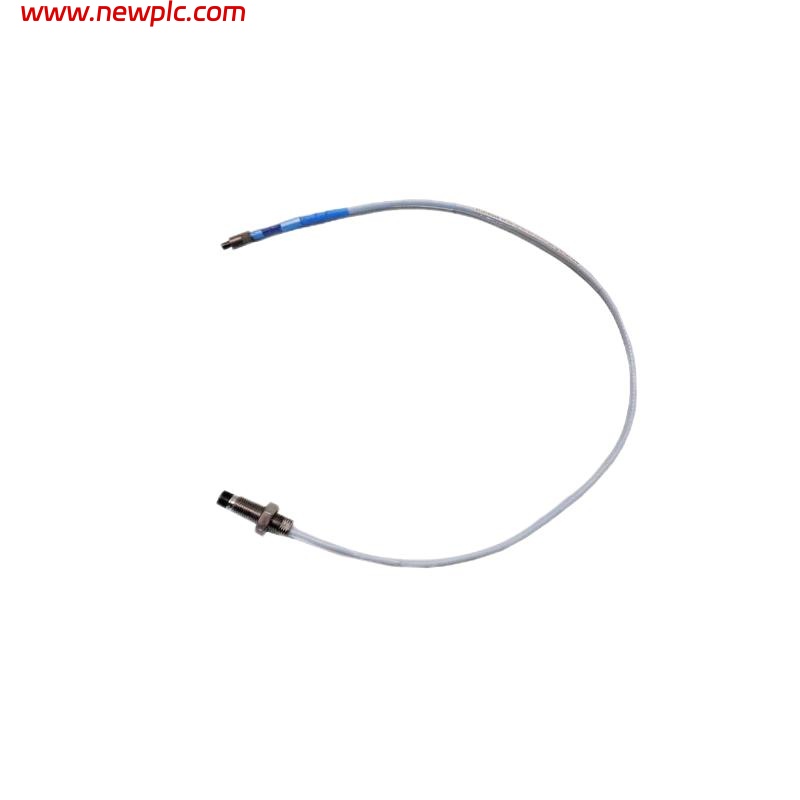

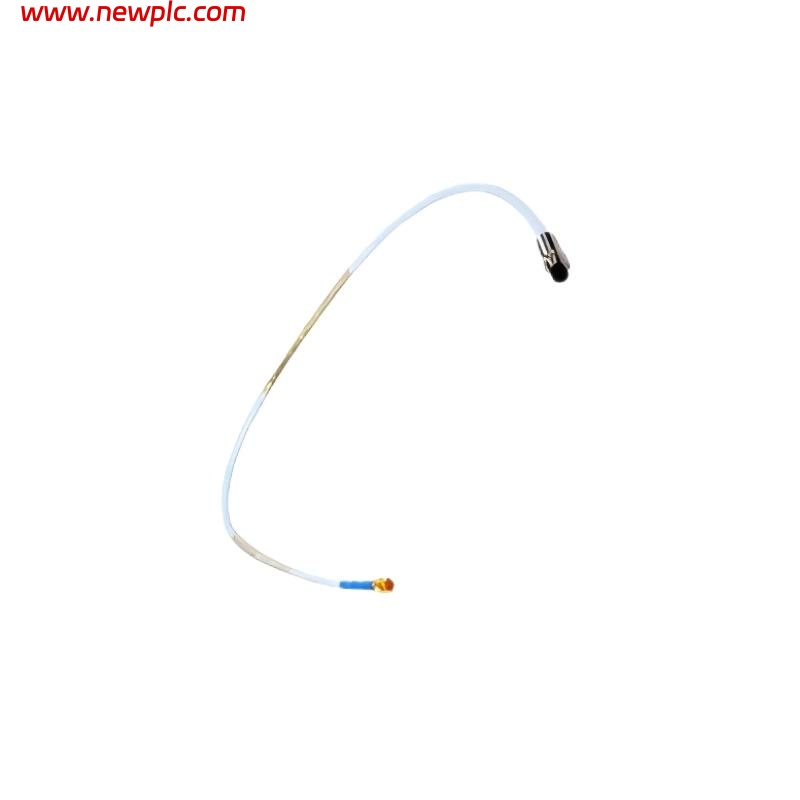

| Type | Bently Nevada 3300 XL 8 mm Proximity Probe |
| Measurement Principle | Eddy current technology |
| Probe Tip Diameter | 8 mm |
| System Length | 17 meters (probe + extension cable + proximitor) |
| Calibration Target Material | AISI 4140 steel (standard) |
| Sensitivity | 7.87 mV/µm (±5%) |
| Linear Range | 2.0 mm (80 mils) |
| Frequency Response | DC to 10 kHz |
| Power Supply (via Proximitor) | -24 VDC nominal |
| Output Signal | -200 mV to -20 V (proportional to gap) |
| Housing Material | Stainless steel |
| Cable Type | Low-noise coaxial cable |
| Connector Type | Miniature coaxial connector |
| Protection Rating | IP67 (fully sealed for industrial use) |
| Operating Temperature | -35°C to +177°C |
| Storage Temperature | -40°C to +200°C |
| Dimensions | Probe tip diameter 8 mm, total system length 17 m |
| Weight | 0.22 kg (approx.) |
| Regional Code | CN – China regional configuration meeting GB/T standards |
| Applications | Shaft vibration, axial position, and speed measurement in turbines, compressors, pumps, and other rotating machinery |
FAQ
FAQ
Q1: What is the function of the 330101-00-17-10-02-CN probe?
It measures shaft vibration and displacement in rotating machinery using non-contact eddy current technology.
Q2: What does the “17-10” represent in the model number?
“17” refers to the total system length (17 meters), and “10” designates the probe type and calibration configuration.
Q3: What does the “CN” suffix indicate?
The “CN” code signifies that the probe is manufactured and configured for the Chinese market, with compliance to local industrial standards.
Q4: What proximity drivers are compatible with this probe?
It is designed for use with Bently Nevada 3300 XL Proximitor sensors, such as models 3300/05 and 3300/15.
Q5: What is the probe’s sensitivity and measurement range?
The sensitivity is 7.87 mV/µm, with a linear measurement range of 2.0 mm.
Q6: Can this probe be used in high-temperature environments?
Yes, it operates reliably between -35°C and +177°C and can be stored up to +200°C.
Q7: What is the environmental protection rating?
It is rated IP67, ensuring full protection against dust and temporary water immersion.
Q8: What applications is this probe best suited for?
It is used for continuous monitoring of shaft vibration, position, and speed in turbines, compressors, generators, and other critical rotating equipment.
