Technical Specifications
| Item | Specification |
|---|---|
| Model | 330101-00-16-50-02-05 |

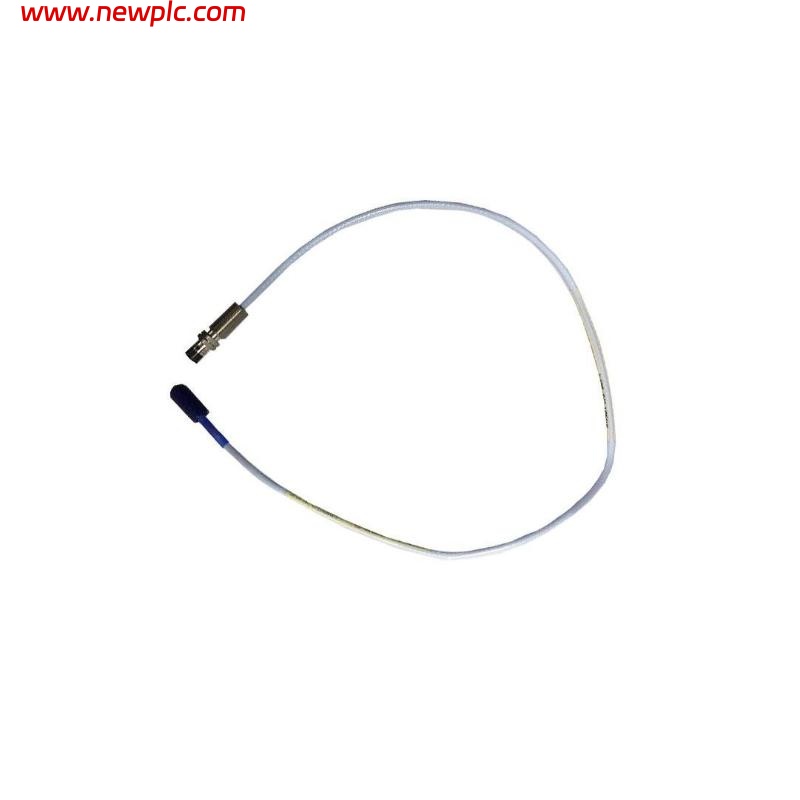

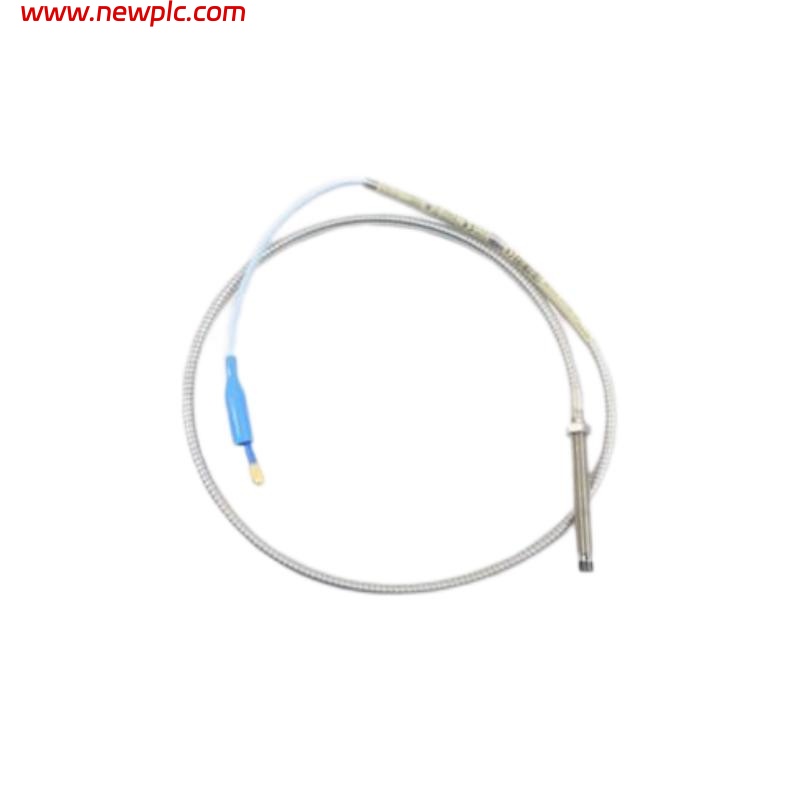

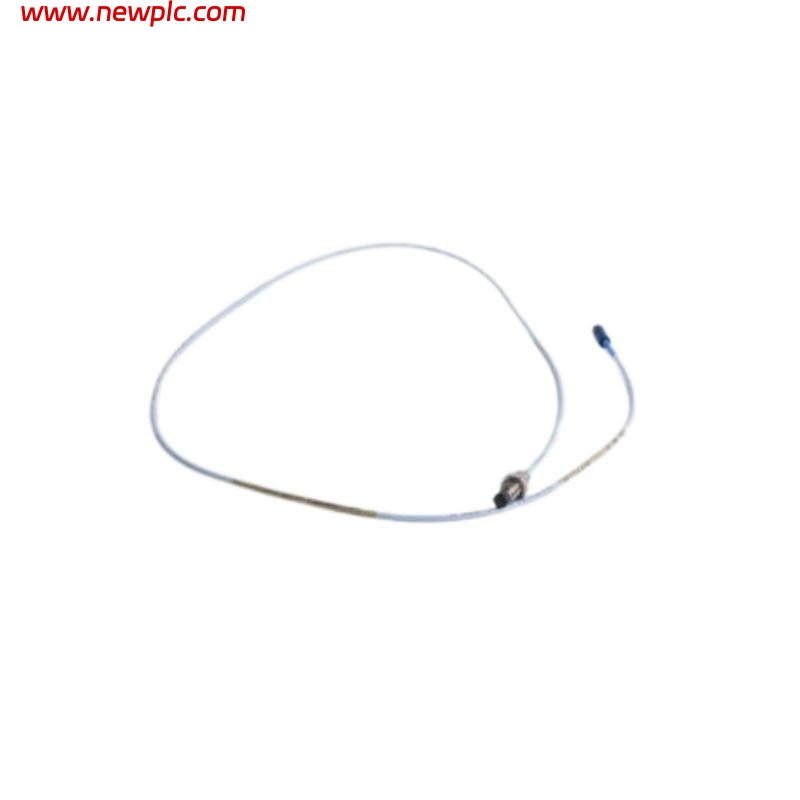

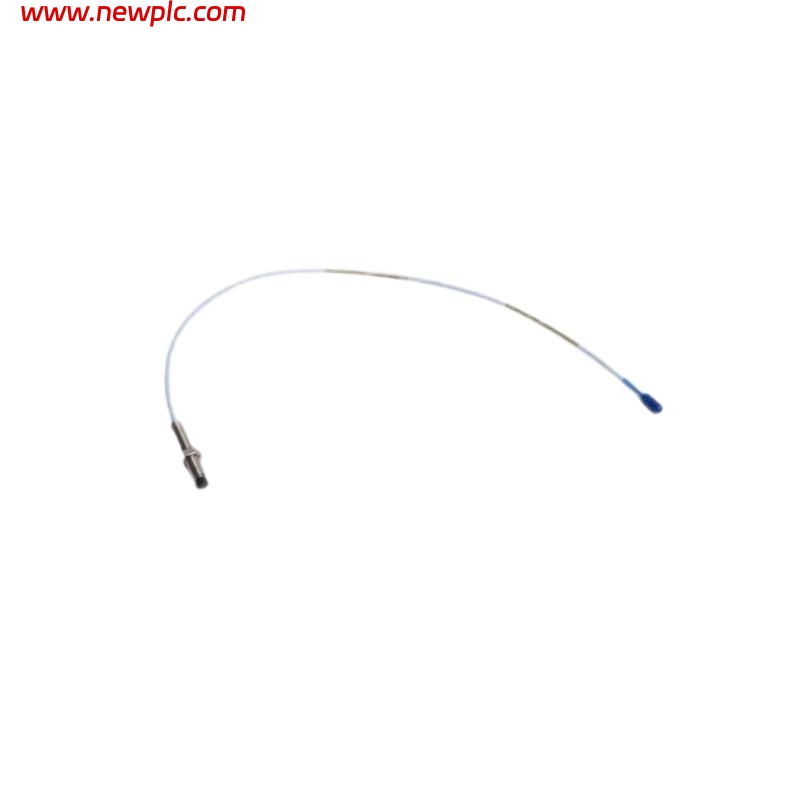

| Type | Bently Nevada 3300 XL 8 mm Proximity Probe |
| Measurement Principle | Eddy-current non-contact displacement measurement |
| Probe Tip Diameter | 8 mm (0.31 in) |
| Thread Size | M10 × 1 |
| Probe Length | 80 mm (nominal) |
| Cable Length | 50.0 m integral cable |
| Sensitivity | 7.87 mV/µm (200 mV/mil) |
| Measurement Range | 2.0 mm (80 mils) |
| Frequency Response | DC to 10 kHz |
| Linearity | ±1% of full scale |
| Housing Material | Stainless steel |
| Tip Material | PEEK (polyether ether ketone) |
| Mounting Method | Threaded installation |
| Operating Temperature | -35°C to +177°C |
| Protection Rating | IP67 |
| Matching Components | 330130-0X-00 Extension Cable and 3300 XL Proximitor Sensor |
| Applications | Shaft vibration, axial position, and displacement monitoring |
| Dimensions | Probe tip diameter 8 mm, body length 80 mm |
| Weight | Approximately 0.36 kg |
FAQ
FAQ
Q1: What is the main function of the 330101-00-16-50-02-05 probe?
It measures shaft vibration, displacement, and axial position in rotating machinery such as turbines, compressors, and motors.
Q2: What technology does it use for measurement?
This probe operates using eddy-current sensing, providing accurate, non-contact measurement of conductive targets.
Q3: What is the total cable length of this model?
It includes a 50-meter integral cable designed for long-distance installations without additional connectors.
Q4: What is the measurement range of this probe?
It offers a linear range of 2.0 mm (80 mils), suitable for precision monitoring applications.
Q5: Which Proximitor is compatible with this probe?
It is compatible with the Bently Nevada 3300 XL Proximitor Sensor for reliable performance and calibration.
Q6: Can it withstand tough industrial environments?
Yes, the probe’s stainless-steel housing and IP67 protection rating make it resistant to oil, vibration, and moisture.
Q7: What temperature range can this probe operate within?
It can operate reliably between -35°C and +177°C, making it suitable for harsh industrial conditions.
Q8: In which industries is this model typically used?
It is commonly applied in oil and gas, petrochemical, power generation, and heavy industrial machinery monitoring systems.
