Technical Specifications
| Item | Specification |
|---|---|
| Model | 330101-00-16-50-02-CN |

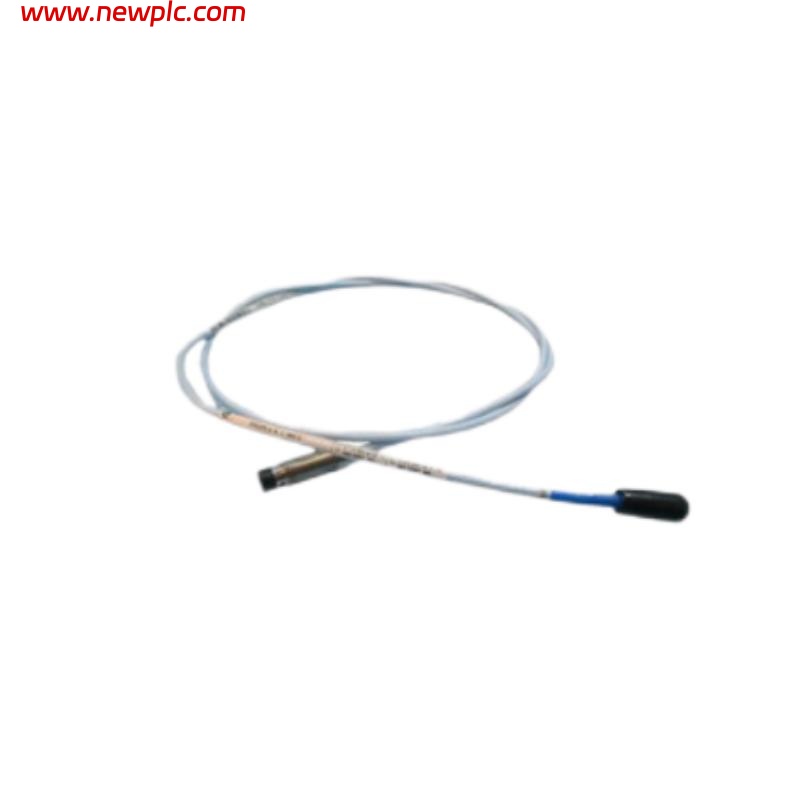

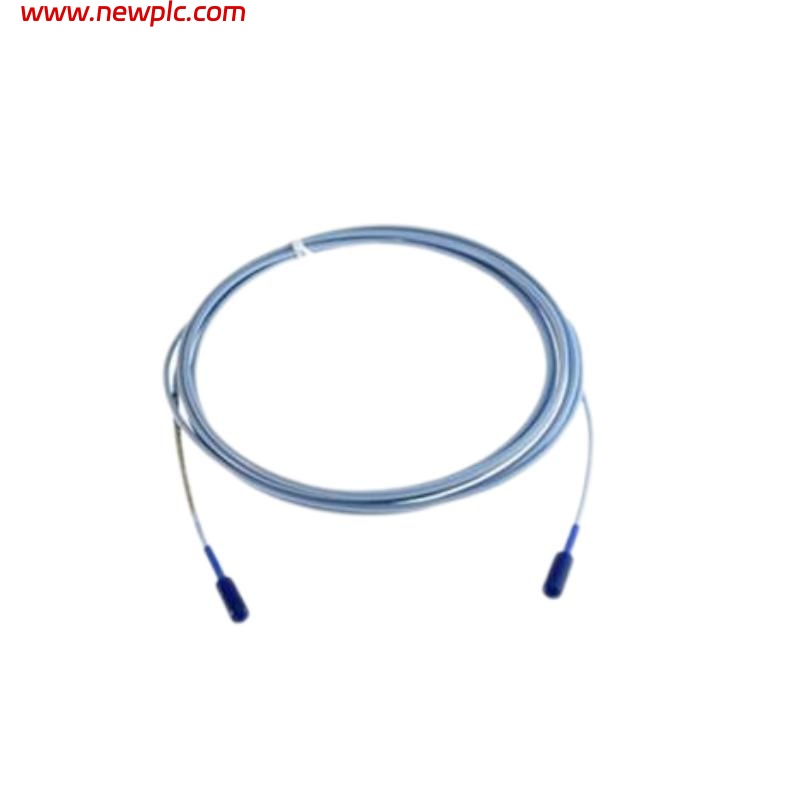

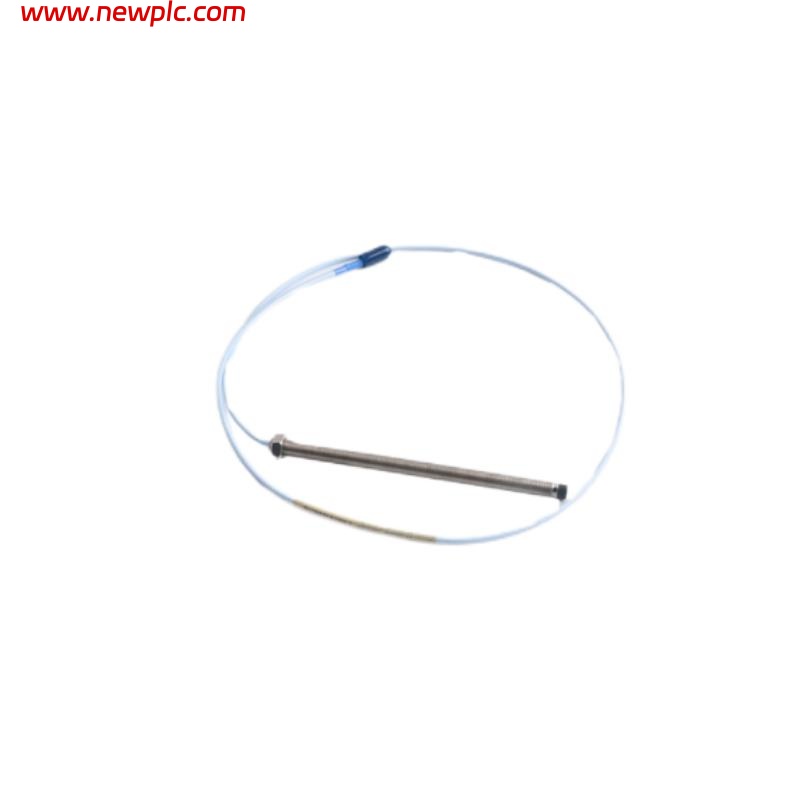

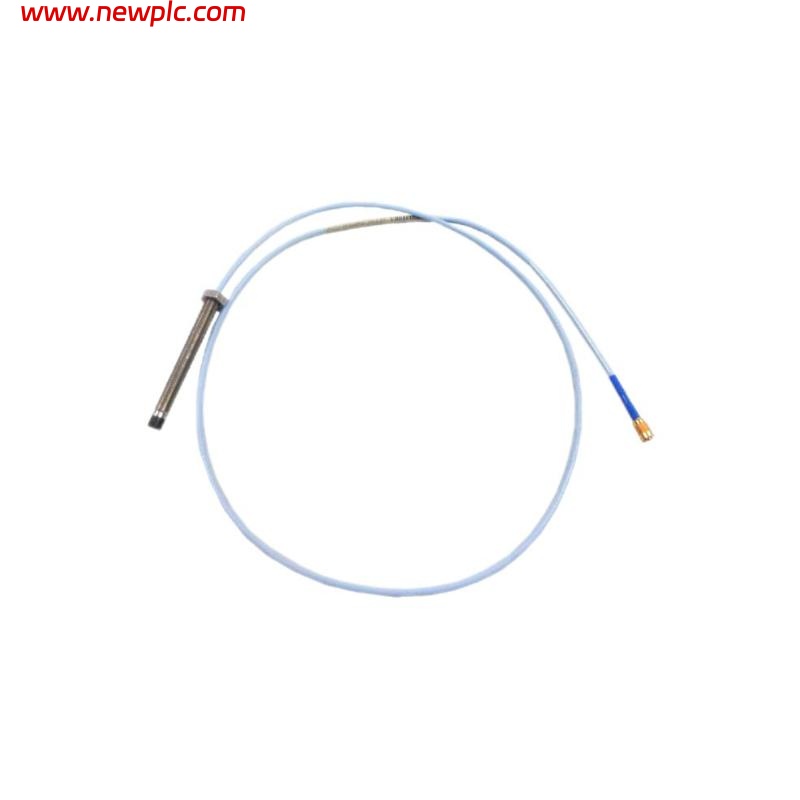

| Type | Bently Nevada 3300 XL 8 mm Proximity Probe |
| Measurement Principle | Eddy-current non-contact displacement measurement |
| Probe Tip Diameter | 8 mm (0.31 in) |
| Thread Size | M10 × 1 |
| Probe Length | 80 mm (nominal) |
| Cable Length | 50.0 m integral cable |
| Sensitivity | 7.87 mV/µm (200 mV/mil) |
| Measurement Range | 2.0 mm (80 mils) |
| Frequency Response | DC to 10 kHz |
| Linearity | ±1% of full scale |
| Housing Material | Stainless steel |
| Tip Material | PEEK (polyether ether ketone) |
| Mounting Method | Threaded installation |
| Operating Temperature | -35°C to +177°C |
| Protection Rating | IP67 |
| Country/Region Code | CN – China Market Certified Version |
| Matching Components | 330130-0X-00 Extension Cable and 3300 XL Proximitor Sensor |
| Applications | Shaft vibration, axial position, and displacement monitoring |
| Dimensions | Probe tip diameter 8 mm, body length 80 mm |
| Weight | Approximately 0.36 kg |
FAQ
FAQ
Q1: What is the main function of the 330101-00-16-50-02-CN probe?
It is designed to measure shaft vibration, displacement, and axial position in rotating machinery such as turbines, compressors, and pumps.
Q2: What does the “CN” suffix indicate?
The “CN” denotes that this model version is certified and configured for the China market, following local compliance standards.
Q3: What is the total cable length for this probe?
This version includes a 50-meter integral cable suitable for long-distance signal transmission without additional connections.
Q4: What measurement principle does it use?
It uses eddy-current sensing technology to provide accurate, non-contact measurement of conductive metal surfaces.
Q5: What is the typical measurement range?
The probe provides a linear range of up to 2.0 mm (80 mils).
Q6: Which Proximitor is compatible with this probe?
It is designed to operate with the 3300 XL Proximitor Sensor for precise system calibration and reliable performance.
Q7: Can it operate in harsh industrial environments?
Yes, with its stainless-steel housing and IP67 protection, it is resistant to oil, vibration, and moisture.
Q8: What are the operating temperature limits?
It performs reliably within a temperature range of -35°C to +177°C, suitable for demanding industrial applications.
