Technical Specifications
| Item | Specification |
|---|---|
| Model | 330101-00-20-20-02-05 |

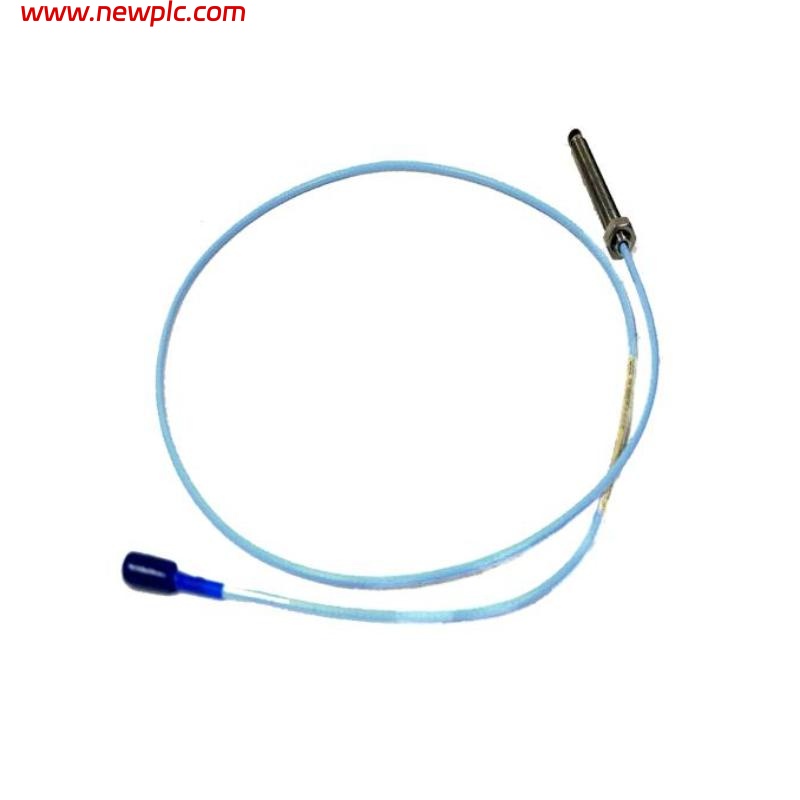

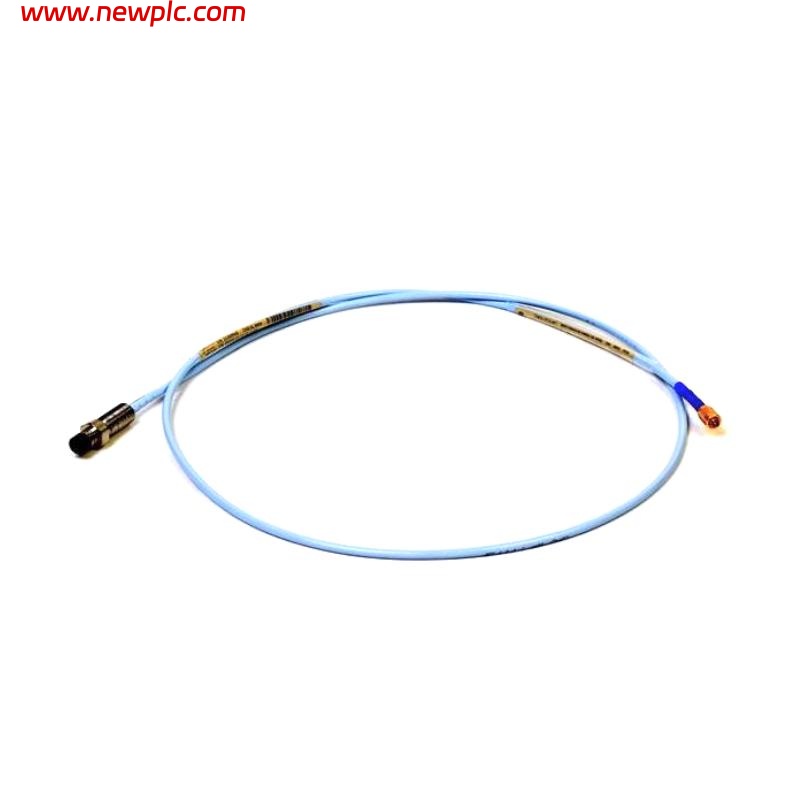

| Type | 8 mm Eddy-Current Proximity Probe |
| Thread Size | 3/8-24 UNF |
| Unthreaded Length | 0 in (00 option) |
| Case (Body) Length | 2.0 in (20 option) |
| Cable Length | 2.0 m (20 option) |
| Connector Type | Miniature coaxial ClickLoc (02 option) |
| Approvals | CSA, ATEX, IECEx (05 option) |
| Measurement Principle | Eddy-current non-contact displacement measurement |
| Linear Measurement Range | Approx. 0.25 mm to 2.3 mm |
| Sensitivity | 7.87 V/mm (≈200 mV/mil) nominal |
| Recommended Gap | –9 Vdc (approx. 1.27 mm) |
| Operating Temperature | –52 °C to +177 °C (standard version) |
| Extended-Temperature Rating | Probe tip up to +218 °C; cable/connector up to +260 °C |
| Housing / Body Material | Stainless steel |
| Tip Material | PPS (polyphenylene sulfide) |
| Wiring Requirements | 3-conductor shielded triad cable, 16–24 AWG |
| Max. Field Wiring Length | Up to 305 m (1,000 ft) between proximitor and monitor |
| Pressure Seal | Viton O-ring |
| Dimensions | Probe tip diameter 8 mm; overall assembly length varies by installation |
| Weight | Approx. 0.32 kg |
FAQ
FAQ
Q1: What is the main function of the 330101-00-20-20-02-05 probe?
A1: It measures shaft vibration, position, and displacement in rotating machinery using non-contact eddy-current technology.
Q2: How should the model code “00-20-20-02-05” be interpreted?
A2: It indicates unthreaded length (00), body length (20), cable length (20), connector style (02), and certification/approval group (05).
Q3: What proximitor driver is this probe compatible with?
A3: It is designed to be used with the 3300 XL Proximitor Sensor for calibrated system performance.
Q4: Can this probe operate in harsh industrial environments?
A4: Yes. Its stainless-steel body, rugged PPS tip, and certified construction make it suitable for oil-rich, high-vibration, and hazardous-area environments.
Q5: What supply voltage does the system require?
A5: The probe operates as part of a system that uses a negative DC supply, typically within –17.5 Vdc to –26 Vdc.
Q6: What is the typical sensitivity of this probe?
A6: The standard incremental scale factor is about 7.87 V/mm (≈200 mV/mil).
Q7: Is it suitable for high-temperature applications?
A7: Yes. The standard probe handles up to +177 °C, and an extended-temperature version supports higher limits at the probe tip and cable.
Q8: What are the physical size and weight of the probe?
A8: The probe features an 8 mm tip diameter, a 2-inch body length, a 2-meter cable, and weighs roughly 0.32 kg.
