Technical Specifications
| Item | Specification |
|---|---|
| Model | 330101-00-20-20-02-CN |

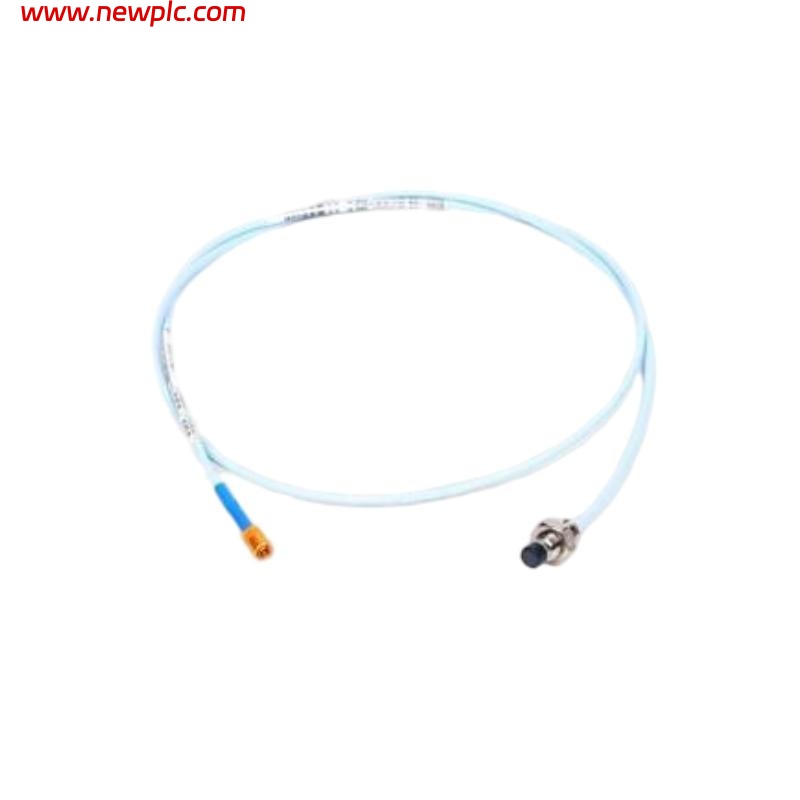

| Type | 8 mm Eddy-Current Proximity Probe |
| Thread Size | 3/8-24 UNF |
| Unthreaded Length | 0 in (00 option) |
| Case (Body) Length | 2.0 in (20 option) |
| Cable Length | 2.0 m (20 option) |
| Connector Type | Miniature coaxial ClickLoc (02 option) |
| Suffix “CN” | China-specific certification and compliant configuration |
| Measurement Principle | Non-contact eddy-current displacement measurement |
| Linear Measurement Range | Approx. 0.25 mm to 2.3 mm |
| Sensitivity | 7.87 V/mm (≈200 mV/mil) nominal |
| Frequency Response | Suitable for high-speed rotating equipment monitoring |
| Operating Temperature | –52 °C to +177 °C (standard) |
| Tip Material | PPS (polyphenylene sulfide) |
| Housing Material | Stainless steel |
| Recommended Gap | –9 Vdc (≈1.27 mm) |
| Wiring Requirements | 3-conductor shielded triad cable, 16–24 AWG |
| Maximum Field Wiring Length | Up to 305 m (1,000 ft) |
| Pressure Seal | Viton O-ring |
| Dimensions | Probe tip diameter 8 mm; body length 2 in; cable length 2 m |
| Weight | Approx. 0.32 kg |
FAQ
FAQ
Q1: What is the primary purpose of the 330101-00-20-20-02-CN probe?
A1: It measures shaft vibration, radial position, and displacement in rotating machinery using non-contact eddy-current sensing.
Q2: What does the “CN” suffix represent?
A2: It denotes a China-specific certified configuration, typically meeting local compliance or delivery requirements.
Q3: Is this model compatible with standard 3300 XL proximitor sensors?
A3: Yes, it is designed to operate as part of the 3300 XL proximity transducer system.
Q4: What environment is this probe suitable for?
A4: It is engineered for demanding industrial environments where oil, vibration, and heat are present.
Q5: What is the linear measurement range of this probe?
A5: The typical usable linear range is approximately 0.25 mm to 2.3 mm.
Q6: Does this probe support high-speed machinery applications?
A6: Yes, its bandwidth and response make it suitable for high-speed rotating equipment.
Q7: What installation wiring is recommended?
A7: A shielded triad cable with 16–24 AWG conductors is recommended for reliable signal integrity.
Q8: What are the physical dimensions and weight of the probe?
A8: It features an 8 mm probe tip, a 2-inch body length, a 2-meter cable, and weighs around 0.32 kg.
