Technical Specifications
| Item | Specification |
|---|---|
| Model | 330101-00-20-50-02-00 |

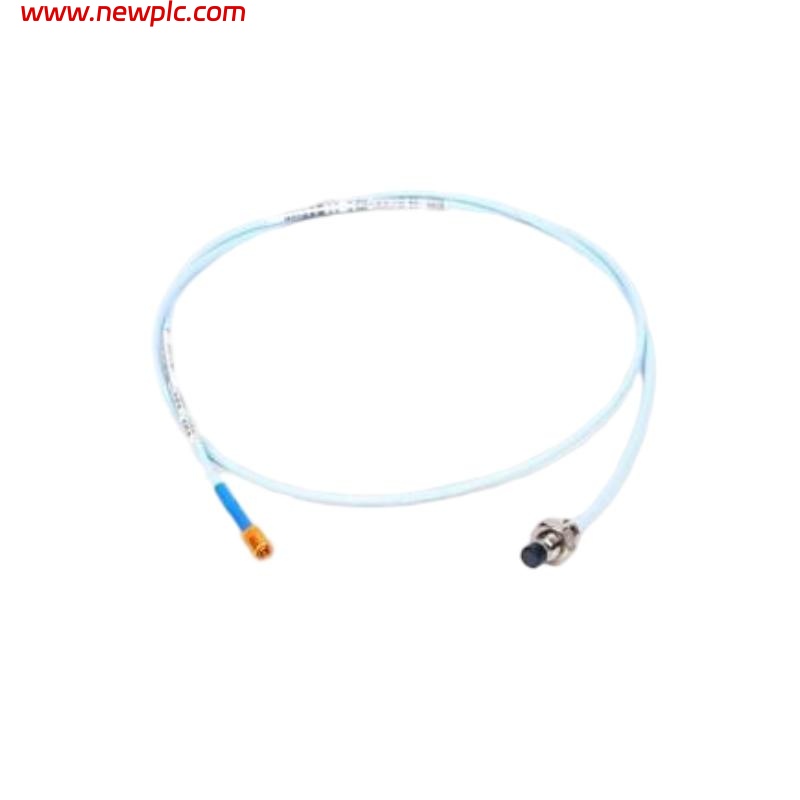

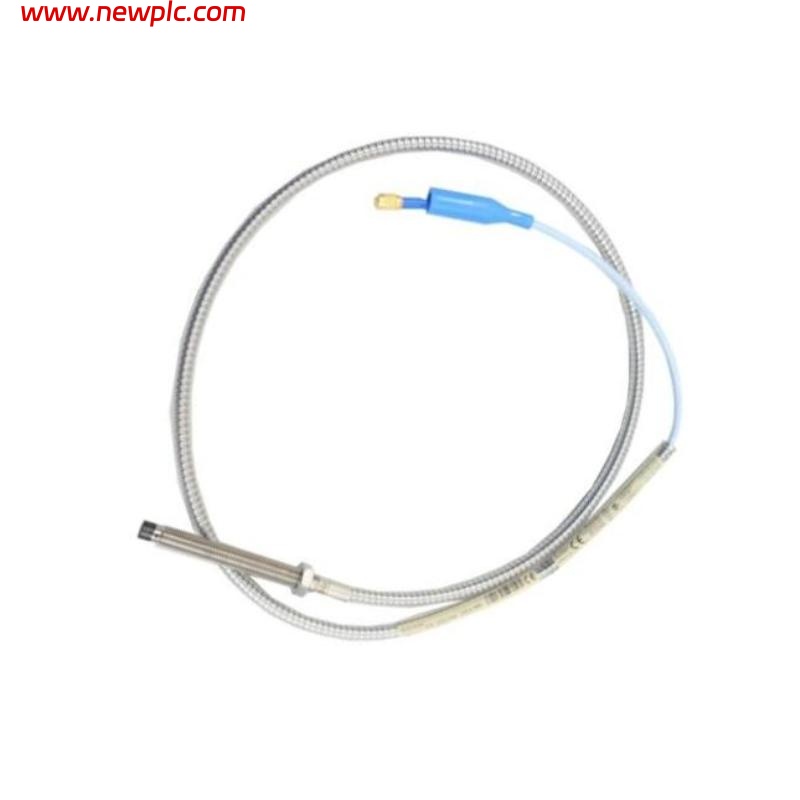

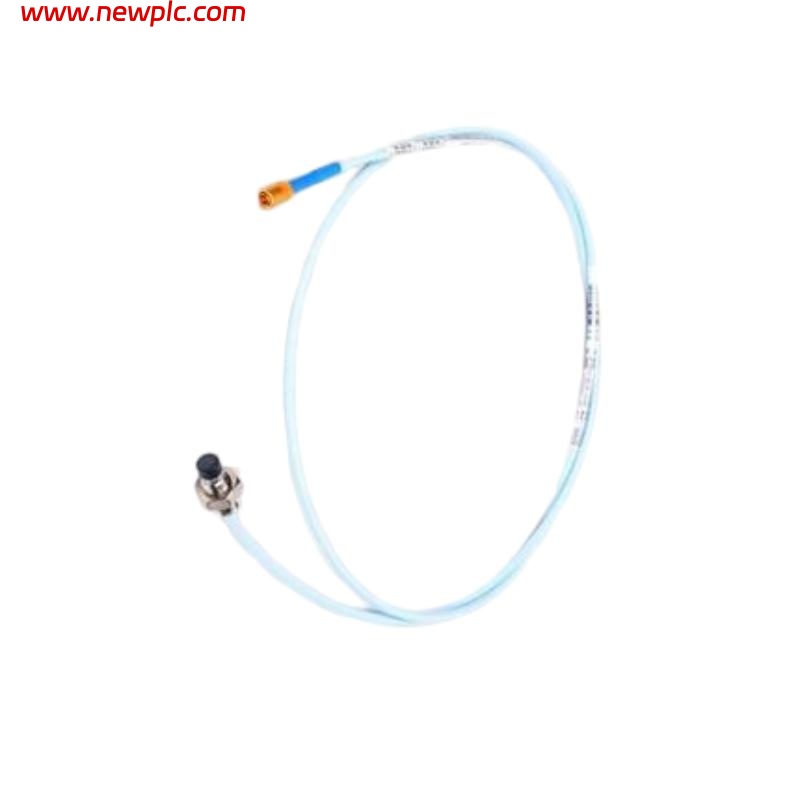

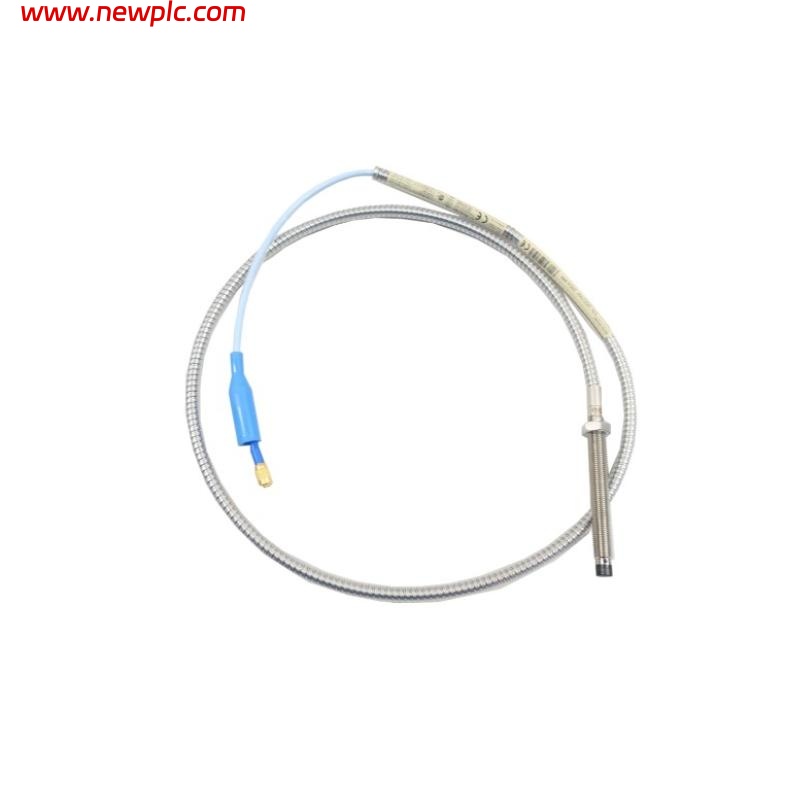

| Type | 8 mm Eddy-Current Proximity Probe |
| Thread Size | 3/8-24 UNF |
| Unthreaded Length | 0 in (00 option) |
| Case (Body) Length | 2.0 in (20 option) |
| Cable Length | 5.0 m (50 option) |
| Connector Type | Miniature coaxial ClickLoc (02 option) |
| Approvals | Standard (00 option – no special certifications) |
| Measurement Principle | Non-contact eddy-current displacement measurement |
| Linear Measurement Range | Approx. 0.25 mm to 2.3 mm |
| Sensitivity | 7.87 V/mm (≈200 mV/mil) nominal |
| Frequency Response | Suitable for high-speed machinery monitoring |
| Operating Temperature | –52 °C to +177 °C (standard) |
| Tip Material | PPS (polyphenylene sulfide) |
| Housing Material | Stainless steel |
| Recommended Gap | –9 Vdc (≈1.27 mm) |
| Wiring Requirements | 3-conductor shielded triad cable, 16–24 AWG |
| Maximum Field Wiring Length | Up to 305 m (1,000 ft) |
| Pressure Seal | Viton O-ring |
| Dimensions | Probe tip diameter 8 mm; body length 2 in; cable length 5 m |
| Weight | Approx. 0.38 kg |
FAQ
FAQ
Q1: What is the primary function of the 330101-00-20-50-02-00 probe?
A1: It is a non-contact eddy-current probe used to measure shaft vibration, radial displacement, and position in rotating machinery.
Q2: What does the “50” in the model number indicate?
A2: The “50” indicates a 5-meter cable length for the probe.
Q3: What connector type does this probe use?
A3: It uses a miniature coaxial ClickLoc connector (02 option).
Q4: Can this probe operate in industrial environments with vibration and oil?
A4: Yes, its stainless-steel housing and PPS tip make it suitable for harsh industrial conditions.
Q5: What is the linear measurement range of this probe?
A5: The typical linear range is approximately 0.25 mm to 2.3 mm.
Q6: What supply voltage is required for proper operation?
A6: The probe operates with a negative DC supply, typically between –17.5 Vdc and –26 Vdc.
Q7: Is this probe suitable for high-speed machinery?
A7: Yes, the frequency response supports monitoring of high-speed rotating equipment.
Q8: What are the physical dimensions and weight of this probe?
A8: The probe has an 8 mm tip diameter, a 2-inch body length, a 5-meter cable, and weighs approximately 0.38 kg.
