Technical Specifications
| Item | Specification |
|---|---|
| Model | 330101-00-20-50-02-CN |

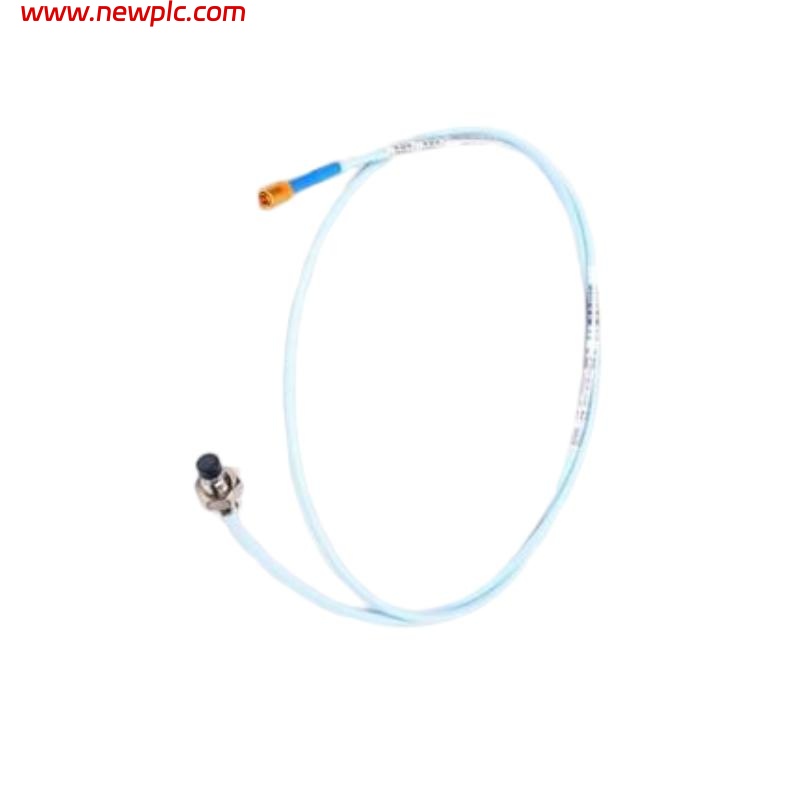

| Type | 8 mm Eddy-Current Proximity Probe |
| Thread Size | 3/8-24 UNF |
| Unthreaded Length | 0 in (00 option) |
| Case (Body) Length | 2.0 in (20 option) |
| Cable Length | 5.0 m (50 option) |
| Connector Type | Miniature coaxial ClickLoc (02 option) |
| Suffix “CN” | China-specific certification and compliance |
| Measurement Principle | Non-contact eddy-current displacement measurement |
| Linear Measurement Range | Approx. 0.25 mm to 2.3 mm |
| Sensitivity | 7.87 V/mm (≈200 mV/mil) nominal |
| Frequency Response | Suitable for high-speed machinery monitoring |
| Operating Temperature | –52 °C to +177 °C (standard) |
| Tip Material | PPS (polyphenylene sulfide) |
| Housing Material | Stainless steel |
| Recommended Gap | –9 Vdc (≈1.27 mm) |
| Wiring Requirements | 3-conductor shielded triad cable, 16–24 AWG |
| Maximum Field Wiring Length | Up to 305 m (1,000 ft) |
| Pressure Seal | Viton O-ring |
| Dimensions | Probe tip diameter 8 mm; body length 2 in; cable length 5 m |
| Weight | Approx. 0.38 kg |
FAQ
FAQ
Q1: What is the main purpose of the 330101-00-20-50-02-CN probe?
A1: It is used to measure shaft vibration, radial position, and displacement in rotating machinery using non-contact eddy-current technology.
Q2: What does the “CN” suffix indicate?
A2: It indicates a China-specific certified configuration, meeting local compliance requirements.
Q3: What does the “50” in the model number signify?
A3: The “50” indicates a 5-meter cable length.
Q4: What connector type does this probe use?
A4: It uses a miniature coaxial ClickLoc connector (02 option).
Q5: Can this probe operate in harsh industrial environments?
A5: Yes, the stainless-steel body, PPS tip, and certified design make it suitable for high-vibration, oil-exposed, and hazardous areas.
Q6: What is the measurement range of this probe?
A6: The linear measurement range is approximately 0.25 mm to 2.3 mm.
Q7: Is it suitable for high-speed machinery?
A7: Yes, the frequency response supports high-speed rotating equipment.
Q8: What are the physical dimensions and weight of the probe?
A8: Probe tip diameter 8 mm, body length 2 inches, cable length 5 m, weight approximately 0.38 kg.
