Technical Specifications
| Parameter | Value |
|---|---|

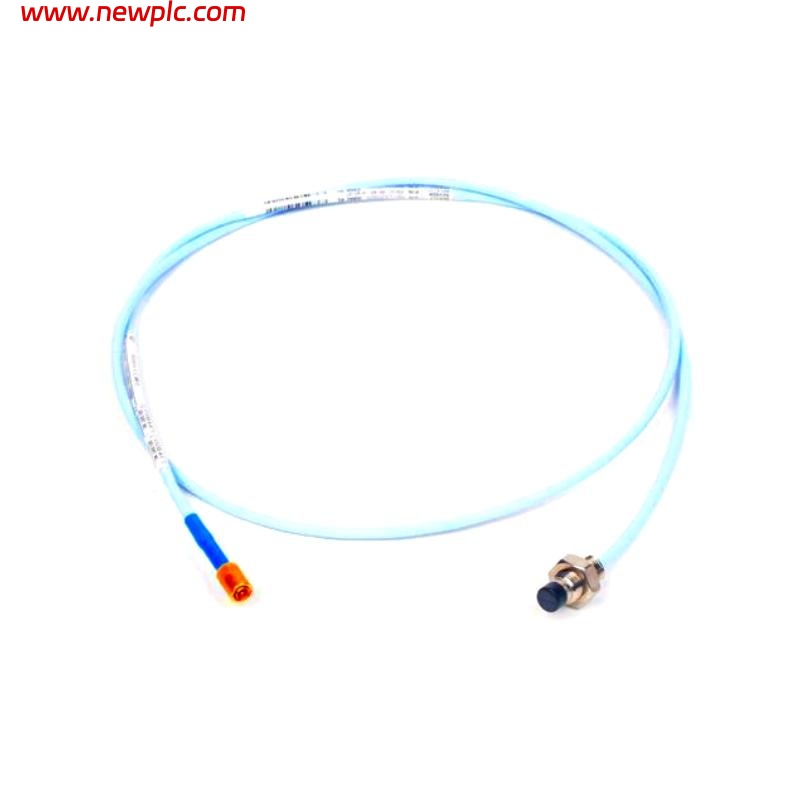

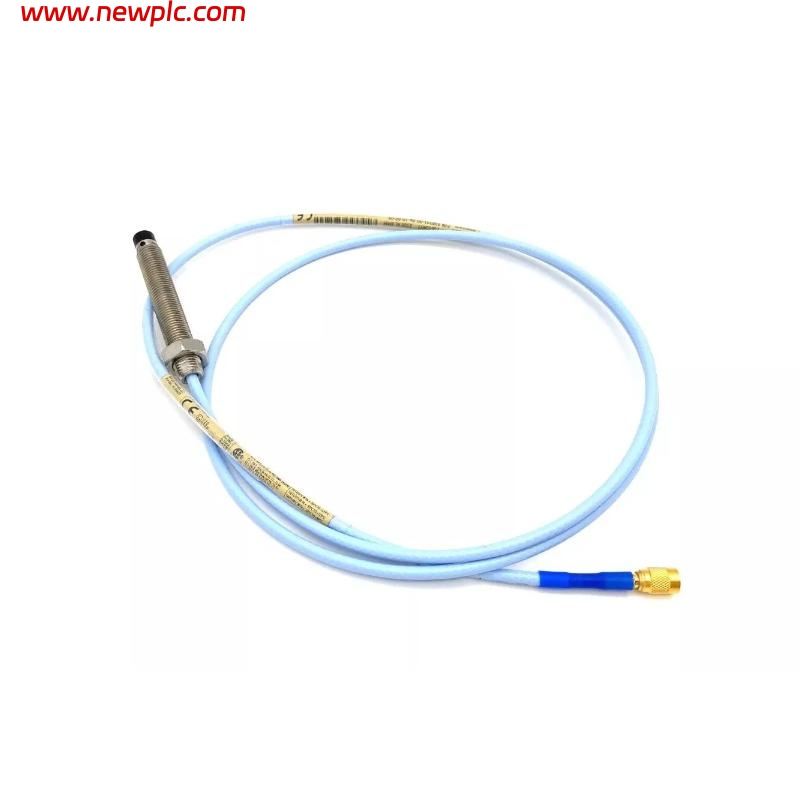

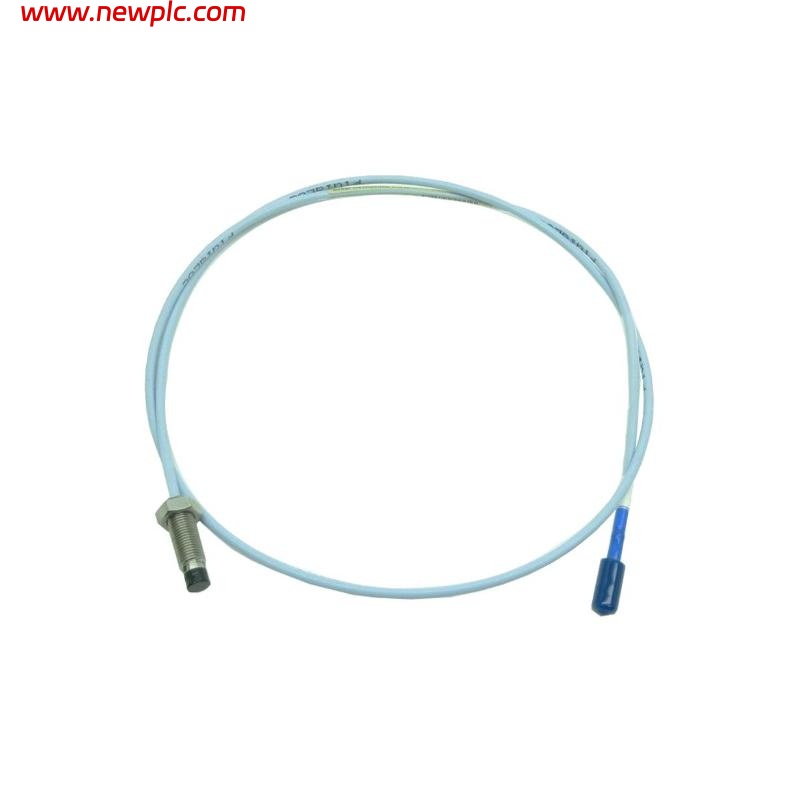

| Model | Bently Nevada 330101-00-24-10-02-00 3300 XL 8 mm Proximity Probe |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | Stainless Steel AISI 303 or 304 |
| Probe Cable | 75Ω triaxial, FEP insulated |
| Cable Connector | Miniature coaxial ClickLoc connector |
| Cable Bend Radius (Min.) | 25.4 mm (1.0 in) |
| Probe Diameter | 8.0 mm |
| Operating Temperature | -52°C to +177°C (Standard) |
| Storage Temperature | -52°C to +177°C |
| Recommended Gap Setting | Approx. 1.27 mm (50 mils) |
| Linear Range | 0.25 mm – 2.3 mm (10–90 mils) |
| Output Scale Factor | 7.87 V/mm ±5% (standard system) |
| Frequency Response | 0 to 10 kHz |
| Shaft Diameter (Recommended) | Minimum 76.2 mm (3 in) |
| Seal Material | Viton® O-ring |
| Tensile Strength | 330 N (75 lbf) probe case to cable; 270 N (60 lbf) cable to connector |
| Connector Torque | 0.565 N·m (5 in·lbf) |
| Humidity Resistance | <3% change in ASF @ 93% RH for 56 days |
| Certifications | FCC Part 15, CE Mark, RoHS, SIL2/3, CSA, ATEX, IECEx, Marine Approvals |
FAQ
FAQ
Q1: What is the total length and weight of the Bently Nevada 330101-00-24-10-02-00 probe?
A1: The total length is 1.0 meter, and the weight is approximately 0.323 kg.
Q2: What is the recommended gap setting for installation?
A2: The recommended gap setting for radial vibration measurement is approximately 1.27 mm (50 mils).
Q3: What is the operating temperature range of the standard probe?
A3: The standard operating temperature range is -52°C to +177°C.
Q4: What type of connector does the probe use?
A4: The probe uses a miniature coaxial ClickLoc connector with a finger-tight click-lock mechanism.
Q5: Does the probe require special tools for installation?
A5: No, the ClickLoc connectors and SpringLoc terminals are designed for tool-free, easy installation.
Q6: What is the linear measurement range of this proximity probe?
A6: The linear measurement range is from approximately 0.25 mm to 2.3 mm (10 to 90 mils).
Q7: What is the minimum recommended shaft diameter for use with this probe?
A7: The recommended minimum shaft diameter is 76.2 mm (3 inches) to minimize cross-talk and maintain accuracy.
Q8: Is the probe compliant with international certifications?
A8: Yes, the probe meets FCC, CE, RoHS, SIL2/3, CSA, ATEX, IECEx, and maritime classification standards.
