Technical Specifications
| Parameter | Value |
|---|---|

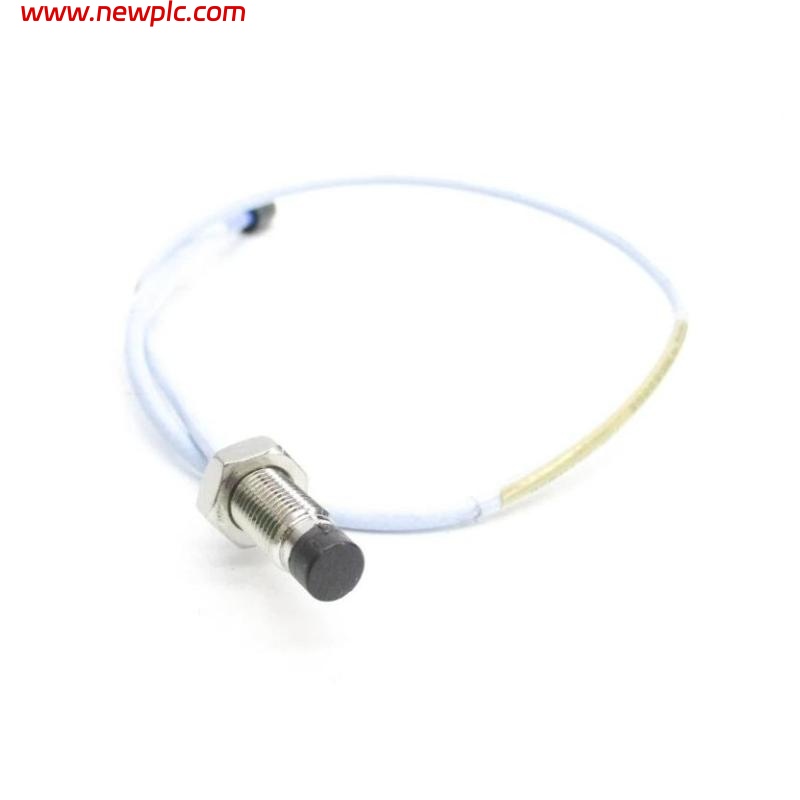

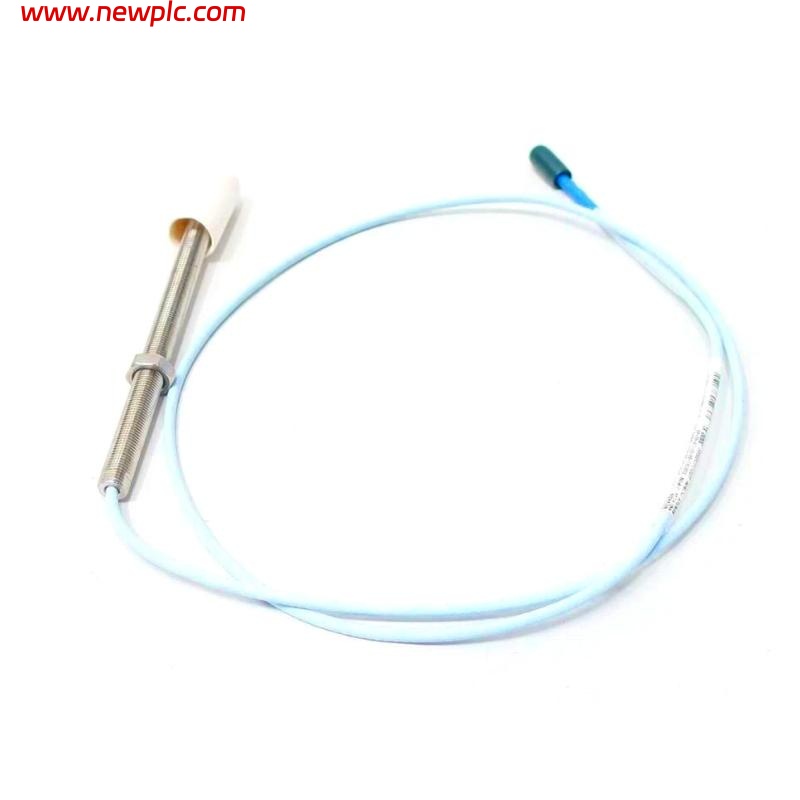

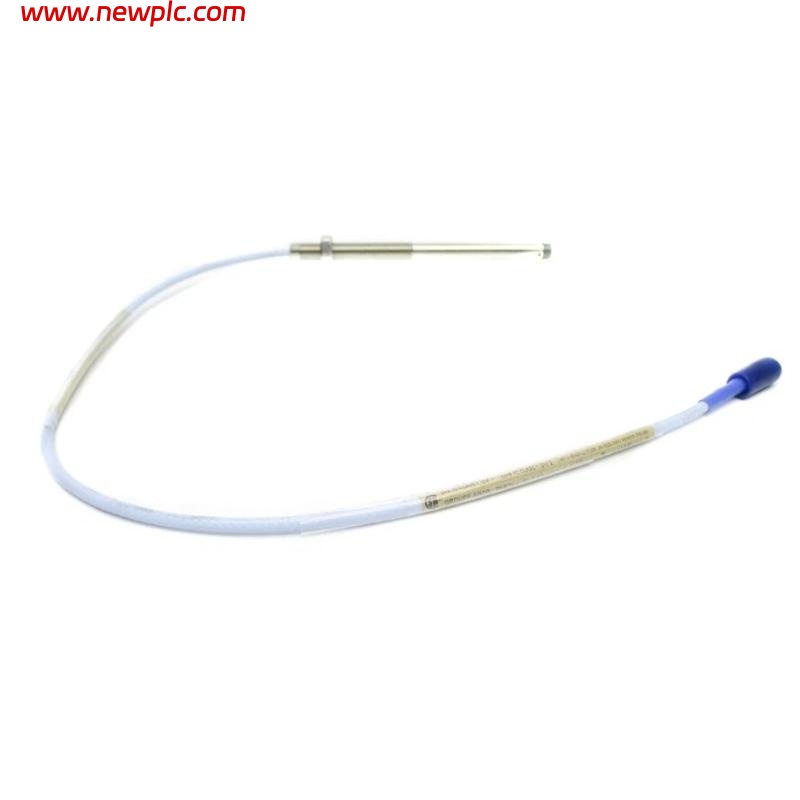

| Model | 330101-00-15-10-02-05 (3300 XL 8 mm) |
| Probe Tip Diameter | 8.0 mm (0.31 in) |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Material (Probe Tip) | PPS (Polyphenylene sulfide) |
| Material (Probe Case) | AISI 303/304 Stainless Steel |
| Operating Temperature (Probe) | -52°C to +177°C (-62°F to +350°F) |
| Operating Temperature (ETR Probe) | Up to +218°C (+425°F) (probe tip) |
| Recommended Gap | 1.27 mm (50 mils) |
| Linear Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Frequency Response | 0 to 10 kHz (+0, -3 dB) |
| Shaft Minimum Diameter | 50.8 mm (2 in) |
| Minimum Target Size | 15.2 mm (0.6 in) diameter (flat target) |
| Connector Type | Miniature coaxial ClickLoc |
| Cable Type | 75Ω triaxial FEP insulated |
| Maximum Cable Bend Radius | 25.4 mm (1 in) |
| Maximum Thread Engagement | 0.563 in (3/8-24 thread) or 15 mm (M10) |
| Tensile Strength | 330 N (75 lbf) probe case to lead |
| Environmental Compliance | RoHS, CE, FCC, SIL2/SIL3 certified |
FAQ
FAQ
Q1: What environmental certifications does the probe support?
A1: It meets RoHS, CE, FCC standards and is certified for SIL2/SIL3 functional safety.
Q2: What is the linear measurement range of this probe?
A2: The linear range is 0.25 mm to 2.3 mm (10 mils to 90 mils).
Q3: What is the operating temperature range of the probe?
A3: The standard probe operates from -52°C to +177°C, and the ETR version can go up to +218°C.
Q4: What is the recommended shaft diameter for this probe?
A4: The recommended minimum shaft diameter is 76.2 mm (3 inches), but it can work with shafts as small as 50.8 mm (2 inches).
Q5: What is the total length and weight of this model?
A5: This model has a total length of 1.0 meter and weighs approximately 0.323 kg.
Q6: What is the frequency response of the probe?
A6: The frequency response is 0 to 10 kHz, +0/-3 dB.
Q7: What is the minimum cable bend radius?
A7: The minimum permissible cable bend radius is 25.4 mm (1 inch).
Q8: What is the recommended installation gap?
A8: The recommended installation gap is 1.27 mm (50 mils).
