Technical Specifications
| Parameter | Specification |
|---|---|

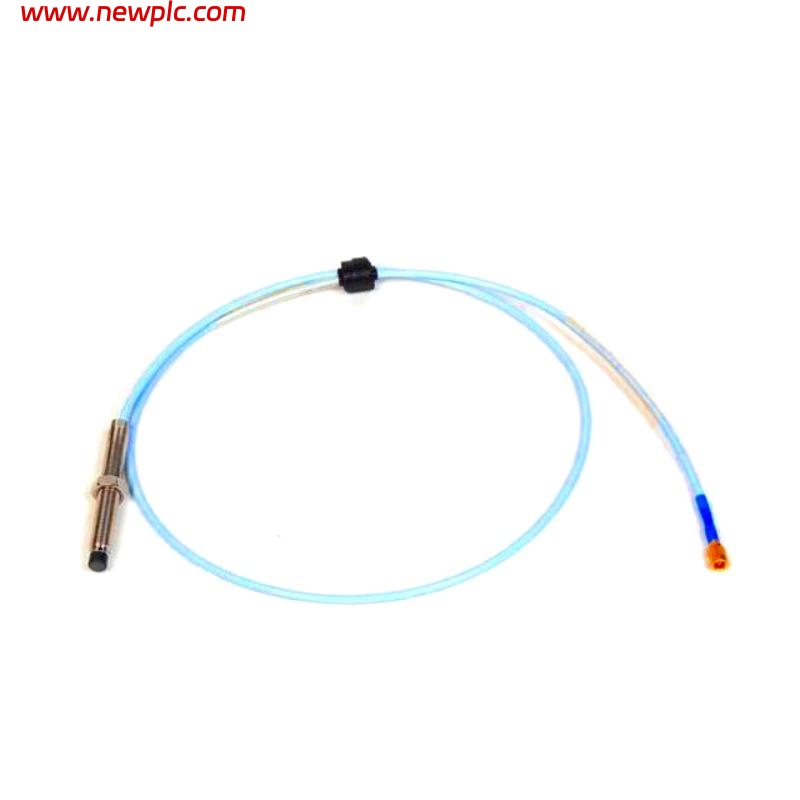

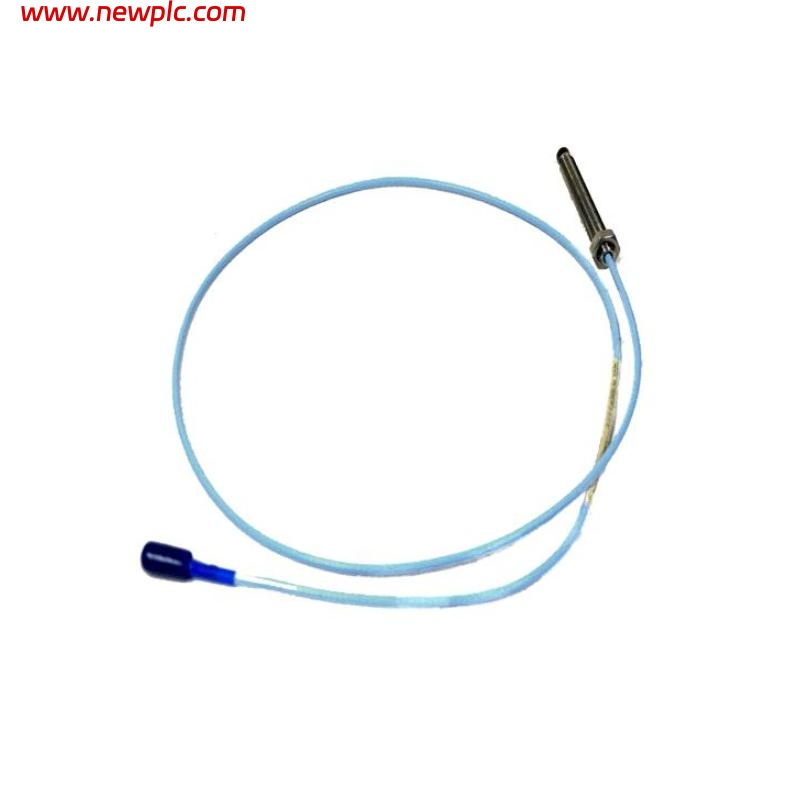

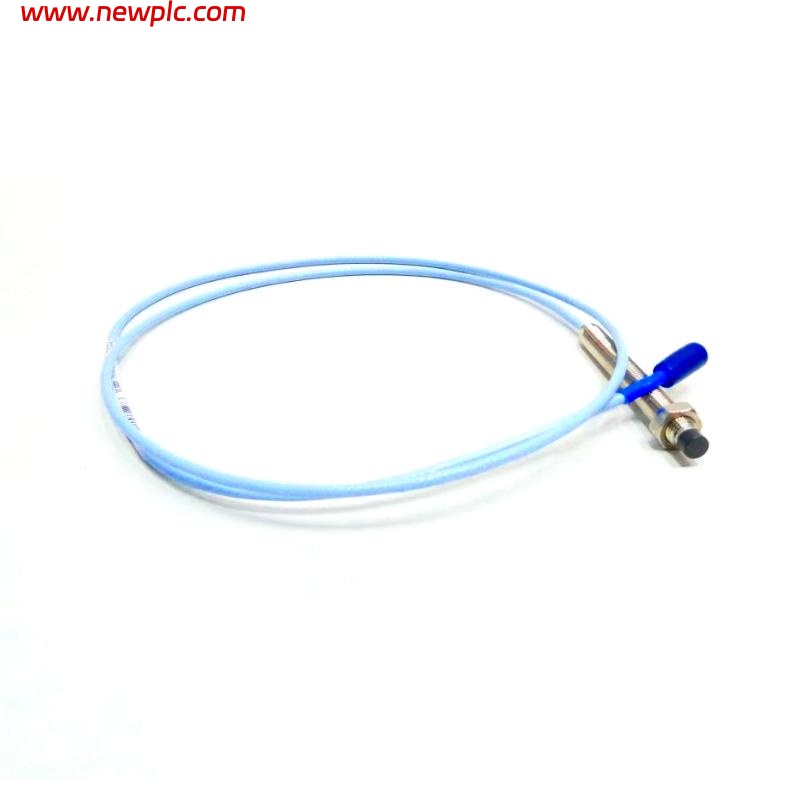

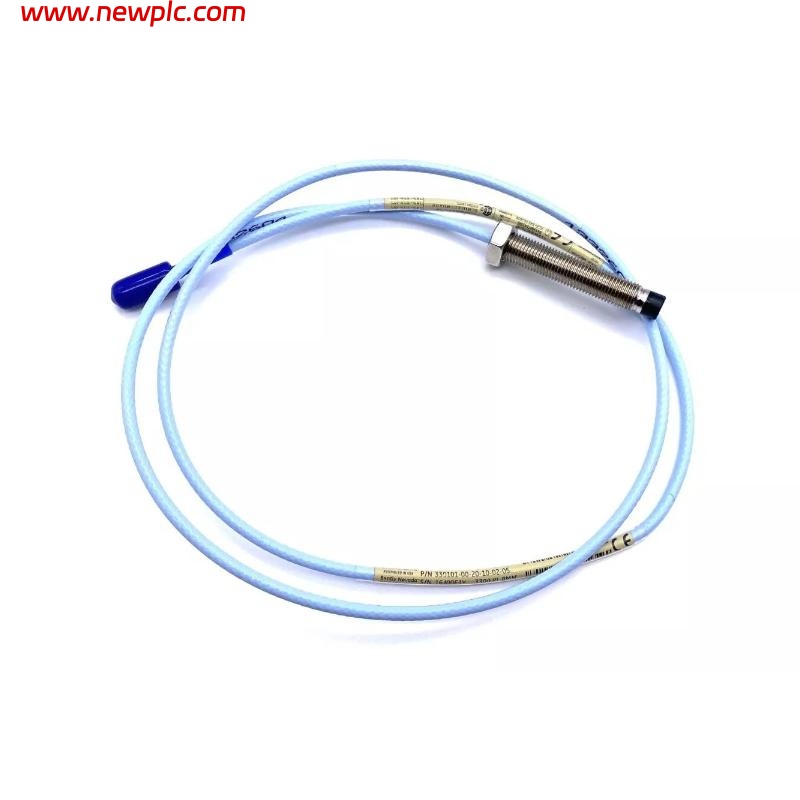

| Model | Bently Nevada 330101-00-14-15-02-05 3300 XL 8 mm Proximity Probe |
| Total Length | 1.5 meters |
| Weight | 0.484 kg |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 stainless steel |
| Cable Type | 75Ω triaxial, FEP insulated |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in) |
| Linear Range | 2 mm (80 mils), recommended gap: 1.27 mm (50 mils) |
| Frequency Response | 0–10 kHz, +0/-3 dB |
| Operating Temperature | Probe: -52°C to +177°C; Cable: -52°C to +177°C |
| Storage Temperature | Probe: -52°C to +177°C; Cable: -52°C to +177°C |
| Humidity | ≤3% change in ASF @ 93% RH for 56 days |
| Mounting Thread | 3/8-24 UNF |
| Connector | Miniature coaxial ClickLoc with protector |
| Output Scale Factor | 7.87 V/mm (200 mV/mil) ±5% over linear range |
| Recommended Shaft Diameter | ≥76.2 mm (3 in) |
FAQ
FAQ
Q1: What applications is this probe designed for?
A1: It is designed primarily for vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
Q2: What is the measurement range of this probe?
A2: The linear measurement range is 0.25–2.3 mm (10–90 mils), with a recommended gap of approximately 1.27 mm (50 mils).
Q3: What standards does this product comply with?
A3: It complies with API 670, CE marking, and RoHS directives.
Q4: Does the sensor have good electromagnetic interference immunity?
A4: Yes, the Proximitor sensor is highly immune to RFI/EMI, meeting CE requirements.
Q5: Can the cable withstand high temperatures?
A5: The standard cable withstands up to 177°C. With the ETR option, it can withstand up to 260°C.
Q6: Are special tools required to install the connectors?
A6: No, the ClickLoc connectors are finger-tightened with a locking mechanism, requiring no special tools.
Q7: Is it compatible with non-XL series 8mm probes?
A7: Yes, the 3300 XL series is fully compatible and interchangeable with non-XL 8mm probes and sensors.
Q8: What is the recommended minimum shaft diameter?
A8: A minimum shaft diameter of 76.2 mm (3 inches) is recommended for optimal measurement accuracy.
