Technical Specifications
| Parameter | Value |
|---|---|

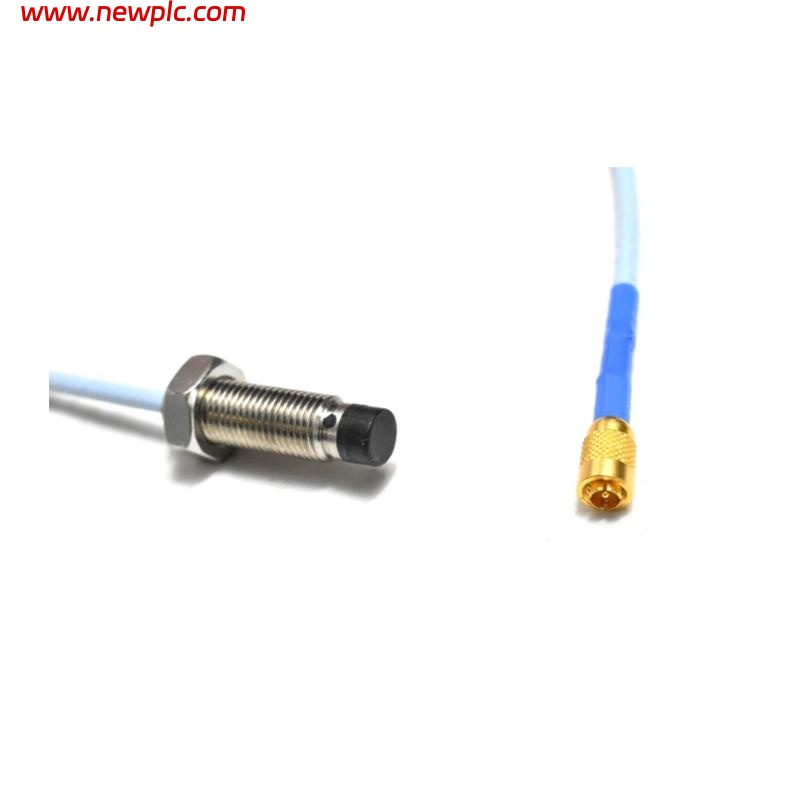

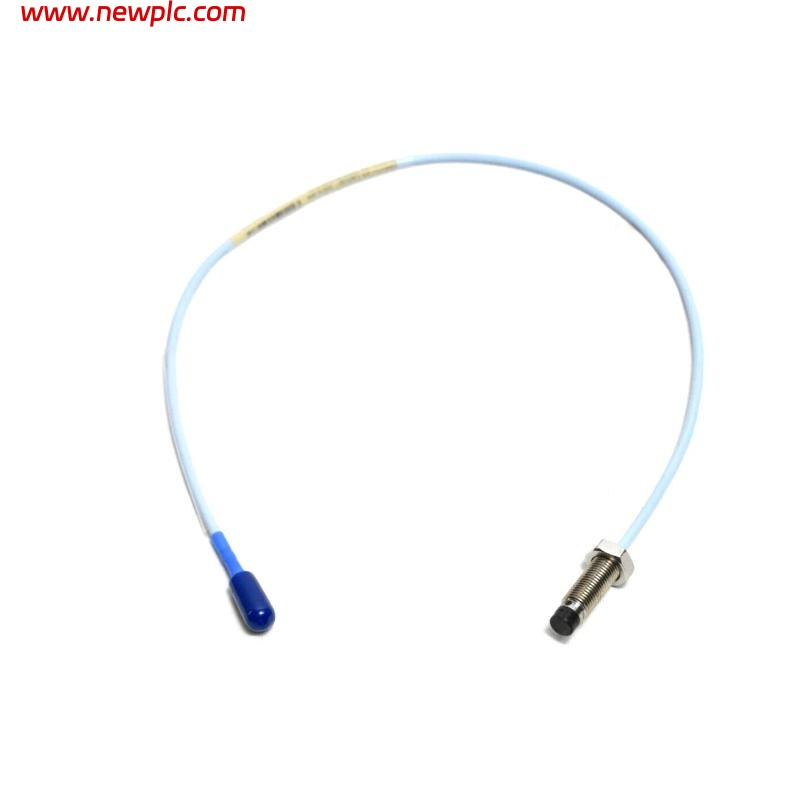

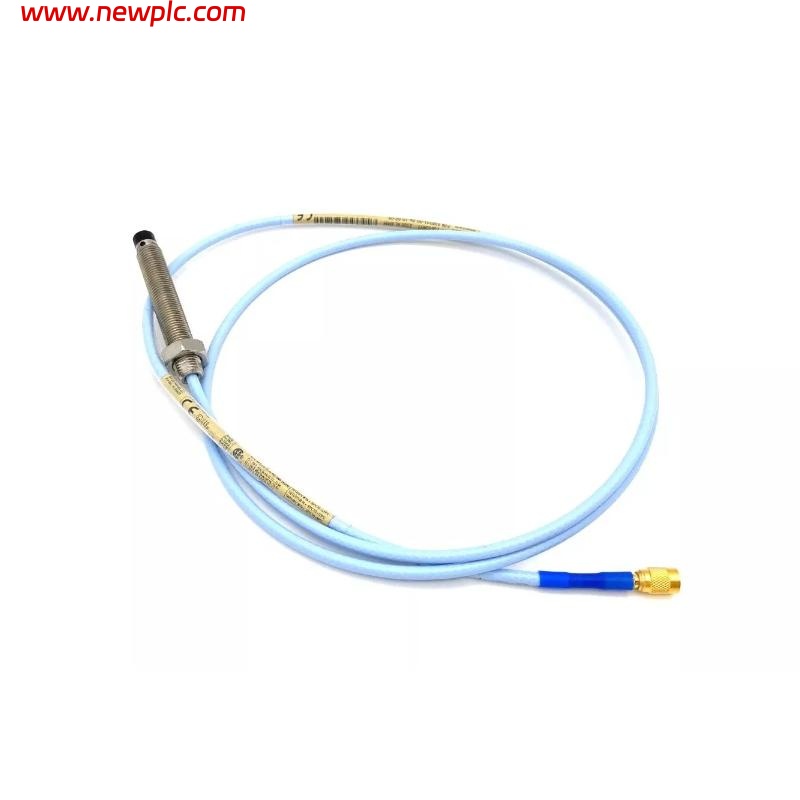

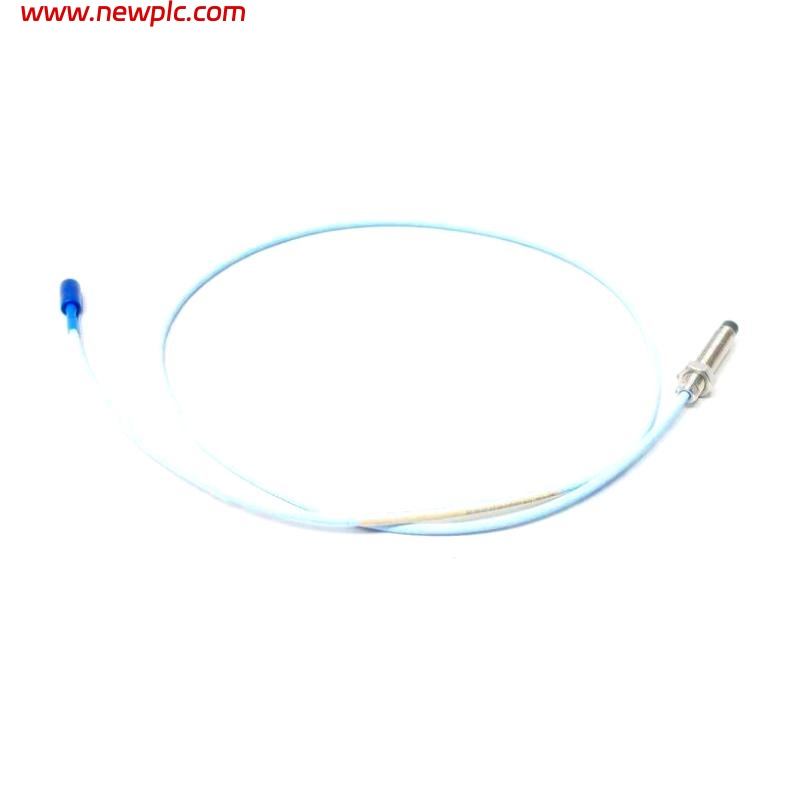

| Model | Bently Nevada 330101-00-12-15-02-00 |
| Probe Type | 3300 XL 8 mm Proximity Probe |
| Total Length | 1.5 meters |
| Weight | 0.484 kg |
| Diameter of Probe Tip | 8.0 mm |
| Probe Case Material | AISI 303 or 304 Stainless Steel |
| Probe Cable | 75Ω triaxial, FEP insulated |
| Minimum Bend Radius | 25.4 mm |
| Operating Temperature Range | -52°C to +177°C (Standard) |
| Extended Temperature Range | Up to +218°C (probe tip) |
| Linear Measurement Range | 0.25 mm to 2.3 mm |
| Frequency Response | 0 to 10 kHz |
| Recommended Shaft Diameter | ≥ 76.2 mm |
| Pressure Seal Material | Viton® O-ring |
| Connector Type | Gold-plated ClickLoc |
| Tensile Strength (probe-lead) | 330 N |
FAQ
FAQ
Q1: What is the measurement principle of this probe?
A1: It uses non-contact eddy current technology to measure both static position and dynamic vibration of metallic targets, with output voltage proportional to distance.
Q2: In which environments can the 330101 probe be installed?
A2: It can operate in high humidity, high temperature, and high-frequency interference environments, compliant with API 670 standard.
Q3: What is the linear measurement range of the probe?
A3: The linear measurement range is 0.25 mm to 2.3 mm.
Q4: What is the maximum temperature the probe can withstand?
A4: The standard version can withstand up to +177°C, and the extended temperature version up to +218°C at the probe tip.
Q5: What is the recommended minimum shaft diameter?
A5: The recommended minimum shaft diameter is 76.2 mm.
Q6: What is the frequency response of the probe?
A6: The frequency response range is 0 Hz to 10 kHz (+0, -3 dB).
Q7: What is the minimum cable bend radius?
A7: The minimum cable bend radius is 25.4 mm.
Q8: What material is used for the probe’s pressure seal?
A8: The pressure seal uses a Viton® O-ring, providing good sealing performance.
