Technical Specifications
| Item | Specification |
|---|---|
| Model | 330101-00-32-10-02-00 |

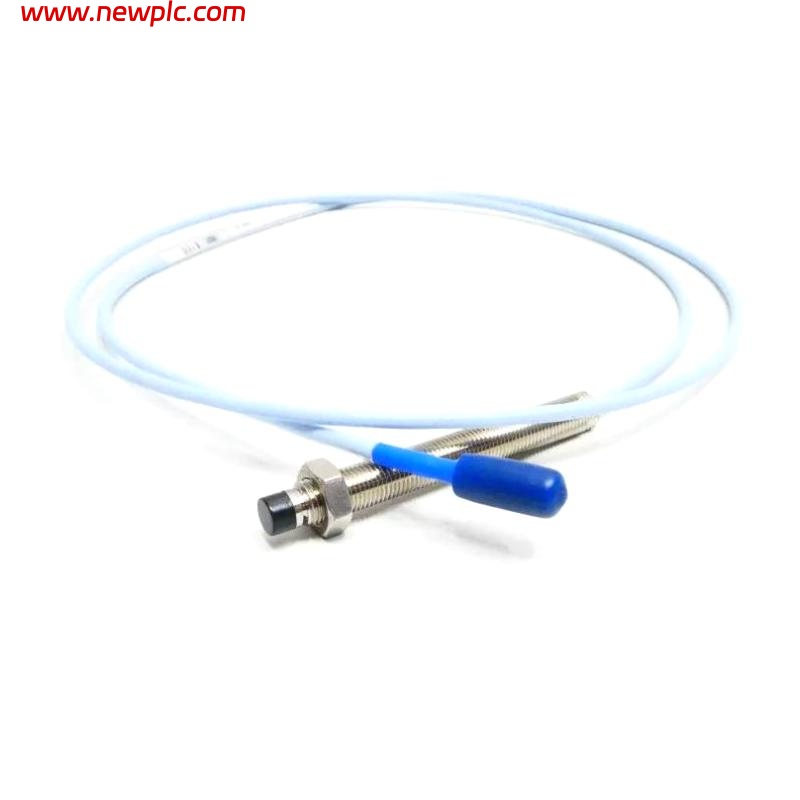

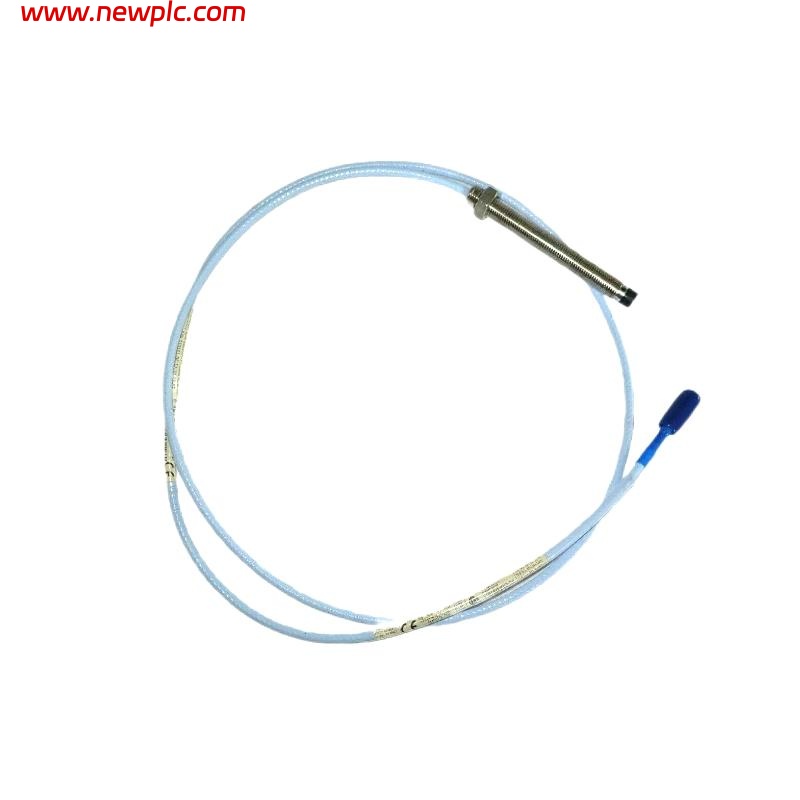

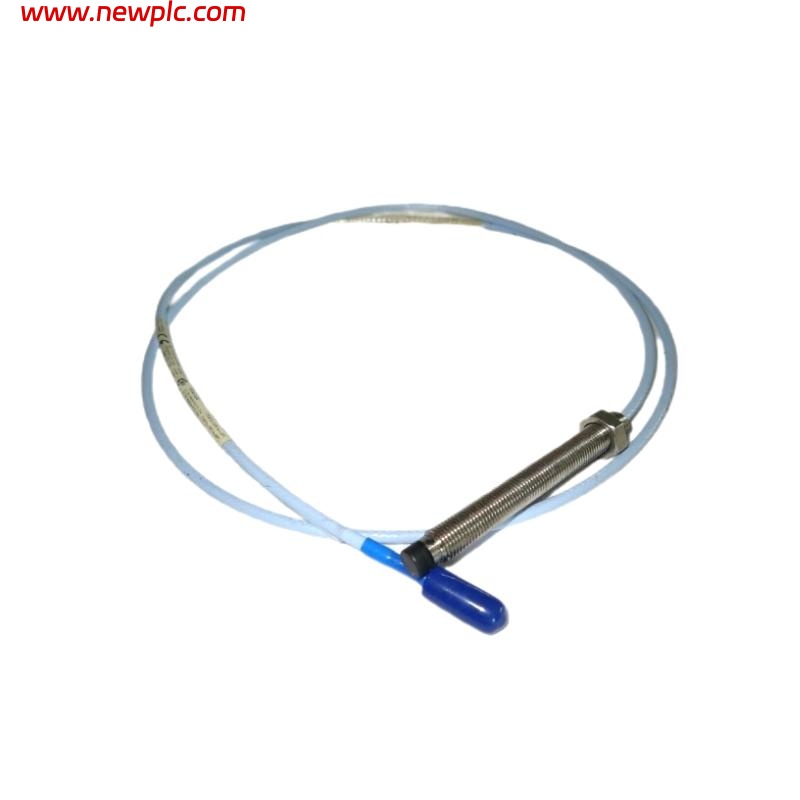

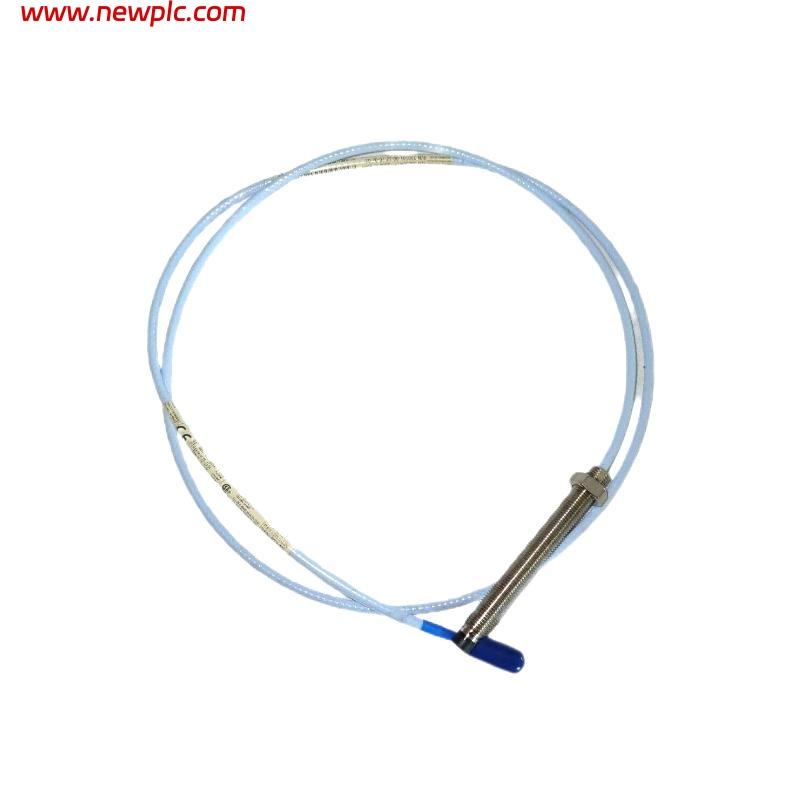

| Type | 3300 XL 8 mm Proximity Probe |
| Measurement Principle | Eddy current technology |
| Measurement Range | 0–2 mm (typical) |
| Sensitivity | 7.87 mV/µm (nominal) |
| Frequency Response | DC to 10 kHz (–3 dB) |
| Probe Tip Diameter | 8 mm |
| Probe Length | 32 m (system length with 10 ft extension cable) |
| Cable Type | Coaxial, factory-matched |
| Connector Type | Micro-dot connector |
| Housing Material | Stainless steel |
| Protection Rating | IP67 |
| Mounting Method | Threaded installation |
| Operating Temperature | –35 °C to +177 °C |
| Application Environment | Industrial, oil-resistant, and vibration-resistant |
| Matching Components | 3300 XL Extension Cable and 3300 XL Proximitor Sensor |
| Applications | Shaft vibration, position, and displacement monitoring |
| Dimensions | Probe head diameter 8 mm, total system length 32 m |
| Weight | 0.27 kg (approximate) |
FAQ
FAQ
Q1: What is the purpose of the 330101-00-32-10-02-00 probe?
It is used for measuring shaft vibration, position, and displacement in rotating machinery with high precision.
Q2: What does “32-10” in the model number mean?
“32” refers to the probe’s total system length, and “10” indicates a 10 ft extension cable matched during calibration.
Q3: Which proximitor sensor is compatible with this probe?
It is designed for use with the 3300 XL Proximitor Sensor to ensure accurate system performance.
Q4: Can this probe be used in harsh environments?
Yes, its stainless-steel construction and IP67 rating make it resistant to oil, dust, and vibration.
Q5: What type of signal does it output?
It provides a voltage signal directly proportional to shaft vibration and displacement.
Q6: What is the operating temperature range?
The probe performs reliably from –35 °C to +177 °C.
Q7: Is it suitable for high-speed machinery monitoring?
Yes, with a frequency response up to 10 kHz, it is ideal for high-speed rotating equipment.
Q8: What are the physical characteristics?
It has an 8 mm diameter probe tip, a total system length of 32 m, and weighs approximately 0.27 kg.
