Technical Specifications
| Item | Specification |
|---|---|
| Model | 330101-00-38-90-02-00 |

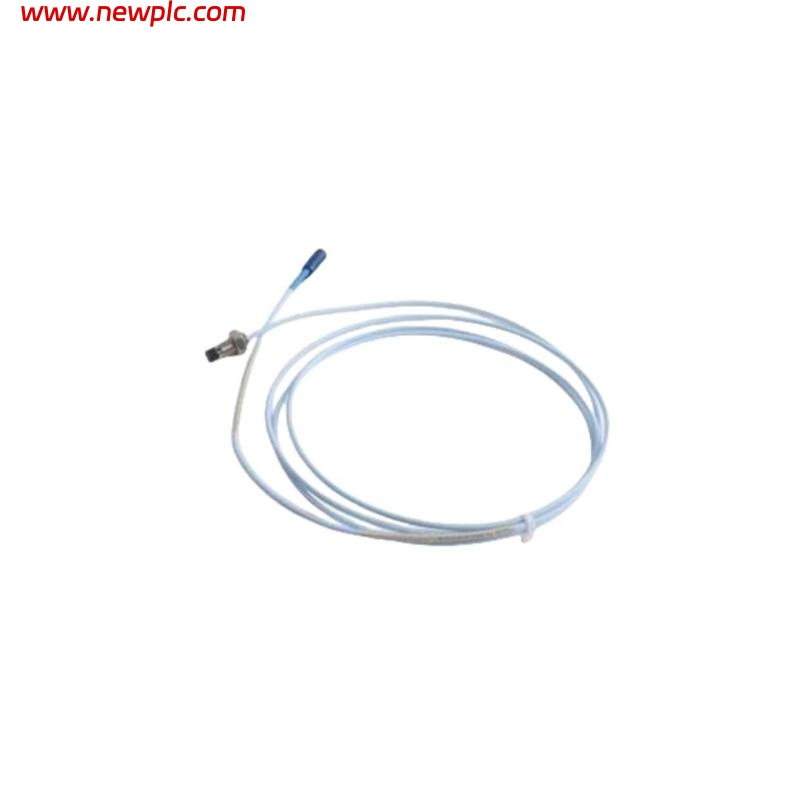

| Type | 3300 XL 8 mm Proximity Probe |
| Measurement Principle | Eddy current technology |
| Measurement Range | 0–2 mm (typical) |
| Sensitivity | 7.87 mV/µm (nominal) |
| Frequency Response | DC to 10 kHz (–3 dB) |
| Probe Tip Diameter | 8 mm |
| Probe Length | 38 m (system length with 90 ft extension cable) |
| Cable Type | Coaxial, factory-matched |
| Connector Type | Micro-dot connector |
| Housing Material | Stainless steel |
| Protection Rating | IP67 |
| Mounting Method | Threaded installation |
| Operating Temperature | –35 °C to +177 °C |
| Application Environment | Industrial, oil-resistant, and vibration-resistant |
| Matching Components | 3300 XL Extension Cable and 3300 XL Proximitor Sensor |
| Applications | Shaft vibration, position, and displacement monitoring |
| Dimensions | Probe head diameter 8 mm, total system length 38 m |
| Weight | 0.29 kg (approximate) |
FAQ
FAQ
Q1: What is the main application of the 330101-00-38-90-02-00 probe?
It is primarily used for monitoring shaft vibration, position, and displacement in rotating machinery systems.
Q2: What does the “38-90” in the model number represent?
“38” indicates the total system length, and “90” refers to a 90 ft matched extension cable.
Q3: Which proximitor sensor is compatible with this probe?
It is designed to work with the 3300 XL Proximitor Sensor for accurate displacement measurement.
Q4: Can this probe operate in harsh industrial environments?
Yes, its stainless-steel housing and IP67 rating ensure resistance to oil, dust, and mechanical vibration.
Q5: What is the output type of this probe?
It produces a voltage output proportional to shaft vibration and displacement.
Q6: What temperature range can it handle?
It performs reliably between –35 °C and +177 °C.
Q7: Is the probe suitable for high-speed equipment?
Yes, its frequency response up to 10 kHz makes it ideal for high-speed rotating machinery monitoring.
Q8: What are the probe’s size and weight specifications?
The probe has an 8 mm tip diameter, a total system length of 38 m, and weighs approximately 0.29 kg.
