Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | Bently Nevada 330101-00-45-10-11-00 |

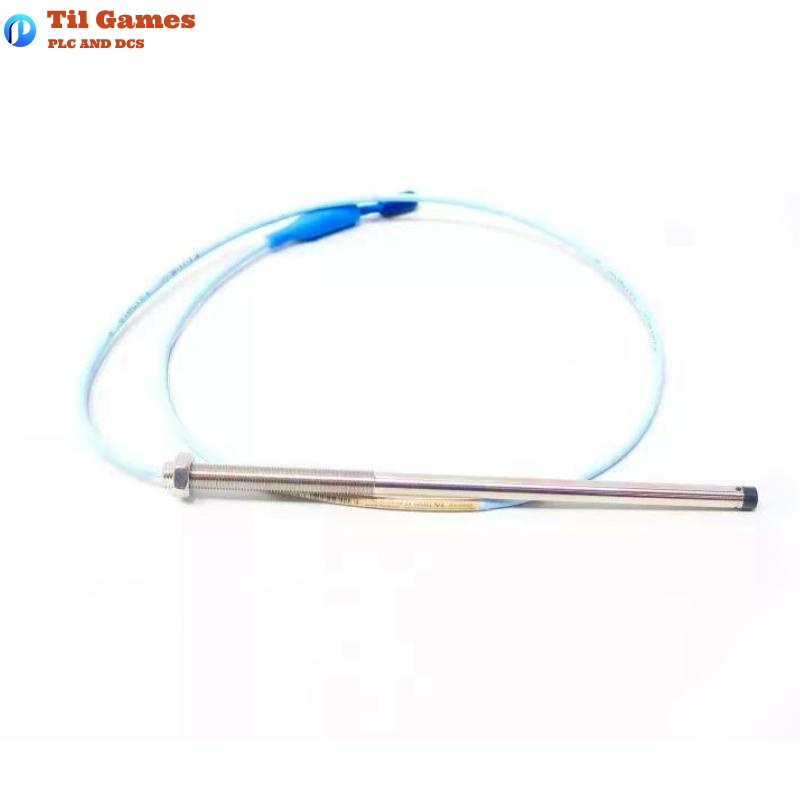

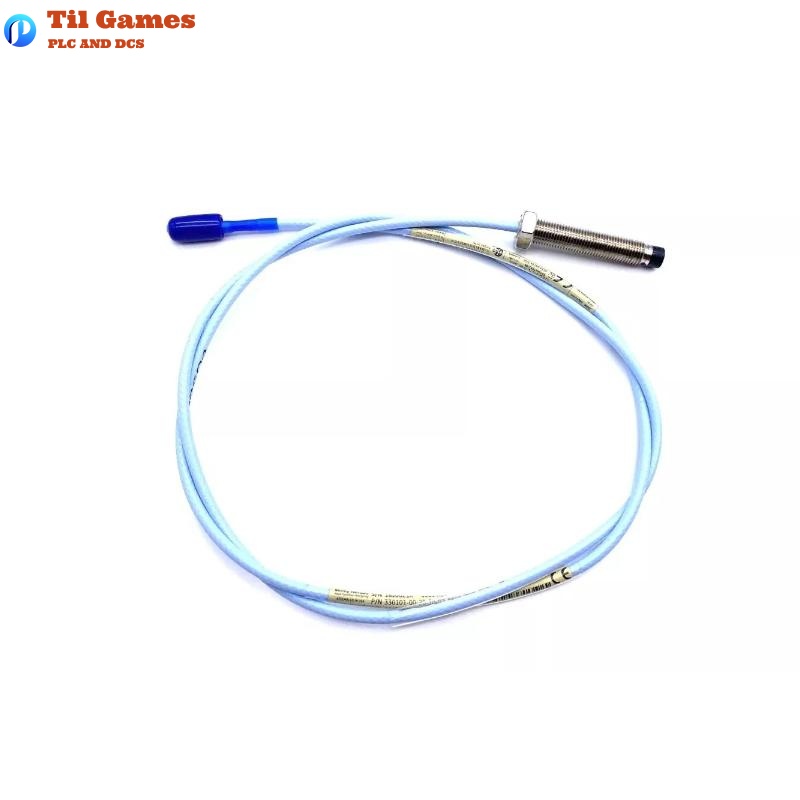

| Probe Type | 3300 XL 8 mm Proximity Probe |
| Total Length | 1.0 meter |
| Total Weight | 0.323 kg |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Probe Case Material | AISI 303 or 304 Stainless Steel |

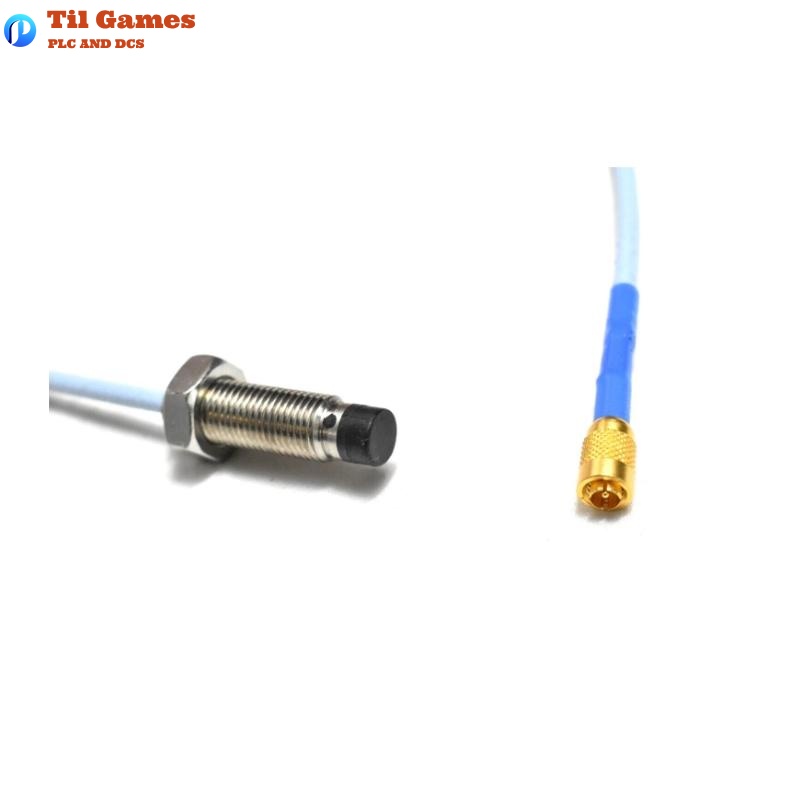

| Connector Type | Miniature coaxial ClickLoc (with protector, FluidLoc cable) |
| Cable Type | 75Ω triaxial, FEP or PFA insulated |
| Operating Temperature (Probe) | -52°C to +177°C (standard), up to +218°C (ETR) |
| Operating Temperature (Extension Cable) | -52°C to +177°C (standard), up to +260°C (ETR) |
| Operating Temperature (Proximitor) | -52°C to +100°C |
| Linear Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Recommended Gap | Approx. 1.27 mm (50 mils), -9 Vdc |
| Scale Factor | 7.87 V/mm (200 mV/mil) ±5% (5 m or 1 m), ±6.5% (9 m) |
| Deviation from Straight Line | ±0.025 mm (1 m/5 m), ±0.038 mm (9 m) |
| Frequency Response | 0 to 10 kHz, ±3 dB |
| Minimum Target Diameter | 15.2 mm (0.6 in) |
| Minimum Shaft Diameter | 50.8 mm (2 in); Recommended: ≥76.2 mm (3 in) |
| Probe Pressure Seal | Viton® O-ring |
| Mounting Thread | 3/8-24 UNF |
| Compliance | API 670, CE, RoHS, SIL 2/3, ATEX/IECEx, FCC, ABS, CSA, NEMA |
FAQ
FAQ
Q1: What are the typical applications of this probe?
A1: It is primarily used for vibration and position measurements in fluid-film bearing machines, and also for Keyphasor and speed measurements.
Q2: Is this model compatible with other systems?
A2: Yes, the 330101 probe is fully compatible with both XL and non-XL 3300 series 5 mm and 8 mm systems.
Q3: What is the linear measurement range of the probe?
A3: The linear range is 2 mm, from 0.25 mm to 2.3 mm (approximately -1 Vdc to -17 Vdc).
Q4: What is the recommended probe gap setting?
A4: The recommended gap is approximately 1.27 mm (50 mils), corresponding to -9 Vdc.
Q5: What is the maximum operating temperature for this probe?
A5: The standard version can handle up to 177°C, while the ETR version can withstand up to 218°C (probe) and 260°C (cable).
Q6: Do individual components need to be calibrated?
A6: No calibration is needed when using all 3300 XL components. They are fully interchangeable.
Q7: How well does the probe resist electromagnetic interference?
A7: It features enhanced RFI/EMI immunity and meets CE compliance without requiring shielded conduit or metal housing.
Q8: Are special tools required to install the connectors?
A8: No, the ClickLoc connectors are designed for tool-free installation using a simple finger-tight “click” mechanism.
