Technical Specifications
| Parameter | Specification |
|---|---|

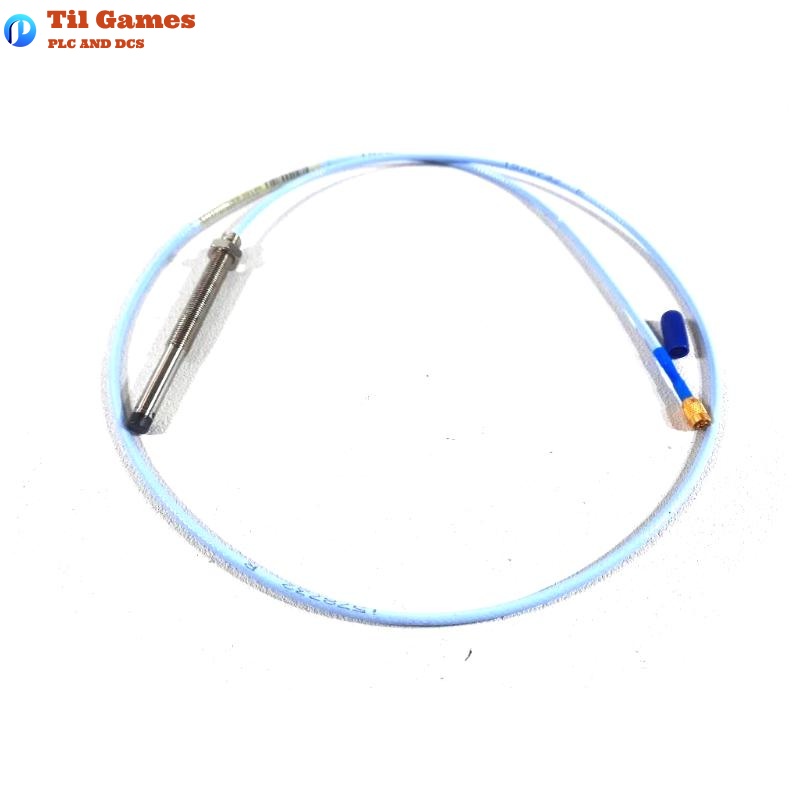

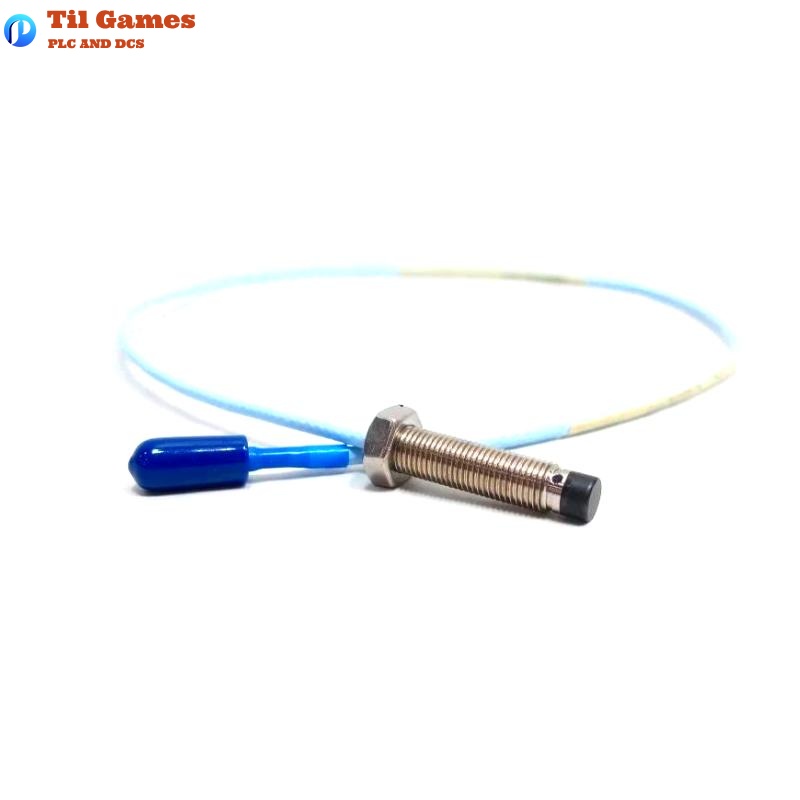

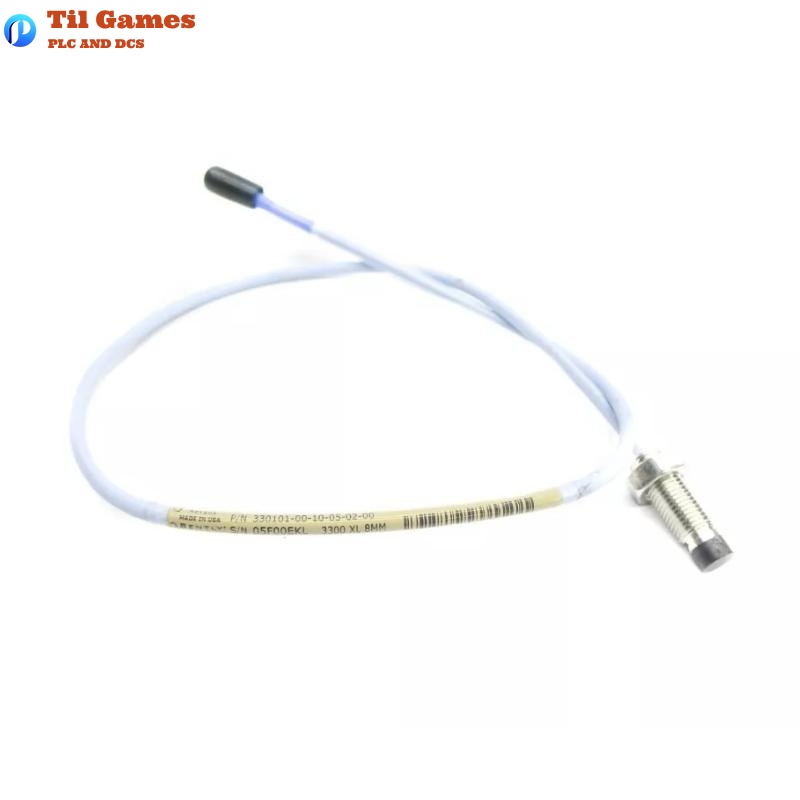

| Product Model | 330101-00-45-10-11-05 |
| Probe Tip Diameter | 8.0 mm |
| Case Thread Type | 3/8-24 UNF |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Linear Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Scale Factor | 7.87 V/mm (200 mV/mil) ±5% (1 m system) |
| Temperature Range (Probe) | -52°C to +177°C |
| Temperature Range (Cable) | -52°C to +177°C |
| Temperature Range (Proximitor) | -52°C to +100°C (operating) |
| Output Resistance | 50 Ω |
| Capacitance (Cable) | 69.9 pF/m |
| Minimum Shaft Diameter | 50.8 mm |
| Recommended Shaft Diameter | ≥76.2 mm |
| Probe Cable Type | 75 Ω triaxial FEP insulated |
| Connector Type | ClickLoc miniature coaxial |
| Pressure Seal Rating | Viton® O-ring sealed (not pressure tested) |
| Compliance | API 670, CE, FCC Part 15, RoHS, ATEX, IECEx, SIL 2/3 |
| Mounting Torque (Recommended) | 11.2 N·m (100 in·lbf) standard probe |
| Minimum Cable Bend Radius | 25.4 mm |
FAQ
FAQ
Q1: What types of equipment is the 330101 probe suitable for?
A1: It is mainly used for vibration and position measurements on fluid-film bearing machines, as well as for Keyphasor reference and speed measurements.
Q2: Does this model require an extension cable?
A2: No, the 330101-00-45-10-11-05 is a 1-meter system and does not use an extension cable.
Q3: Is this probe compliant with API 670 standards?
A3: Yes, the 3300 XL 8 mm system fully complies with the API 670 standard for mechanical configuration, linear range, accuracy, and temperature stability.
Q4: Does this probe offer EMI/RFI immunity?
A4: Yes, it features enhanced immunity to RFI/EMI and complies with CE mark requirements.
Q5: Can it be used with non-XL 3300 series components?
A5: Yes, it is backward compatible, but system performance will be limited to the specifications of the non-XL components.
Q6: What is the maximum temperature the probe can withstand?
A6: The standard probe can withstand up to +177°C, and the ETR version up to +218°C at the tip.
Q7: Is the probe certified for use in hazardous or marine environments?
A7: Yes, it has multiple certifications including ATEX, IECEx, and CSA for use in Zone 0 and Zone 2 hazardous areas.
Q8: How is the probe’s sealing integrity maintained?
A8: The probe uses a Viton® O-ring for pressure sealing and ClickLoc connectors with optional protectors for improved environmental sealing.
