Technical Specifications
| Parameter | Description |
|---|---|
| Model | Bently Nevada 330101-00-52-15-02-05 |

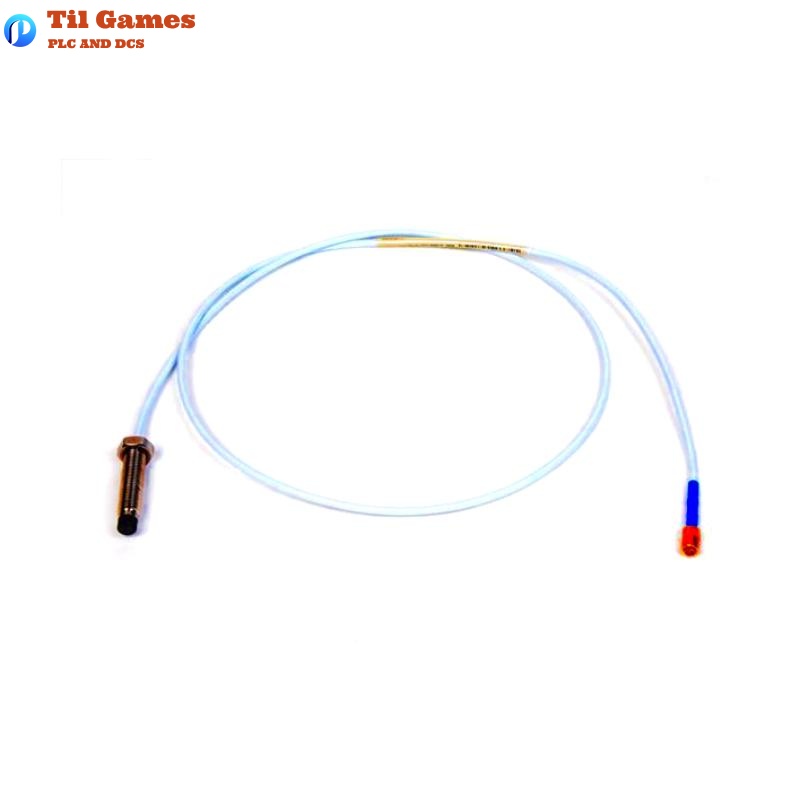

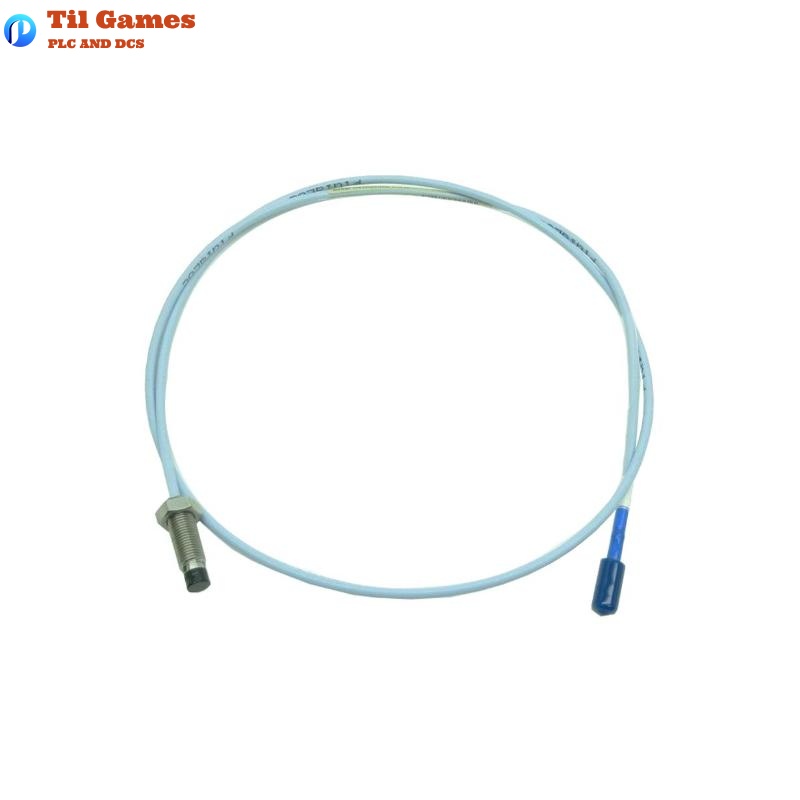

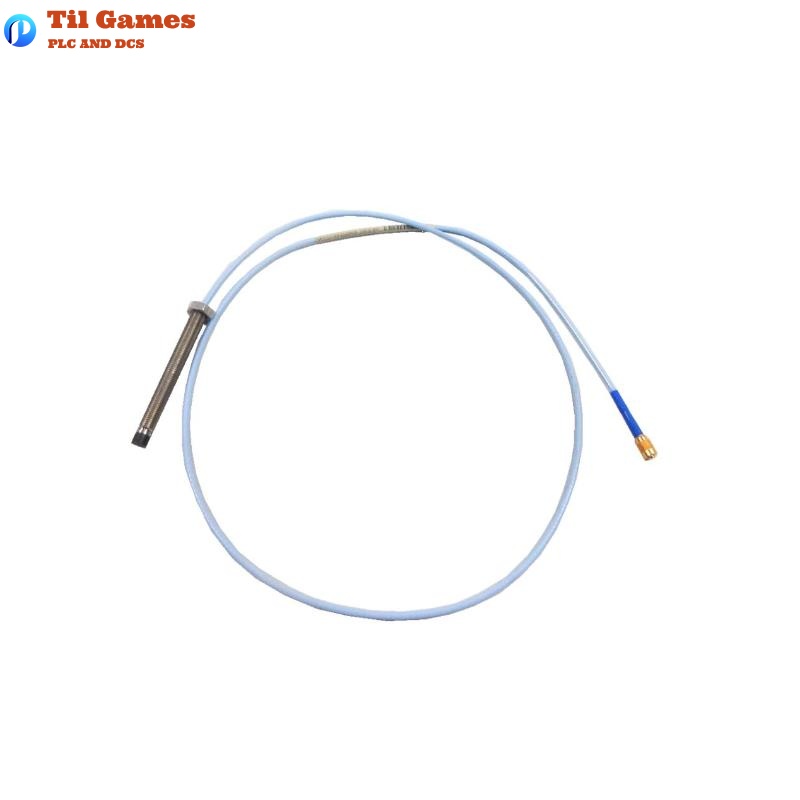

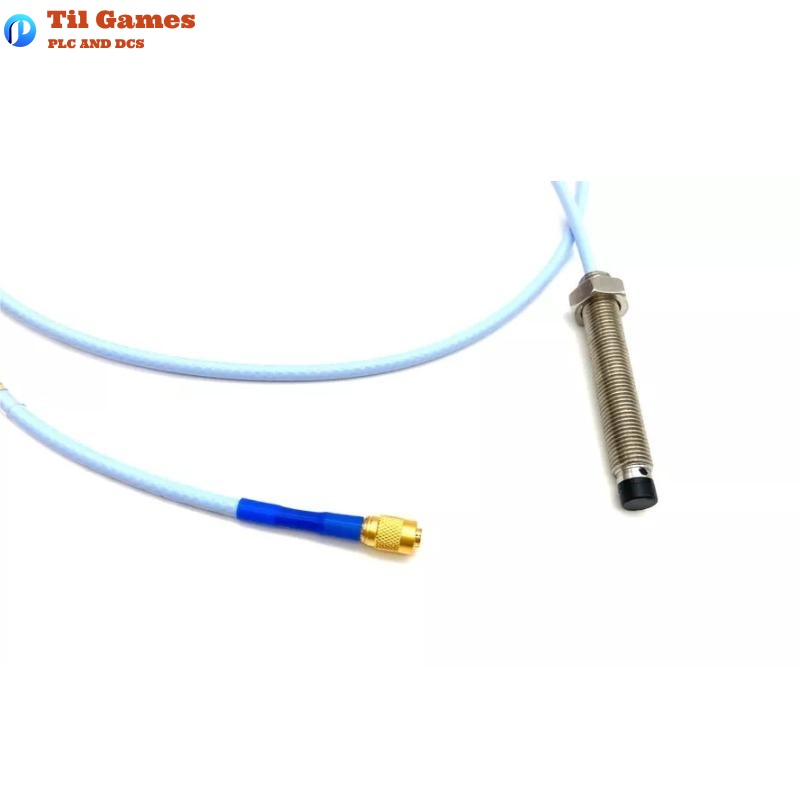

| Probe Type | 3300 XL 8 mm Proximity Probe |
| Sensing Principle | Eddy current |
| Application | Shaft vibration, position, and Keyphasor reference |
| Total Length | 1.5 meter |
| Weight | 0.485 kg (approx.) |
| Tip Material | Polyphenylene sulfide (PPS) |
| Case Material | AISI 303 or 304 stainless steel |
| Cable Type | 75 Ω triaxial, FEP insulated |
| Connector Type | Miniature coaxial ClickLoc with standard cable |
| Probe DC Resistance | 7.73 Ω ± 0.50 (1.5 m probe) |
| Linear Range | 2 mm (80 mils); from 0.25 to 2.3 mm |
| Recommended Gap Voltage | -9 Vdc (approx. 1.27 mm or 50 mils) |
| Incremental Scale Factor (ISF) | 7.87 V/mm (200 mV/mil) ± 5% (standard 5 m or 1 m system) |
| DSL (5 m/1 m System) | ±0.025 mm (±1 mil) |
| Operating Temp (Probe) | -52°C to +177°C |
| Operating Temp (Cable) | -52°C to +177°C |
| Humidity Tolerance | < 3% change in ASF at 93% RH (per IEC 68-2-3) |
| Minimum Cable Bend Radius | 25.4 mm |
| Minimum Target Diameter | 15.2 mm (0.6 in) |
| Recommended Shaft Diameter | ≥ 76.2 mm (3 in) |
| Environmental Compliance | FCC Part 15, RoHS 2011/65/EU, EMC Directive 2014/30/EU |
| Hazardous Area Ratings | ATEX, IECEx, cNRTLus approvals |
FAQ
FAQ
Q1: What is the function of the Bently Nevada 330101-00-52-15-02-05 probe?
A1: It measures shaft vibration, position, and speed on fluid-film bearing machines using eddy current sensing.
Q2: Is the probe compliant with API 670 standards?
A2: Yes, the 3300 XL 8 mm system complies with API 670 for linear range, mechanical configuration, and performance.
Q3: What is the recommended installation gap voltage for this probe?
A3: The recommended gap setting is approximately -9 Vdc, which corresponds to a 1.27 mm (50 mil) distance from the target.
Q4: Can I mix XL and non-XL series components in a system?
A4: Mixing is possible, but it will limit the system’s performance to that of the non-XL components.
Q5: What is the linear measurement range of this proximity probe?
A5: The linear range is 2 mm (from 0.25 mm to 2.3 mm).
Q6: What is the durability of the connectors used in this probe?
A6: The ClickLoc connectors are corrosion-resistant, gold-plated, and require only finger-tight torque.
Q7: What material is used for the probe’s tip and casing?
A7: The probe tip is made of PPS (Polyphenylene sulfide), and the case is stainless steel (AISI 303 or 304).
Q8: What is the weight and length of this model?
A8: The total length is 1.5 meters, and the weight is approximately 0.485 kg.
