Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Bently Nevada 330101-00-53-05-02-05 |

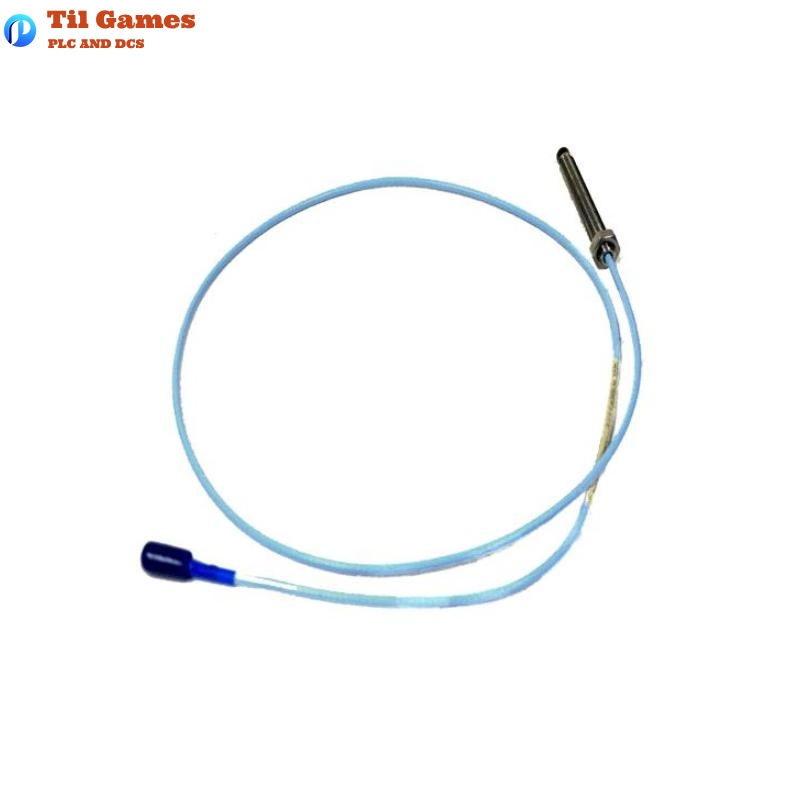

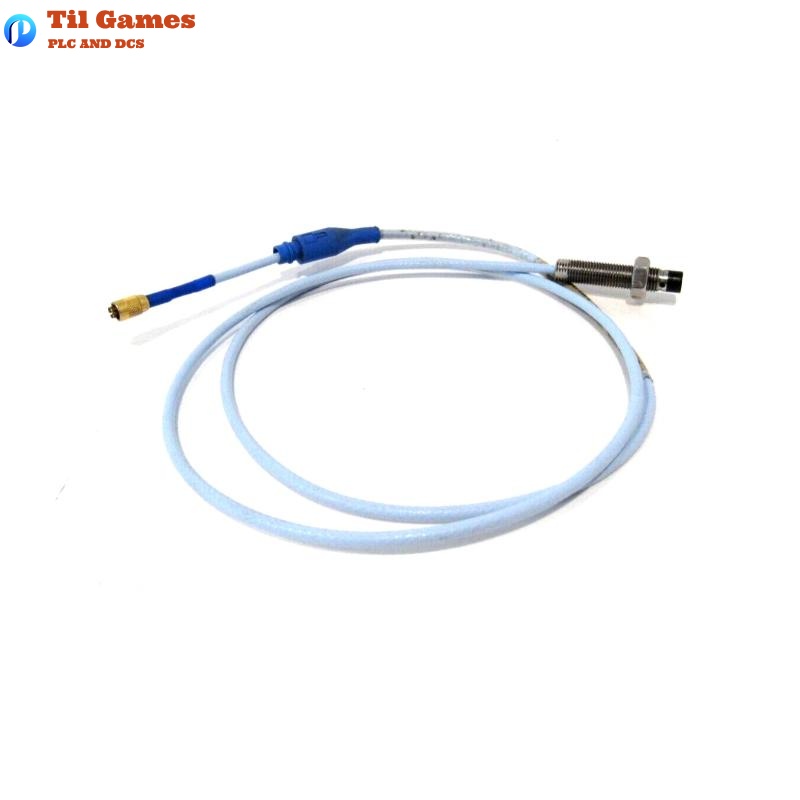

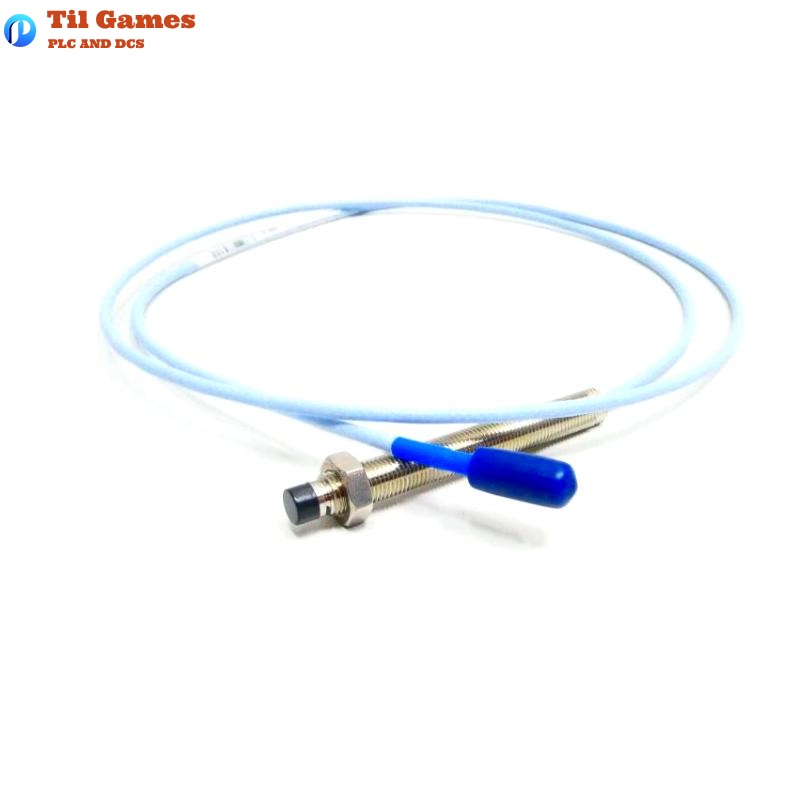

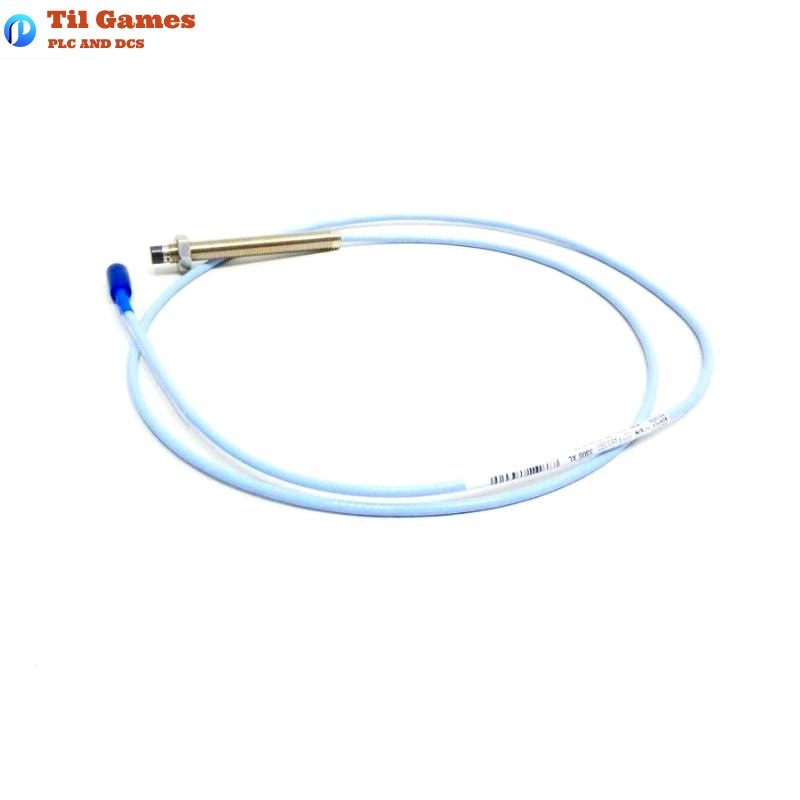

| Product Type | 3300 XL 8 mm Proximity Probe |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 stainless steel (SST) |
| Cable Type | 75Ω triaxial, FEP insulated |
| Connector Type | Miniature coaxial ClickLoc (gold-plated) |
| Cable Length | 0.5 meter |
| Cable Pull Strength | 330 N (probe case to lead), 270 N (lead to extension cable) |
| Gap Measurement Range | 0.25 mm to 2.3 mm (10 mils to 90 mils) |
| Recommended Gap | 1.27 mm (50 mils), corresponding to -9 Vdc |
| Incremental Scale Factor (ISF) | 7.87 V/mm (200 mV/mil) ±5% (standard 5m system) |
| DSL (Deviation from Best Fit Line) | ±0.025 mm (±1 mil) |
| Linear Range | 2 mm (80 mils) |
| Frequency Response | 0 – 10 kHz (+0, -3 dB) |
| Operating Temperature (Probe) | -52°C to +177°C |
| Storage Temperature (Probe) | -52°C to +177°C |
| Minimum Shaft Diameter | 50.8 mm (Recommended ≥76.2 mm) |
| Minimum Target Size | 15.2 mm diameter |
| Total Length | 0.5 meter |
| Weight | 0.162 kg (probe only) |
| Environmental Sealing | Viton O-ring |
| Certification | CSA, ATEX, IECEx, RoHS, FCC, EMC, Maritime |
FAQ
FAQ
Q1: What is the recommended gap setting for this probe?
A1: The recommended gap setting is 1.27 mm (50 mils), corresponding to approximately -9 Vdc.
Q2: What are the typical applications of this proximity probe?
A2: It is mainly used for vibration and position monitoring on fluid-film bearing machines, and also for Keyphasor and speed measurement.
Q3: Does this probe comply with API 670 standards?
A3: Yes, the standard 5-meter system fully complies with API 670 mechanical configuration, linear range, accuracy, and temperature stability.
Q4: Is the probe compatible with older 3300 series components?
A4: Yes, the 3300 XL 8 mm components are electrically and physically compatible with non-XL 3300 5 mm and 8 mm components.
Q5: Is this product suitable for harsh environments?
A5: Yes, it features a PPS tip and stainless steel body, offering excellent resistance to corrosion and high temperature.
Q6: Are any special tools required for connector installation?
A6: No. The ClickLoc connectors are designed for finger-tight installation with a locking “click” mechanism.
Q7: Does the model support fluid leak prevention?
A7: Yes, optional FluidLoc cables are available to prevent oil or fluid leakage through the cable.
Q8: What is the total length and weight of this model?
A8: This specific model has a total length of 0.5 meters and a weight of approximately 0.162 kg (probe only).
