Technical Specifications
| Parameter | Specification |
|---|---|

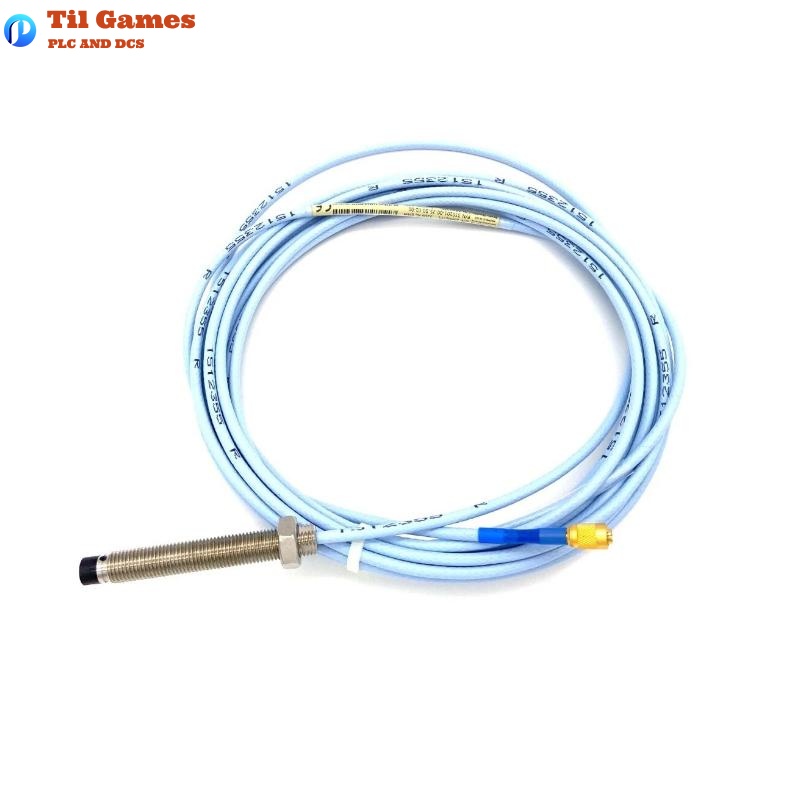

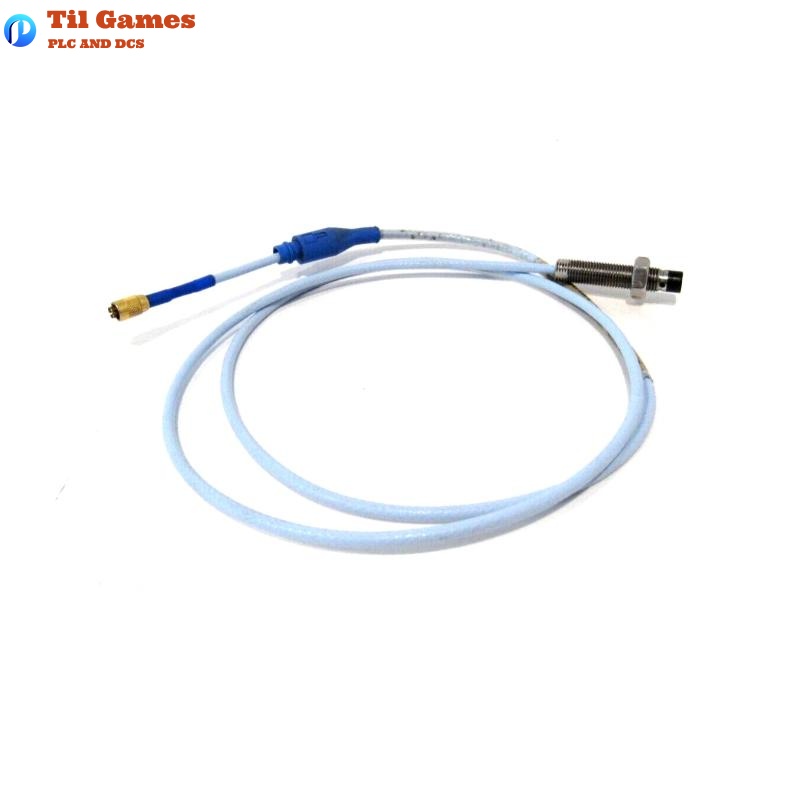

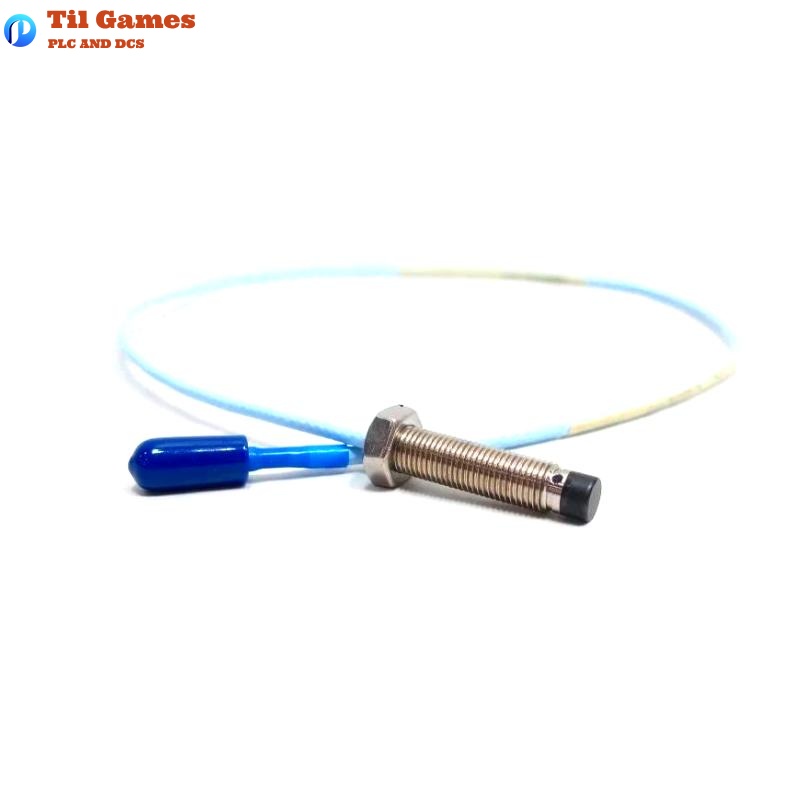

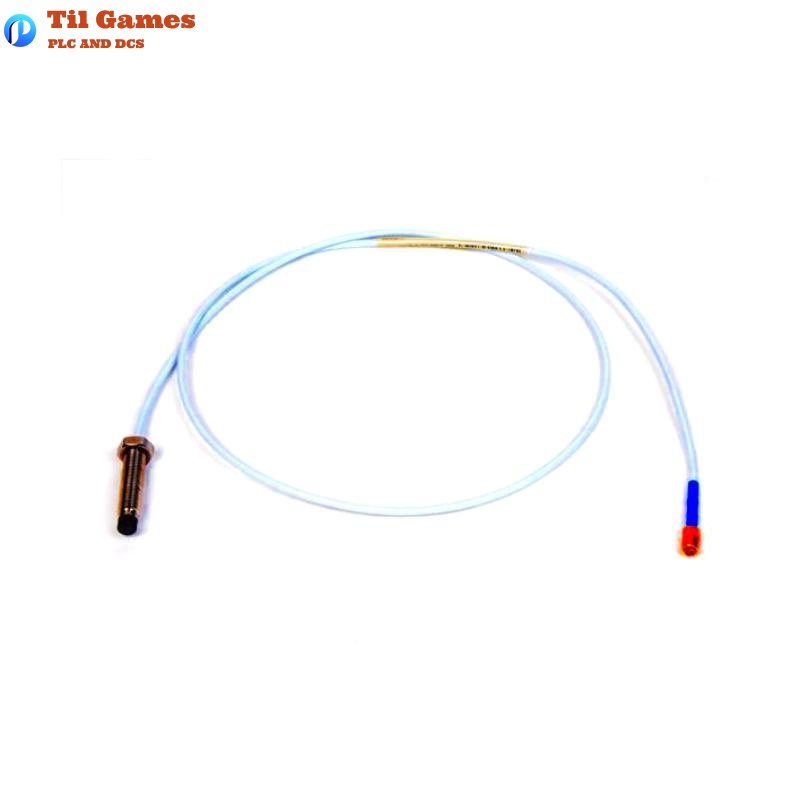

| Model | Bently Nevada 330101-00-67-10-12-CN 3300 XL 8 mm Proximity Probe |
| Probe Tip Diameter | 8.0 mm |
| Probe Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | Stainless Steel AISI 303 or 304 |
| Connector Type | Miniature coaxial ClickLoc, gold-plated |
| Cable Type | 75 Ω triaxial, Fluoroethylene Propylene (FEP) |
| Standard Cable Length Options | 0.5 m, 1.0 m, 1.5 m, 2.0 m, 3.0 m, 5.0 m, 9.0 m |
| Operating Temperature (Probe) | -52°C to +177°C |
| Operating Temperature (Cable) | -52°C to +177°C (FEP), up to +260°C (PFA for ETR models) |
| Frequency Response | 0 to 10 kHz (+0, -3 dB) with up to 305 m of field wiring |
| Linear Range | 2 mm (80 mils), from 0.25 mm to 2.3 mm |
| Incremental Scale Factor (ISF) | 7.87 V/mm (200 mV/mil) ±5% (standard) / ±6.5% (9 m) |
| Deviation from Best Fit Line | ±0.025 mm (1 m, 5 m) / ±0.038 mm (9 m) |
| Power Requirements | -17.5 Vdc to -26 Vdc, 12 mA max |
| Output Resistance | 50 Ω |
| Pressure Seal | Viton® O-ring seal |
| Minimum Target Diameter | 15.2 mm (0.6 in), recommended: ≥76.2 mm (3 in) |
| Torque Rating | Max 33.9 N·m (300 in·lbf); Recommended 11.2 N·m (100 in·lbf) |
| Probe Tensile Strength | 330 N (75 lbf) probe case to cable |
| Connector Torque (Max) | 0.565 N·m (5 in·lbf) |
| Environmental Sealing | Optional connector protectors, FluidLoc cable available |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
FAQ
FAQ
Q1: Does the 330101-00-67-10-12-CN probe support high-temperature applications?
A1: Yes, the standard model supports up to +177°C. ETR variants can withstand up to +218°C at the probe tip.
Q2: Is this probe compliant with API 670 standards?
A2: Yes, the standard 5-meter system meets API 670 requirements for mechanical design, linear range, accuracy, and temperature stability.
Q3: Can this model be used with non-XL 3300 series components?
A3: Yes, but overall system performance will be limited by the non-XL component’s specifications.
Q4: What are the primary applications of this probe?
A4: It is primarily used for vibration and position monitoring on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
Q5: Are special tools needed for connector installation?
A5: No, the ClickLoc connectors can be installed by hand and provide a secure “click” lock without tools.
Q6: Is the probe resistant to oil or fluid ingress?
A6: Yes, the optional FluidLoc cable design prevents oil and fluids from leaking through the cable.
Q7: How is signal degradation managed in high-frequency conditions?
A7: Use recommended cable lengths and shielding. Refer to frequency response graphs to adjust wiring for high-frequency applications.
Q8: What is the recommended installation torque for the probe?
A8: The recommended torque is 11.2 N·m (100 in·lbf), not to exceed 33.9 N·m (300 in·lbf).
