Technical Specifications
| Parameter | Specification |
|---|---|

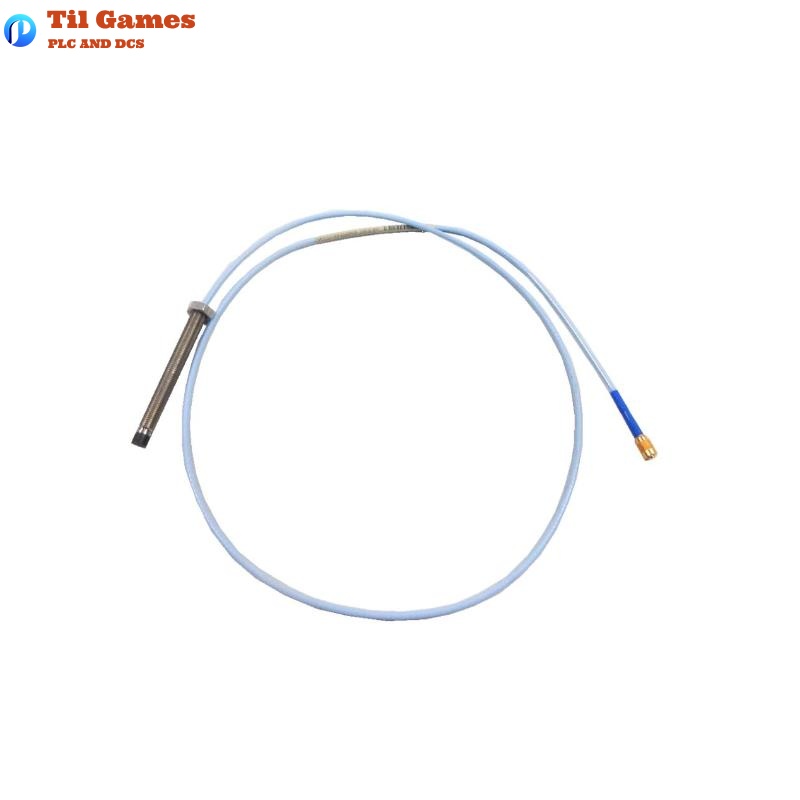

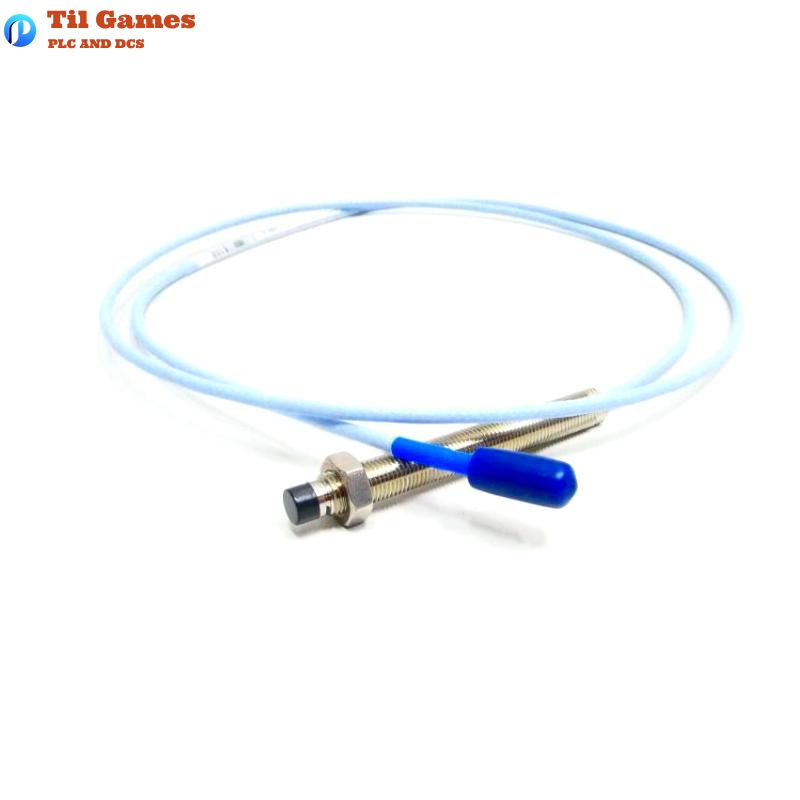

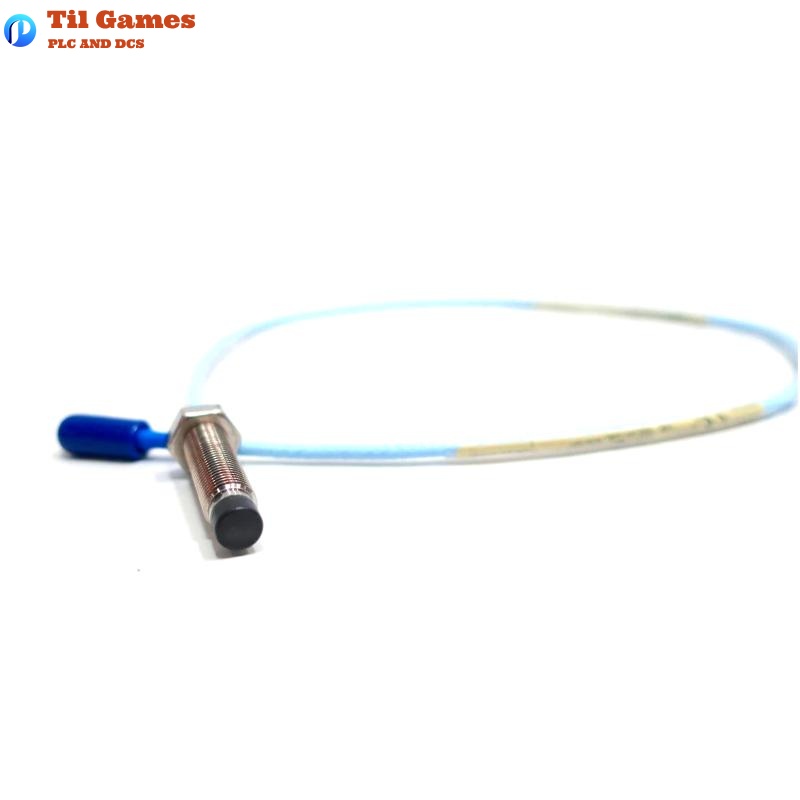

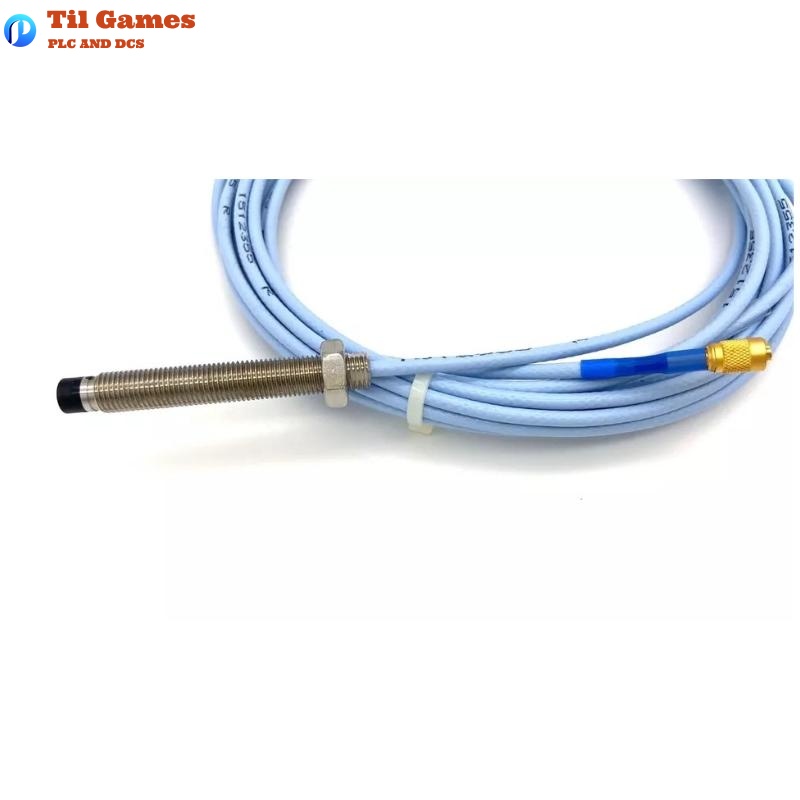

| Model | Bently Nevada 330101-00-75-10-02-00 3300 XL 8 mm Proximity Probe |
| System Length | 1.0 meter |
| Total Weight | 0.323 kg |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Probe Case Material | AISI 303 or 304 Stainless Steel |
| Cable Type | 75Ω triaxial, FEP insulated (standard) |
| Connector Type | ClickLoc miniature coaxial connector, gold-plated |
| Linear Range | 2 mm (80 mils), -1 to -17 Vdc |
| Incremental Scale Factor (ISF) | 7.87 V/mm ± 5% (Standard 1 m system) |
| Deviation from Best Fit Line | ±0.025 mm (±1 mil) at 0°C to +45°C |
| Recommended Gap Voltage | -9 Vdc ≈ 1.27 mm (50 mils) |
| Frequency Response | 0 to 10 kHz, +0/-3 dB |
| Minimum Shaft Diameter | 50.8 mm (2 in) |
| Recommended Shaft Diameter | ≥76.2 mm (3 in) |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in) |
| Operating Temperature (Probe) | -52°C to +177°C |
| Operating Temperature (Cable) | -52°C to +177°C |
| Operating Temperature (Sensor) | -52°C to +100°C |
| Storage Temperature (Sensor) | -52°C to +105°C |
| Relative Humidity Resistance | <3% ASF change at 93% RH per IEC 68-2-3 (56 days) |
| Pressure Seal | Viton® O-ring |
| Field Wiring Recommendation | 0.2 to 1.5 mm², shielded triad cable, max 305 m length |
| Compliance | API 670, CE, FCC, SIL 2/3, ATEX, IECEx, RoHS |
FAQ
FAQ
Q1: Is this proximity probe compatible with older systems?
A1: Yes, the 3300 XL 8 mm system is both electrically and physically compatible with non-XL 3300 5 mm and 8 mm systems.
Q2: Can this product operate in high-temperature environments?
A2: The standard probe supports up to +177°C. For higher temperatures, an Extended Temperature Range (ETR) probe and cable are available.
Q3: What is the recommended gap setting?
A3: The recommended gap voltage is -9 Vdc, corresponding to a physical gap of approximately 1.27 mm (50 mils).
Q4: What are the typical applications for this probe?
A4: It is typically used for vibration and position measurements on fluid-film bearing machines, and for Keyphasor and speed monitoring.
Q5: What components are included in a 1-meter system?
A5: A 1-meter system includes the probe and Proximitor sensor only; it does not use an extension cable.
Q6: Is field calibration required?
A6: No. The system components are fully interchangeable and do not require individual calibration.
Q7: Can the probe be used for overspeed protection applications?
A7: Yes.
Q8: How is the pressure sealing of the probe achieved?
A8: The probe uses a Viton® O-ring to seal the pressure between the probe tip and case
