Technical Specifications
| Parameter | Description |
|---|---|

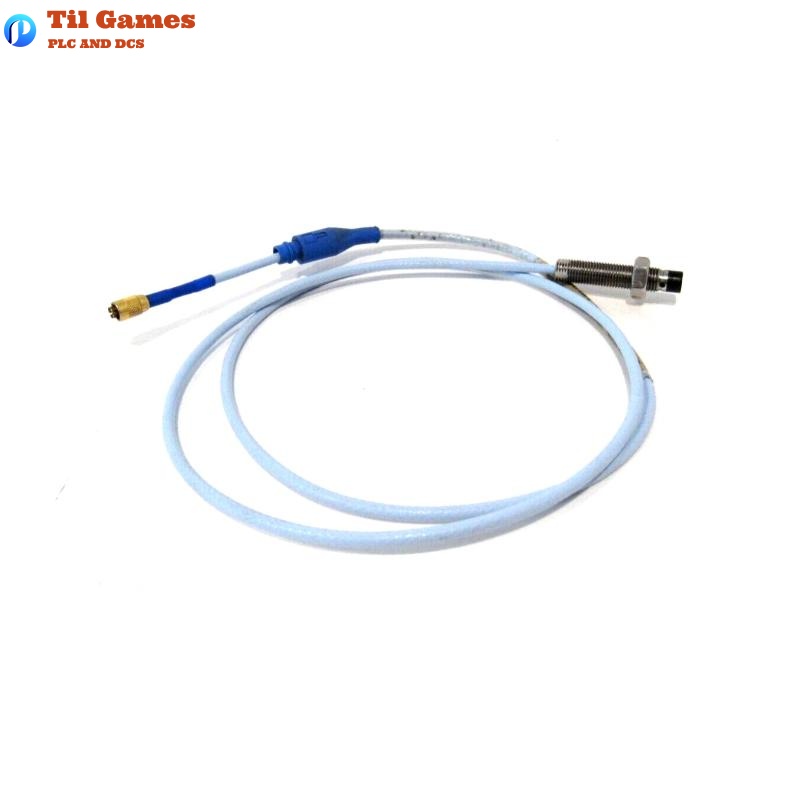

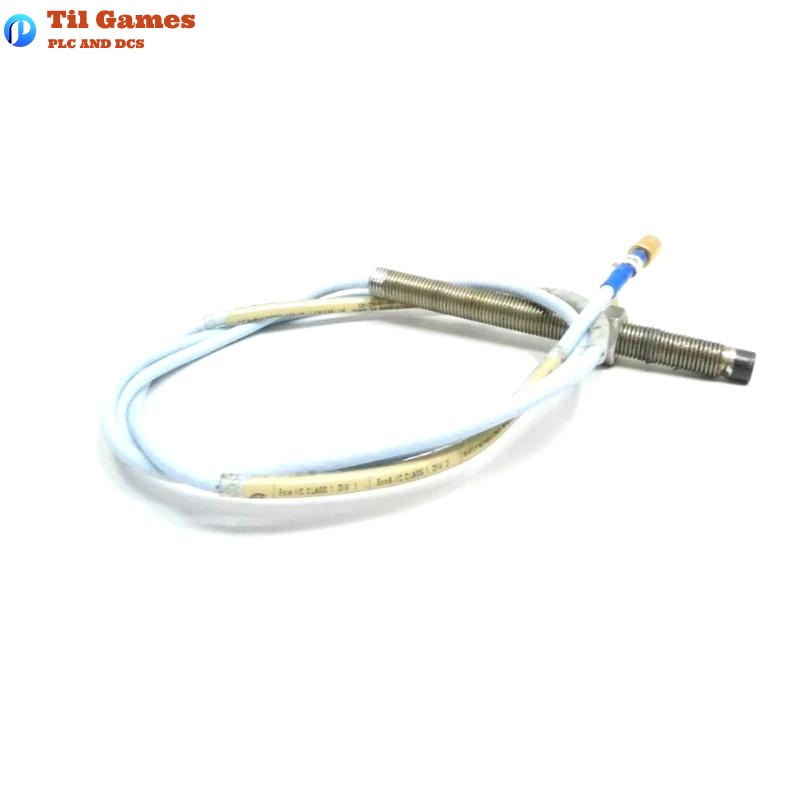

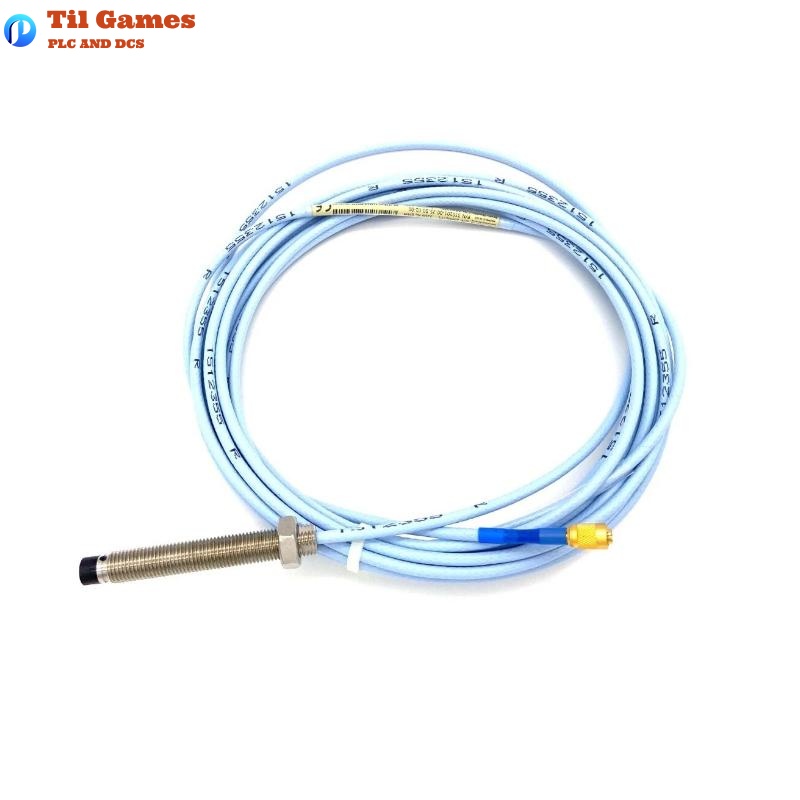

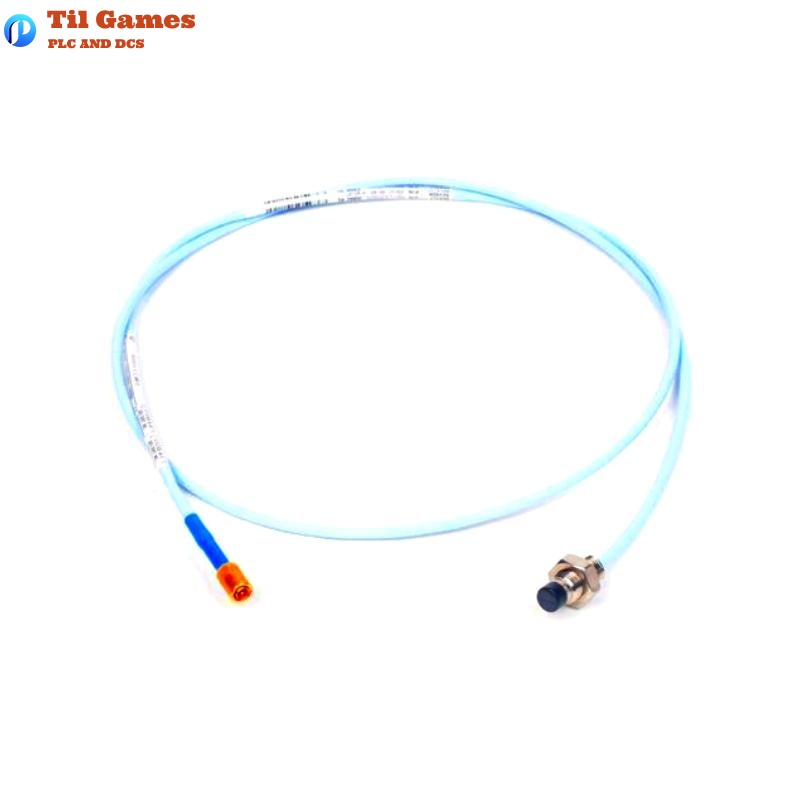

| Product Model | Bently Nevada 330101-00-75-15-02-05 |
| Probe Type | 3300 XL 8 mm Proximity Probe |
| Measurement Range | 2 mm (80 mils), linear from 0.25 mm to 2.3 mm |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) ± 5% (1.5 m system) |
| Recommended Gap | -9 VDC (approx. 1.27 mm or 50 mils) |
| Frequency Response | 0 to 10 kHz, +0/-3 dB |
| Minimum Target Size | 15.2 mm (0.6 in) diameter flat target |
| Minimum Shaft Diameter | 50.8 mm (2 in); Recommended: ≥76.2 mm (3 in) |
| Operating Temp (Probe) | -52°C to +177°C |
| Operating Temp (Cable) | -52°C to +177°C |
| Humidity Resistance | <3% deviation under 93% RH for 56 days |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303/304 Stainless Steel |
| Cable Type | 75Ω triaxial FEP insulated |
| Connector Type | Miniature coaxial ClickLoc, gold-plated |
| Max Tensile Strength | 330 N (probe to lead), 270 N (lead to cable) |
| System Voltage | -17.5 Vdc to -26 Vdc |
| Output Resistance | 50 Ω |
| Probe Resistance (1.5 m) | 7.73 ± 0.50 Ω |
| Cable Capacitance | 69.9 pF/m |
| Minimum Cable Bend Radius | 25.4 mm (1 in) |
| Total Length | 1.5 meters |
| Total Weight | 0.485 kg (1.07 lbs) |
FAQ
FAQ
Q1: What type of measurements can this probe system perform?
A1: It measures both static (e.g., shaft position) and dynamic (e.g., shaft vibration) parameters.
Q2: What is the recommended gap setting for this probe?
A2: The recommended gap setting is 1.27 mm (50 mils), corresponding to approximately -9 VDC output.
Q3: What is the minimum shaft diameter it supports?
A3: Minimum shaft diameter is 50.8 mm (2 in); recommended minimum is 76.2 mm (3 in) to minimize cross-talk.
Q4: Does this product comply with API 670?
A4: Yes, the 3300 XL 8 mm system complies fully with API 670 for linear range, mechanical construction, accuracy, and thermal stability.
Q5: Can it be mixed with non-XL 3300 components?
A5: Yes, but performance will be limited to that of the non-XL system.
Q6: Does the probe and cable resist electromagnetic interference?
A6: Yes, both probe and Proximitor sensor have strong RFI/EMI immunity and are CE certified.
Q7: Are any special tools required for installation?
A7: No special tools are needed. The ClickLoc connectors secure with finger-tight torque and click into place.
Q8: What is the total length and weight of this model?
A8: The total length is 1.5 meters, and the total weight is approximately 0.485 kg.
